To phase lock to an external clock signal

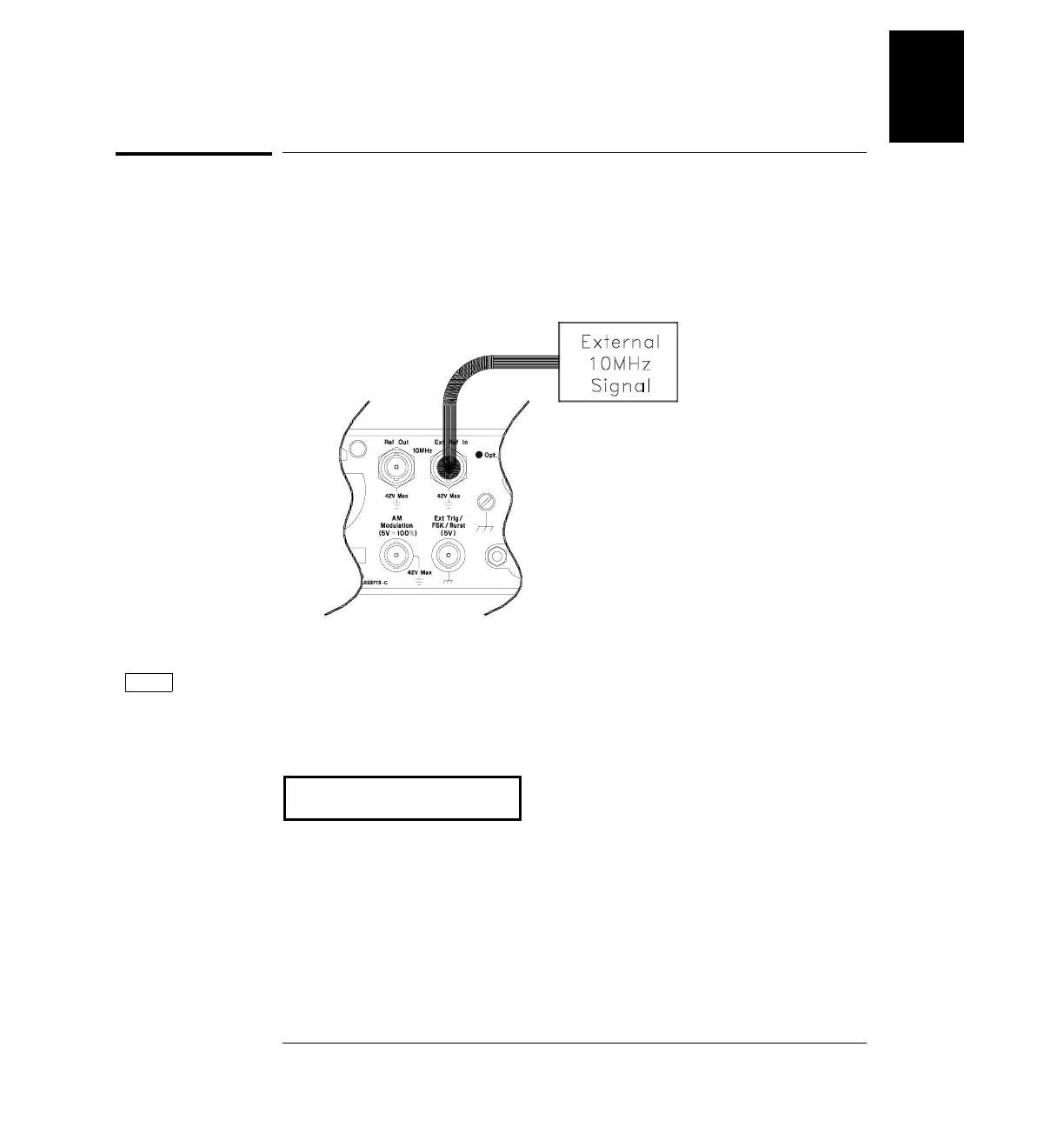

The rear-panel Ext Ref In terminal allows you to synchronize one or
more function generators with an external 10 MHz signal. The following
steps show you how to configure a single instrument for synchronization
with an external signal.
1 Select the function and set the output frequency to 10 MHz.
You must select either sine or square wave since the other output
waveforms cannot be used up to 10 MHz.
10.000,000 MHz
To adjust the phase offset, you will use the front-panel menu as described
on the following page.
Freq
1
Chapter 1 Quick Start
To phase lock to an external clock signal
5

Other manuals for HP 33120A

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP 33120A and is the answer not in the manual?

HP 33120A Specifications

General IconGeneral
Frequency Range100 µHz to 15 MHz
WaveformsSine, Square, Triangle, Ramp, Arbitrary
Amplitude Range10 mVpp to 10 Vpp into 50 Ohms
Output Impedance50 Ohms
InterfaceGPIB
Function Generator TypeArbitrary
Power Requirements100/120/220/240 VAC ±10%, 50/60 Hz, 60 VA max
