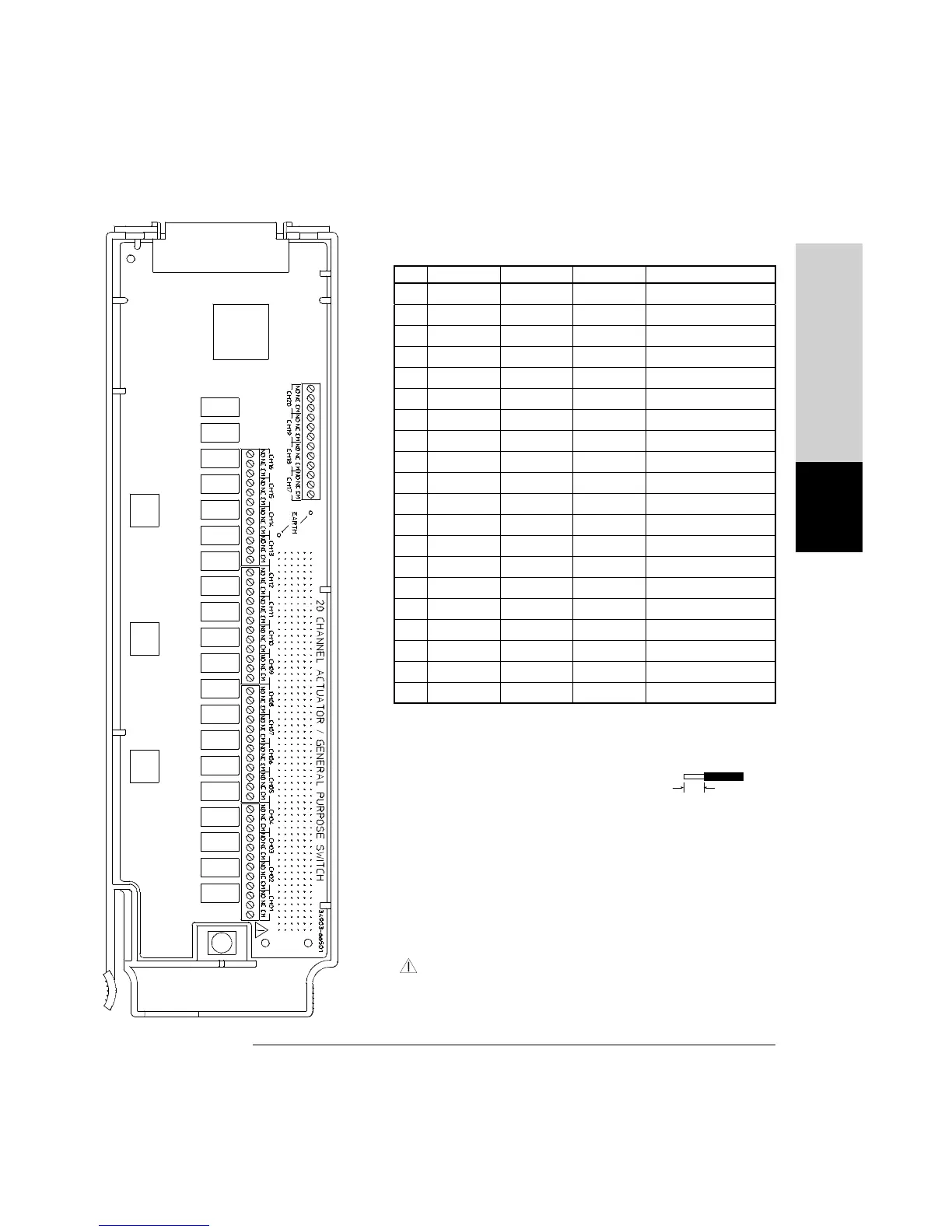

Module Reference
WIRING LOG Slot Number: ❒ 100 ❒ 200 ❒ 300
Ch NO NC COM Comments
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
NO = Normally Open, NC = Normally Closed
Refer to the diagrams on page 20 to connect wiring to the module.
Maximum Input Voltage: 300 V (CAT I)
Maximum Input Current: 1 A
Maximum Switching Power: 50 W
WARNING:
To prevent electrical shock, use only wire
that is rated for the highest voltage applied to any channel.
Before removing a module cover, turn off all power to external
devices connected to the module.
6 mm
20 AWG Typical
4
Chapter 4 Features and Functions
HP 34903A 20-Channel Actuator
169
