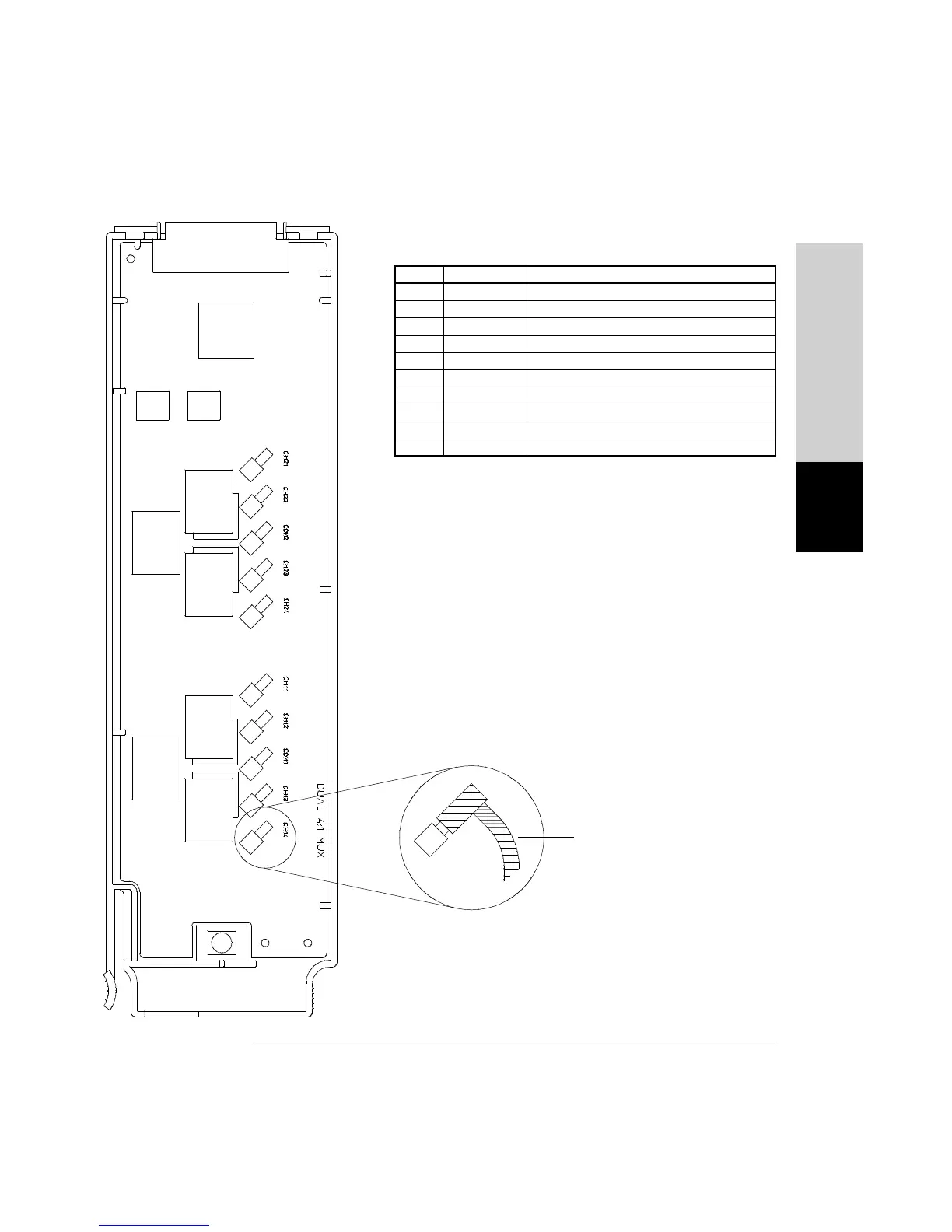

Module Reference
WIRING LOG Slot Number: ❒ 100 ❒ 200 ❒ 300
Ch Name Comments
11
12
13
14
COM1
21
22
23
24
COM2
Refer to the diagrams on page 20 to connect wiring to the module.
Maximum Input Voltage: 42 V
Maximum Input Current: 700 mA
Maximum Switching Power: 20 W
SMB-to-BNC Cable
Ten cables are included with the module. To order additional cables,
use the following cable kit part numbers (10 cables are included):
34905-60001 (50
Ω cables)
34906-60001 (75
Ω cables)
4
Chapter 4 Features and Functions
HP 34905A/6A Dual 4-Channel RF Multiplexers
173
