HP 34970A User Manual

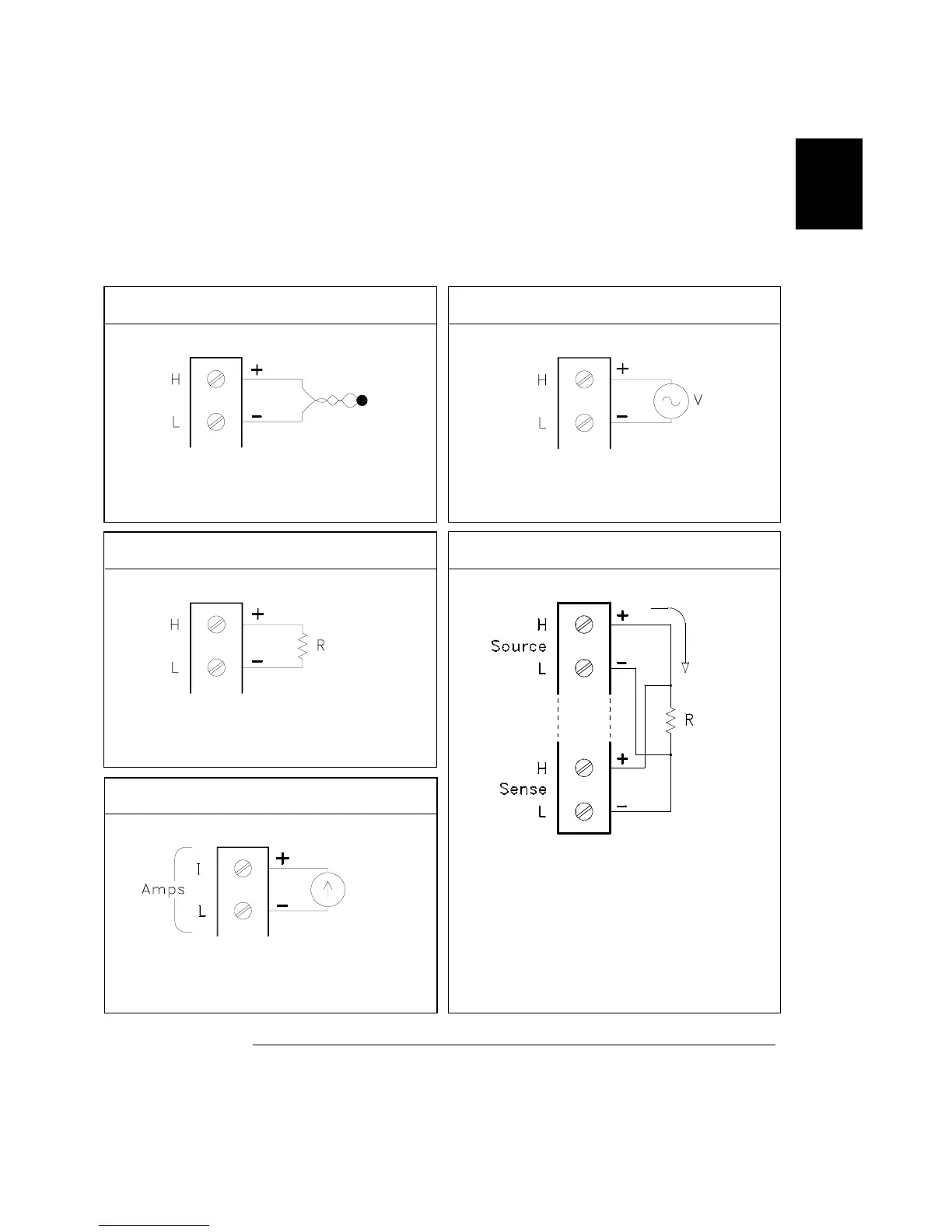

DC Voltage / AC Voltage / Frequency
Thermocouple
Thermocouple Types: B, E, J, K, N, R, S, T
See page 351 for thermocouple color codes.
Ranges: 100 mV, 1 V, 10 V, 100 V, 300 V
4-Wire Ohms / RTD
2-Wire Ohms / RTD / Thermistor
Ranges: 100, 1 k, 10 k, 100 k, 1 M, 10 M, 100 MΩ
RTD Types: 0.00385, 0.00391
Thermistor Types: 2.2 k, 5 k, 10 k
Channel
n (source) is automatically paired with
Channel
n+10 (sense) on the HP 34901A or
Channel
n+8 (sense) on the HP 34902A.
Ranges: 100, 1 k, 10 k, 100 k, 1 M, 10 M, 100 MΩ
RTD Types: 0.00385, 0.00391
DC Current / AC Current
Valid only on channels 21 and 22 on the HP 34901A.
Ranges: 10 mA, 100 mA, 1A
1
Chapter 1 Quick Start
To Connect Wiring to a Module
21
