Combining Matrices

You can combine two or more matrix switches to provide more complex

switching. For example, the HP 34904A provides a 4-row by 8-column

matrix. You can combine two of these modules as either a 4-row by

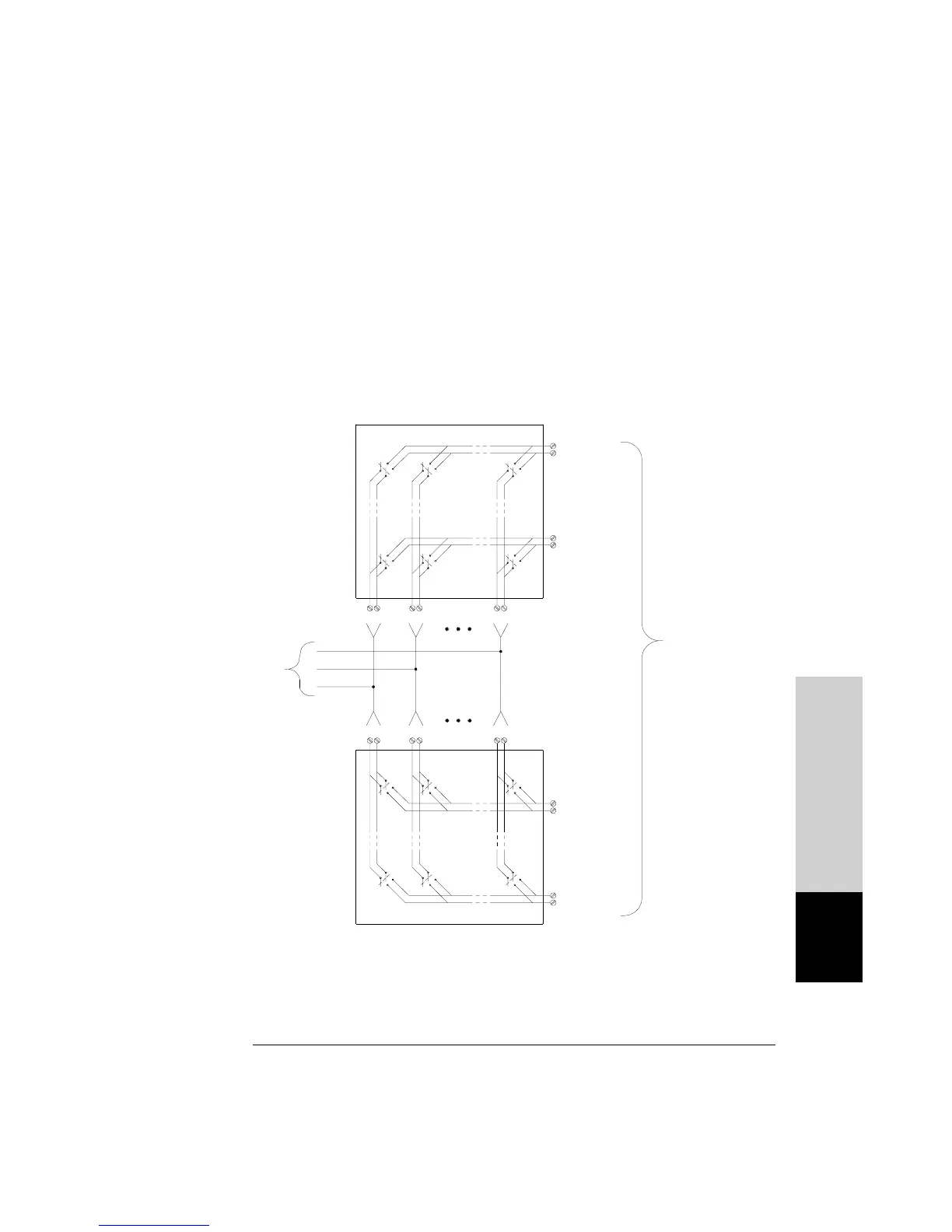

16-column matrix or an 8-row by 8-column matrix. An 8x8 matrix is

shown below.

8 Rows

8 Columns

Row 1

Row 4

Matrix Module 1

Col 1 Col 8

Row 1

Row 4

Matrix Module 2

Col 1

Col 8

Module Reference

Chapter 8 Tutorial

Matrix Switching

389

HP 34970A User Manual
