Voltage (DAC) Output The multifunction module has two analog
outputs capable of outputting calibrated voltages between
±12 volts with
16 bits of resolution. Each
DAC (Digital-to-Analog Converter) channel can
be used as a programmable voltage source for analog input control of

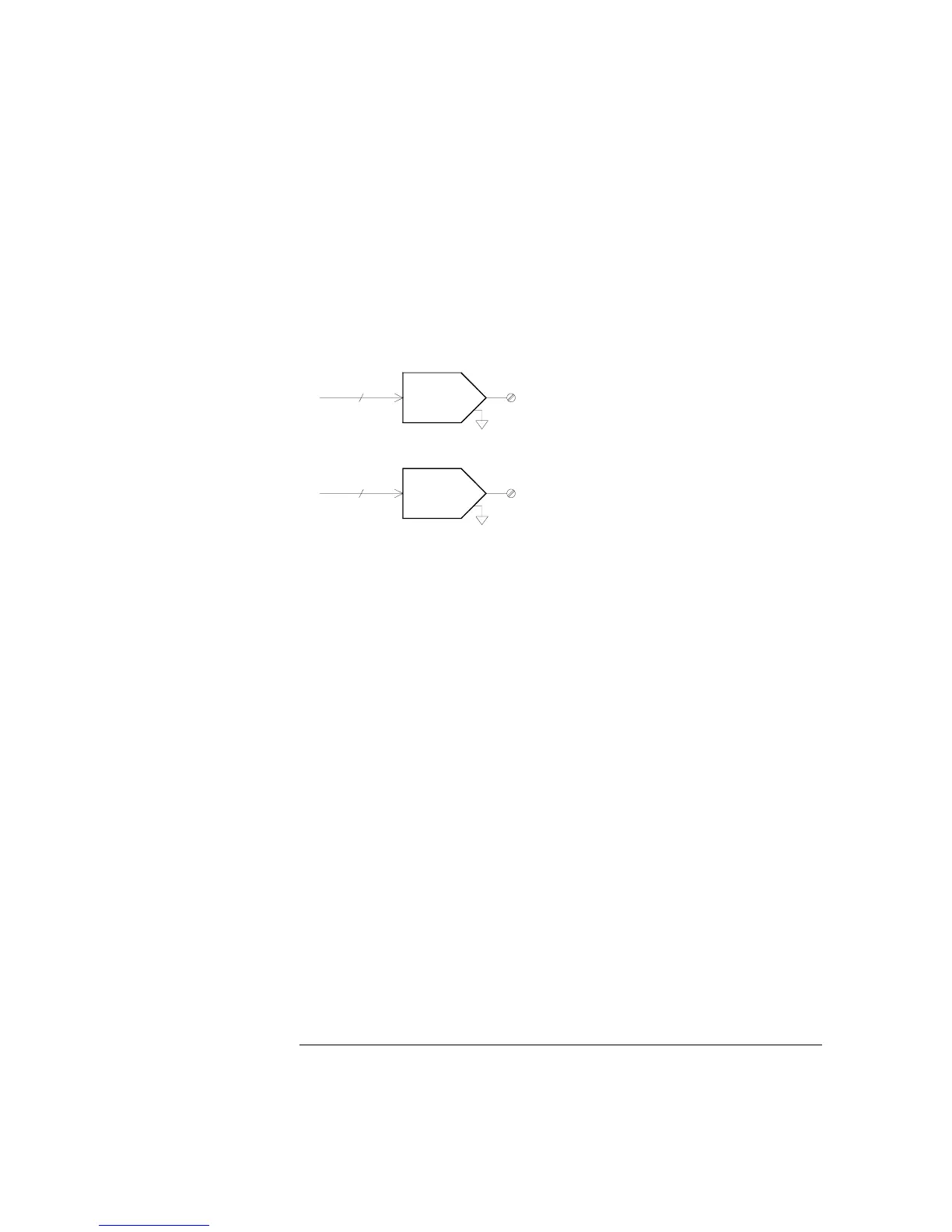

other devices. A simplified diagram is shown below.
• You can set the output voltage to any value between +12 Vdc and
-12 Vdc, in 1 mV steps. Each
DAC is earth referenced, it cannot float.
• Each
DAC channel is capable of supplying 10 mA maximum current.
Note: You must limit the output current to 40 mA total for all three
slots (six DAC channels).
DAC 1
16
Channel 04
16
DAC 2
Channel 05
Chapter 3 System Overview
Control Output
68
