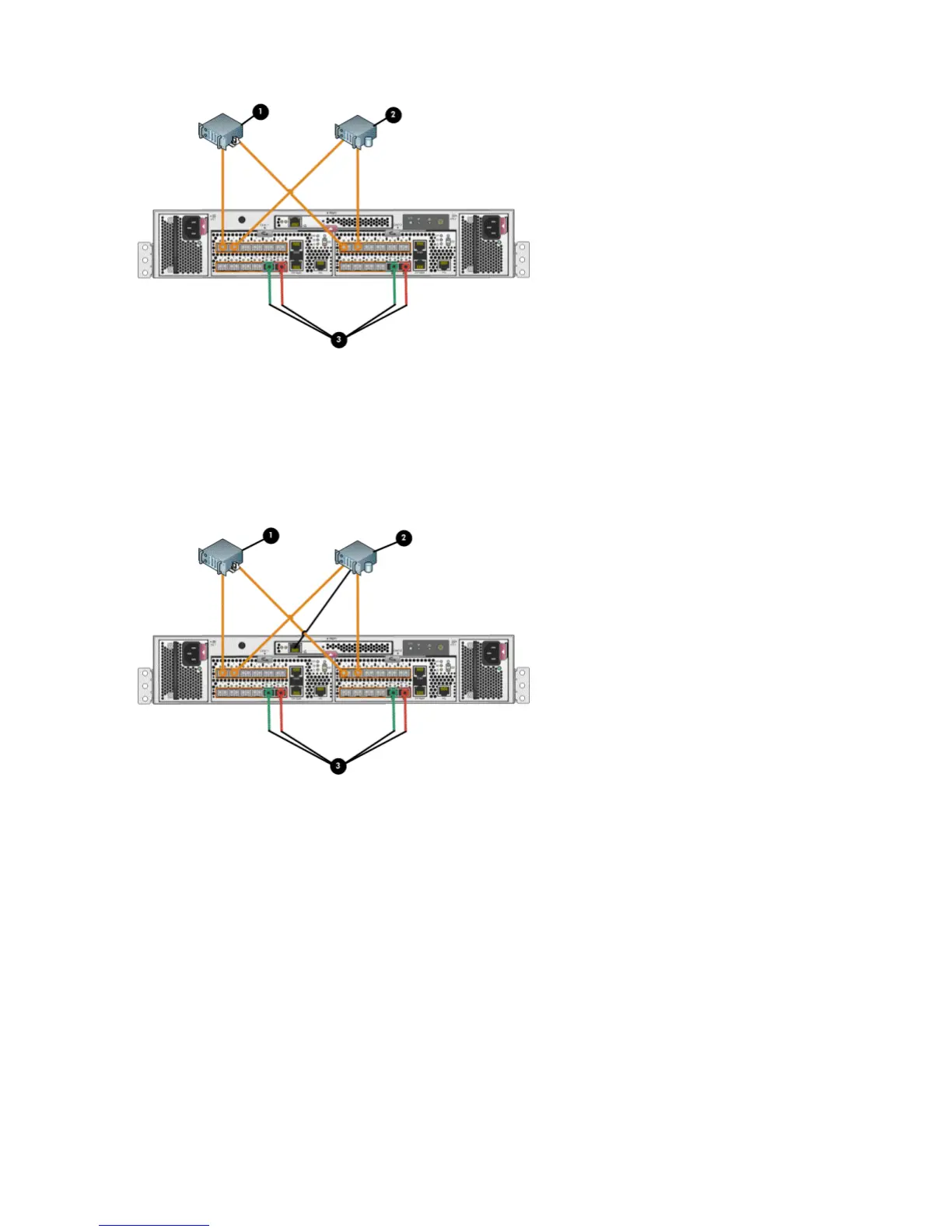

Figure 30 HSV300-S controller enclosure in an embedded Fibre Channel switch configuration with
server-based management
1. Management server
2. Database server
3. Indicates cabling connections to disk enclosures. See Figure 24 (page 36) and Figure 25 (page 37) for cabling
connections.
Figure 31 HSV300-S controller enclosure in an embedded Fibre Channel switch configuration with
array-based management
1. File server
2. Database server
3. Indicates cabling connections to disk enclosures. See Figure 24 (page 36) and Figure 25 (page 37) for cabling
connections.
40 EVA4400 cabling diagrams
