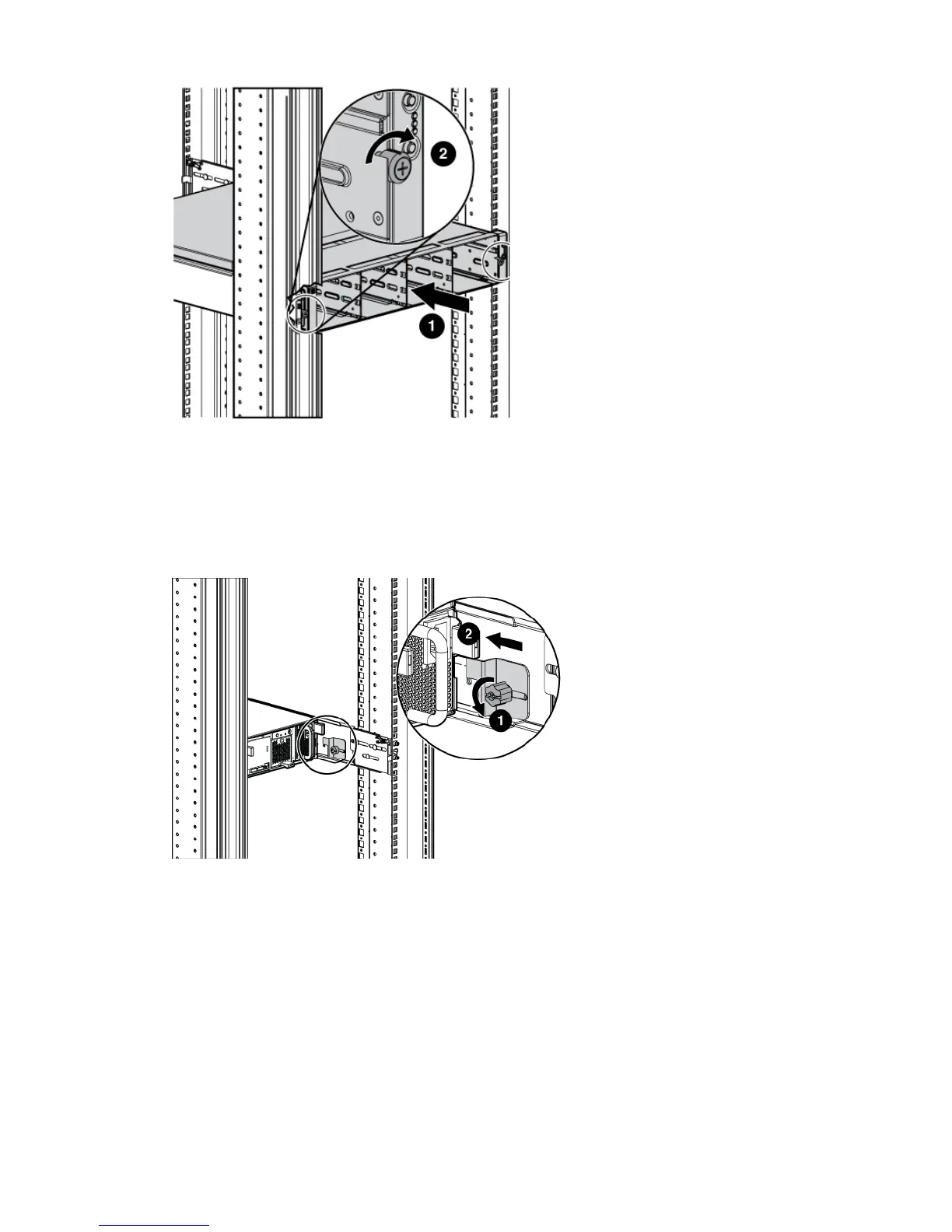

Figure 10 Securing the rear of the enclosure in the rack (view from front of rack)
4. Reattach the front bezel covers.
5. At the rear of the rack, loosen the thumbscrew on the shipping retaining bracket (1,
Figure 11 (page 16)) and slide the bracket forward (2) until the tab engages the slot in the
chassis. Tighten the thumbscrew on the bracket.
Figure 11 Securing the rear of the enclosure (view from rear of rack)
6. Repeat 1 through 5 to install the controller enclosures.
Installing the hard drives into the drive bays
After the disk enclosures are secured in the rack, install the hard drives into the drive bays. Drives
must be installed in the proper bay sequence (see Figure 12 (page 17)) in the enclosures for
optimum HP P6000 Command View performance and data integrity.
For example, if you have four enclosures, and eight drives, you should install four drives into bay
1 of each enclosure and four drives into bay 2 of each enclosure. Do not install all the drives into
enclosure 1 and leave the other enclosures empty.
16 Install components
