Model
5328A
General Information

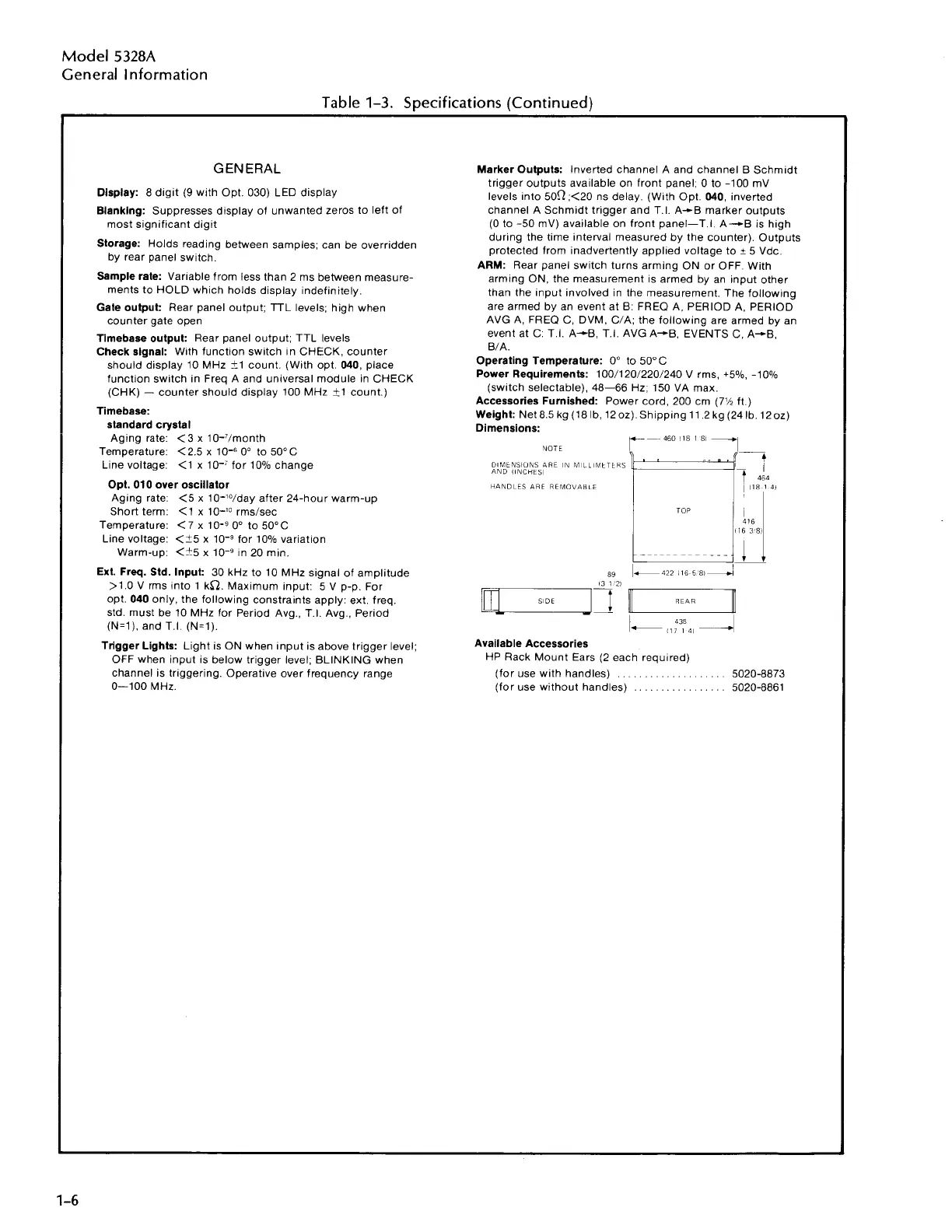

Table
1-3.
Specifications (Continued)
GENERAL
Display: 8 dlgit
(9
with Opt. 030) LED display
Blanking: Suppresses display of unwanted zeros to left of
most significant digit
Storage: Holds reading between samples; can be overridden
by rear panel switch.
Sample rate:
Varlable from less than 2 ms between measure-
ments to HOLD which holds display indefinitely.
Gate output: Rear panel output;
TTL levels; high when
counter gate open
Timebase output: Rear panel output; TTL levels
Check signal:
Wlth funct~on switch In CHECK, counter
should display 10 MHz +1 count. (W~th opt.
040,
place
funct~on swltch in Freq A and universal module in CHECK
(CHK)
-
counter should display 100 MHz ?1 count.)
Timebase:
standard crystal
Aglng rate: <3 x 10-'/month
Temperature: <2.5
x
0" to 50°C
Line voltage: <1
x
lo-'
for 10% change
Opt.
010
over oscillator
Aglng rate. <5
x
10-1°/day after 24-hour warm-up
Short term: <1
x
rms/sec
Temperature:
<
7 x 0" to 50°C
Line voltage: <15 x for 10%
variation
Warm-up: <?5 x In 20 min.
Ext. Freq. Std. Input: 30 kHz to 10 MHz signal of amplitude
>1.0
V
rms ~nto 1 ka. Maximum input: 5 V p-p. For
opt.
040
only, the following constraints apply: ext, freq.
std. must be 10 MHz for Period Avg., T.I. Avg., Period
(N=l), and T.I. (N=l).
Trigger Lights: Light is ON when Input is above trigger level;
OFF when input is below trigger level; BLINKING when
channel is
triggering.
Operative over frequency range
0-100 MHz.
Marker Outputs: Inverted channel A and channel B Schmidt
trigger outputs available on front panel; 0 to -100 mV
levels into 50R;<20 ns delay. (Wlth Opt.
040,
inverted
channel A Schmidt trigger and T.I. A-0.B marker outputs
(0 to -50 mV) available on front panel-T.I. A+B is high
during the time interval measured by the counter). Outputs
protected from inadvertently applled voltage to
+
5 Vdc.
ARM: Rear panel swltch turns arming ON or OFF. With
armtng ON, the measurement
IS
armed by an input other
than the Input involved in the measurement. The following
are armed by an event at B: FREQ A. PERIOD A, PERIOD
AVG A, FREQ C. DVM. C/A; the following are armed by an
event at C. T.I. A-B, T.I. AVG A+B. EVENTS C, A+B,
B/A.
Operating Temperature: 0" to 50" C
Power Requirements: 100/120/220/24O V rms, +5%, -1 0%
(swltch selectable), 48-66 Hz; 150 VA max.
Accessories Furnished: Power cord, 200 cm
(7% ft.)
Weight: Net8.5 kg (18
Ib, 12oz).Shipping 11.2 kg (24 Ib. 1202)
Dimensions:
--
460 118 181
--,I
~J~"
-
438
117
141
Available Accessories
HP Rack Mount Ears (2 each required)
(for use with handles)
.
. . . . . . . . . . . .
.
. .
.
. . .
5020-8873
(for use without handles)
. . . . . . . . .
.
. . . . . . .
5020-8861
