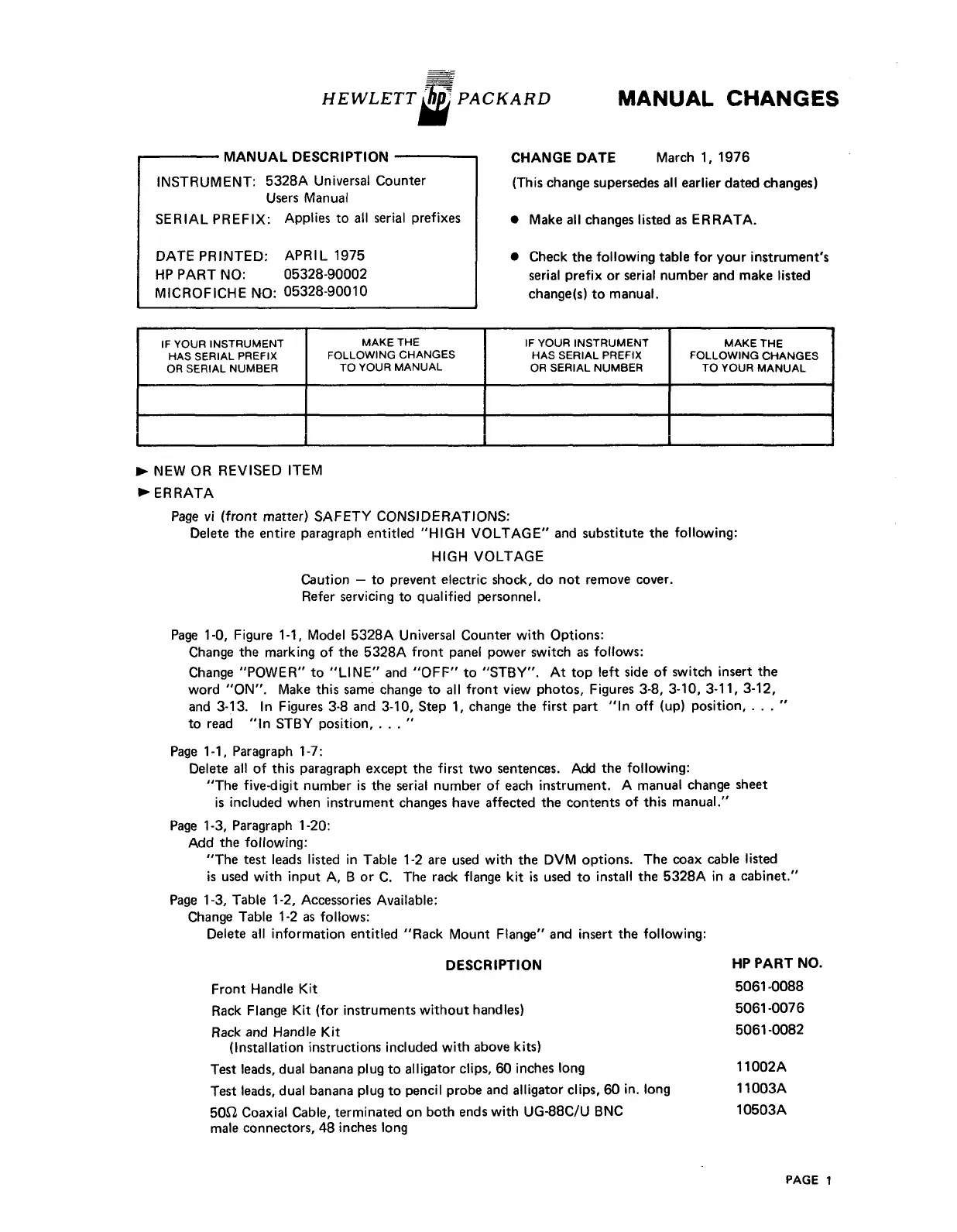

MANUAL DESCRIPTION
1
CHANGE DATE March 1, 1976
INSTRUMENT: 5328A Universal Counter
(This change supersedes all earlier dated changes)
Users Manual
SERIAL PREFIX: Applies to all serial prefixes
Make all changes listed as ERRATA.
DATE PRINTED: APRl
L
1975
HP PART NO: 05328-90002
MICROFICHE NO:
05328-90010
Check the following table for your instrument's
serial prefix or serial number and make listed
change(s) to manual.
-
-
--
--
F
NEW OR REVISED ITEM
b
ERRATA
Page vi (front matter) SAFETY CONSIDERATIONS:
Delete the entire paragraph entitled "HIGH VOLTAGE" and substitute the following:
HIGH VOLTAGE
Caution
-
to prevent electric shock, do not remove cover.
Refer servicing to qualified personnel.
IF YOUR INSTRUMENT
HAS SERIAL PREFIX
OR SERIAL NUMBER
Page 1-0, Figure 1-1, Model 5328A Universal Counter with Options:
Change the marking of the 5328A front panel power switch as follows:
Change "POWER" to "LINE" and "OFF" to "STBY". At top left side of switch insert the
word "ON". Make this same change to all front view photos, Figures 3-8, 3-10, 3-11, 3-12,
and 3-13.
In Figures 3-8 and 3-10, Step 1, change the first part "In off (up) position,
.
. .
"
to read
"In STBY position,
. .
.
"
Page 1-1, Paragraph 1-7:
Delete all of this paragraph except the first two sentences. Add the following:
"The five-digit number is the serial number of each instrument. A manual change sheet
is included when instrument changes have affected the contents of this manual."
Page 1-3, Paragraph 1-20:
Add the following:
"The test leads listed in Table 1-2 are used with the DVM options. The coax cable listed
is
used with input A, B or C. The rack flange kit
is
used to install the 5328A in a cabinet."
MAKE THE
FOLLOWING CHANGES
TO YOUR MANUAL
Page 1-3, Table 1-2, Accessories Available:
Change Table 1-2 as follows:
Delete all information entitled "Rack Mount Flange"
DESCRIPTION
Front Handle Kit
Rack Flange Kit (for instruments without handles)
Rack and Handle Kit
(Installation instructions included with above kits)
and insert the following:
IF YOUR INSTRUMENT
HAS SERIAL PREFIX
OR SERIAL NUMBER
Test leads, dual banana plug to alligator clips,
60
inches long
Test leads, dual banana plug to pencil probe and alligator clips,
60
in. long
50i2 Coaxial Cable, terminated on both ends with UG-88C/U BNC
male connectors,
48
inches long
MAKE THE
FOLLOWING CHANGES
TO YOUR MANUAL
-
HP PART NO.
5061 -0088
5061 -0076
5061 -0082
1 1002A
1 1003A
10503A
PAGE
1
