Product overview
The HP 6125 Blade Switch Series includes the models in Table 1:
Table 1 Models in the HP 6125 Blade Switch Series
HP descri
p
tion RMN
HP 6125G HSTNS-BC57-N
HP 6125G/XG HSTNS-BC58-N
IMPORTANT:
For regulatory identification purposes, the HP 6125 Blade Switch Series are assi
g
ned Re
g
ulatory Model
Numbers (RMN). These regulatory numbers should not be confused with the marketing name HP 6125.
Panel views

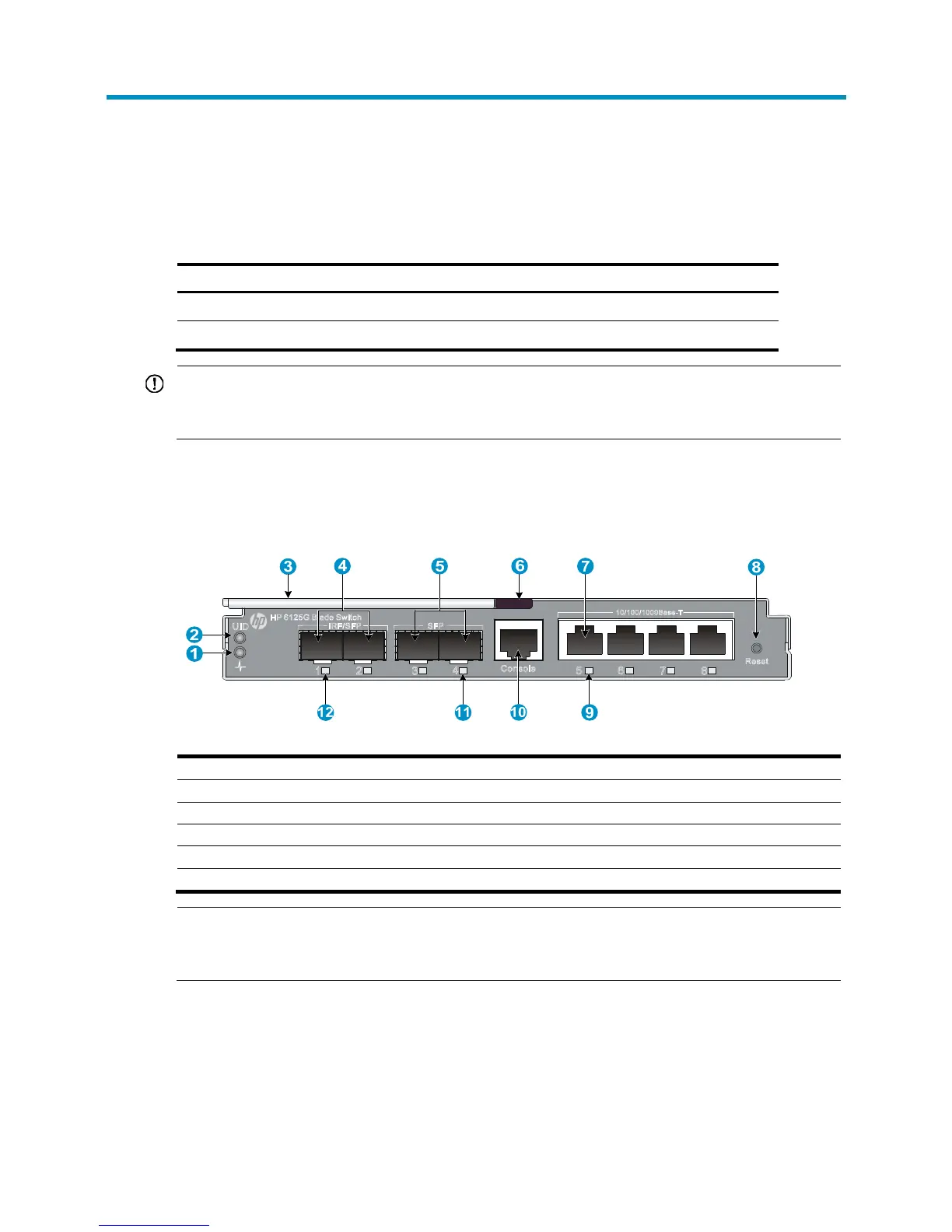

Figure 1 Front panel of the HP 6125G
(1) Health LED (2) Unit ID (UID) LED
(3) Ejector lever (4) IRF/SFP port
(5) SFP port (6) Release tab
(7) 10/100/1000Base-T auto-sensin
g
Ethernet port
(8) Reset button
(9) 10/100/1000Base-T auto-sensin
g
Ethernet port LED
(10) Console port
(11) SFP port LED (12) IRF/SFP port LED
NOTE:
The Reset button is recessed in the device. To push the Reset button, use a thin, elon
g
ated object, such as
a pencil.
