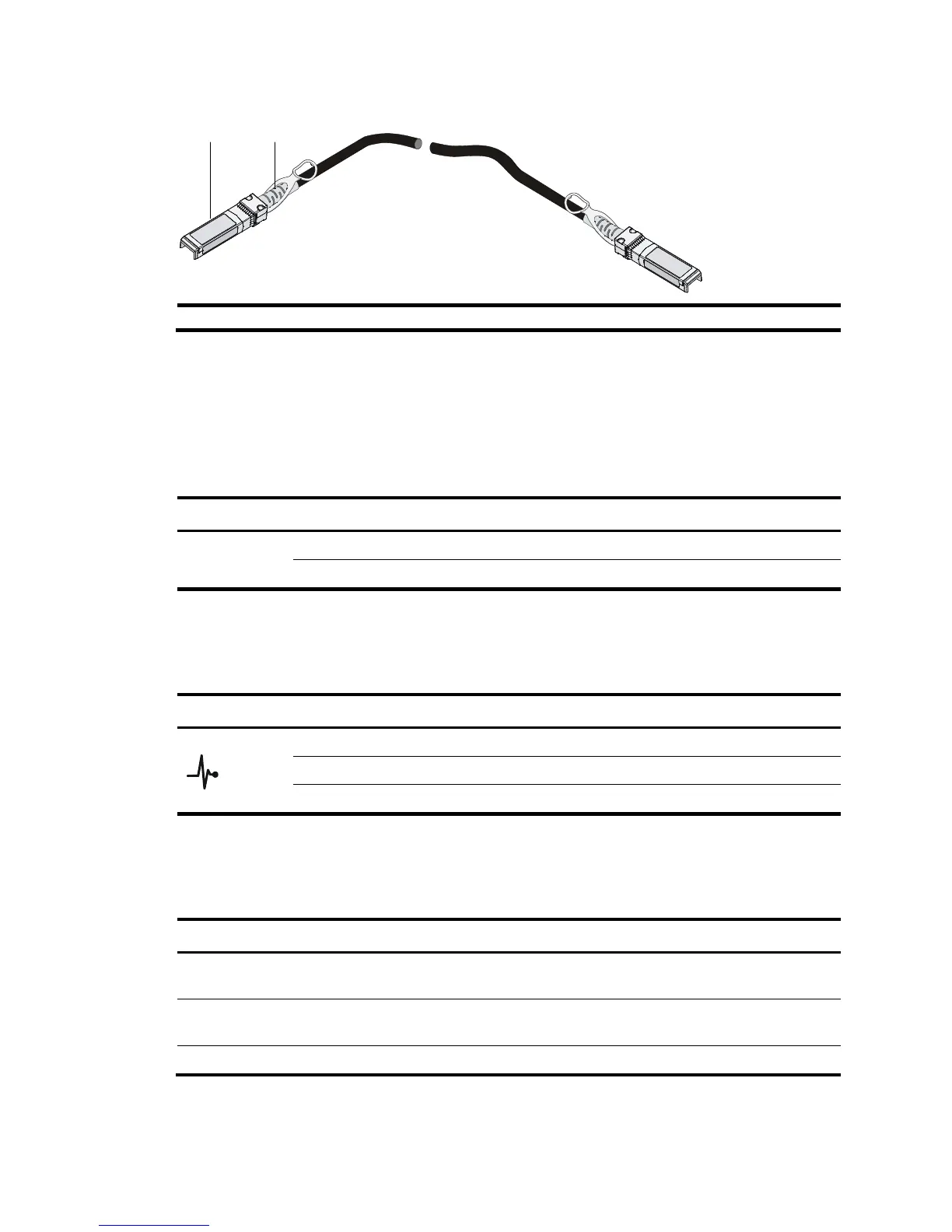

Figure 15 SFP+ cable
(1) Connector (2) Pull latch
LEDs
Unit ID LED
Table 11 Unit ID LED description
LED mark Status Description
UID
Blue Switch ID selected.
Off Switch ID not selected.
Health LED
Table 12 Health LED description
LED mark Status Description
Green The blade switch has started properly.
Flashing yellow The blade switch is performing POST, or is faulty.
Off The blade switch is not powered on, or is faulty.
10/100/1000Base-T Ethernet port LED
Table 13 10/100/1000Base-T auto-sensing Ethernet port LED description
Port LED status Description
Steady green
The port is operating at 1000 Mbps. The port LED fast flashes when the port is
sending or receiving data.
Steady yellow
The port is operating at 10/100 Mbps. The port LED fast flashes when the port is
sending or receiving data.
Off No link is present on the port.
