HP 8662A Service Manual

8662A Option H55
08662-92065
Page 2 of 3

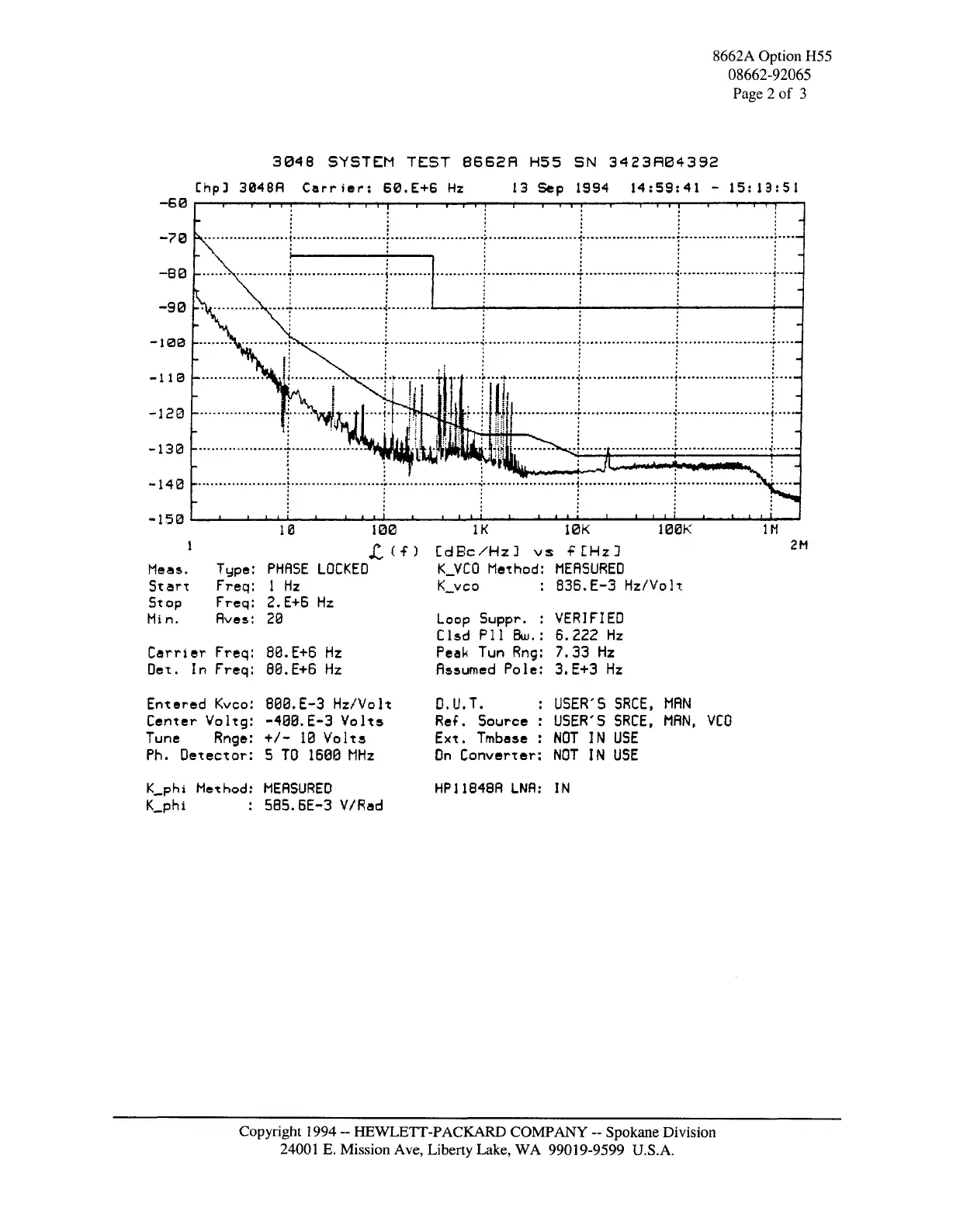

3046 SYSTEM TEST 8662R H55 SN 3423R04392
ChpD 3248R Carrier: 60.E+6 Hz 13 Sep 1994 14:59:41 - 15:13:51
-100
-150
Meas.
Start
Stop
Min.
Type:
Freq:
Freq:
Rves:
PHASE LOCKED
1 Hz
2.E+6 Hz
20
Carrier Freq: 80.E+6 Hz
Det. In Freq: 80.E+6 Hz
100 IK 10K
£ (-f ) CdBc/HzJ vs f EHzD
K_VC0 Method: MEASURED
K_yco : 836.E-3 Hz/Volt
Loop Suppr. : VERIFIED
Clsd Pll Bui.: 6.222 Hz
Peak Tun Rng: 7.33 Hz
Assumed Pole: 3.E+3 Hz
Entered Kvco: 800.E-3 Hz/Volt
Center Voltg: -408.E-3 Volts
Tune Rnge: +/- 10 Volts
Ph. Detector: 5 TO 1600 MHz
D.U.T. : USER'S SRCE, MAN
Ref. Source : USER'S SRCE, MAN, VCO
Ext. Tmbase : NOT IN USE
Dn Converter: NOT IN USE
K_
P
hi Method: MEASURED
K_phi : 585.6E-3 V/Rad
HP11848R LNfl: IN
Copyright 1994 - HEWLETT-PACKARD COMPANY - Spokane Division
24001 E. Mission Ave, Liberty Lake, WA 99019-9599 U.S.A.
