HP 8662A Service Manual

8662A Option H55
08662-92065
Page 3 of 3

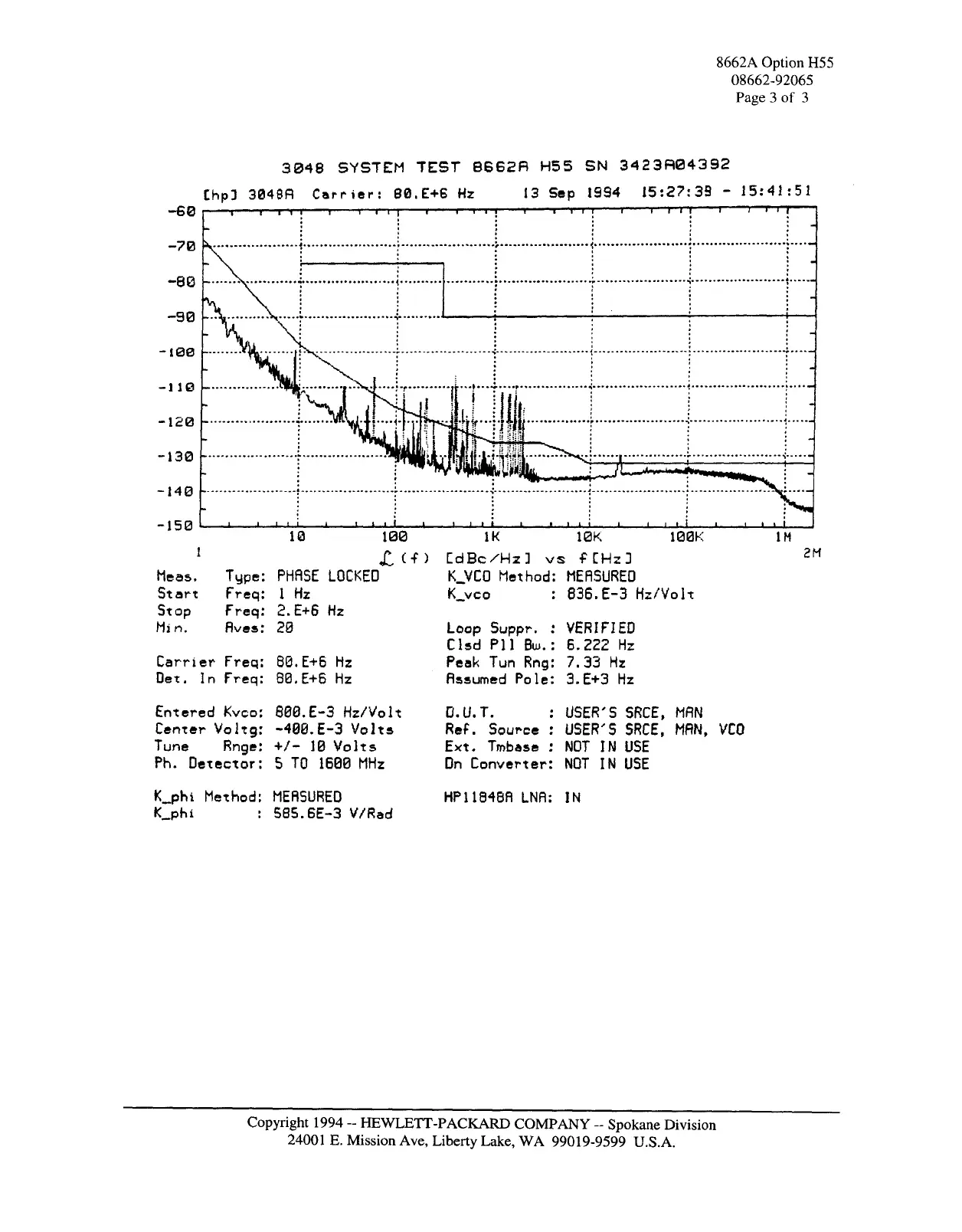

3048 SYSTEM TEST B662R H55 SN 3423R04392
Chp3 3048R Carrier: 80.E+G Hz 13 Sep 1994 15:27:39 - 15:41:51
-150
1
Meas.
Start
Stop
Mi n.
Type:
Freq:
Freq:
fives:
10 100
£<* >
PHASE LOCKED
1 Hz
2.E+6 Hz
28
Carrier Freq: 80.E+6 Hz
Det. In Freq: 80.E+6 Hz
Entered Kvco: 800.E-3 Hz/Volt
Center Voltg: -400.E-3 Volts
Tune Rnge: +/- 10 Volts
Ph. Detector: 5 TO 1600 MHz
K_phi Method: MEASURED
K_phi : 5B5.6E-3 V/Rad
IK 10K 100K
CdBc/Hz] vs fCHz3
K_VC0 Method: MEASURED
K_vco 836.E-3 Hz/Volt
2M
Loop Suppr. : VERIFIED
Clsd Pll But.: 6.222 Hz
Peak Tun Rng: 7.33 Hz
Assumed Pole: 3.E+3 Hz
D.U.T. : USER'S SRCE, MAN
Ref. Source : USER'S SRCE, MAN, VCO
Ext. Tmbase : NOT IN USE
Dn Converter: NOT IN USE
HP11848A LNA: IN
