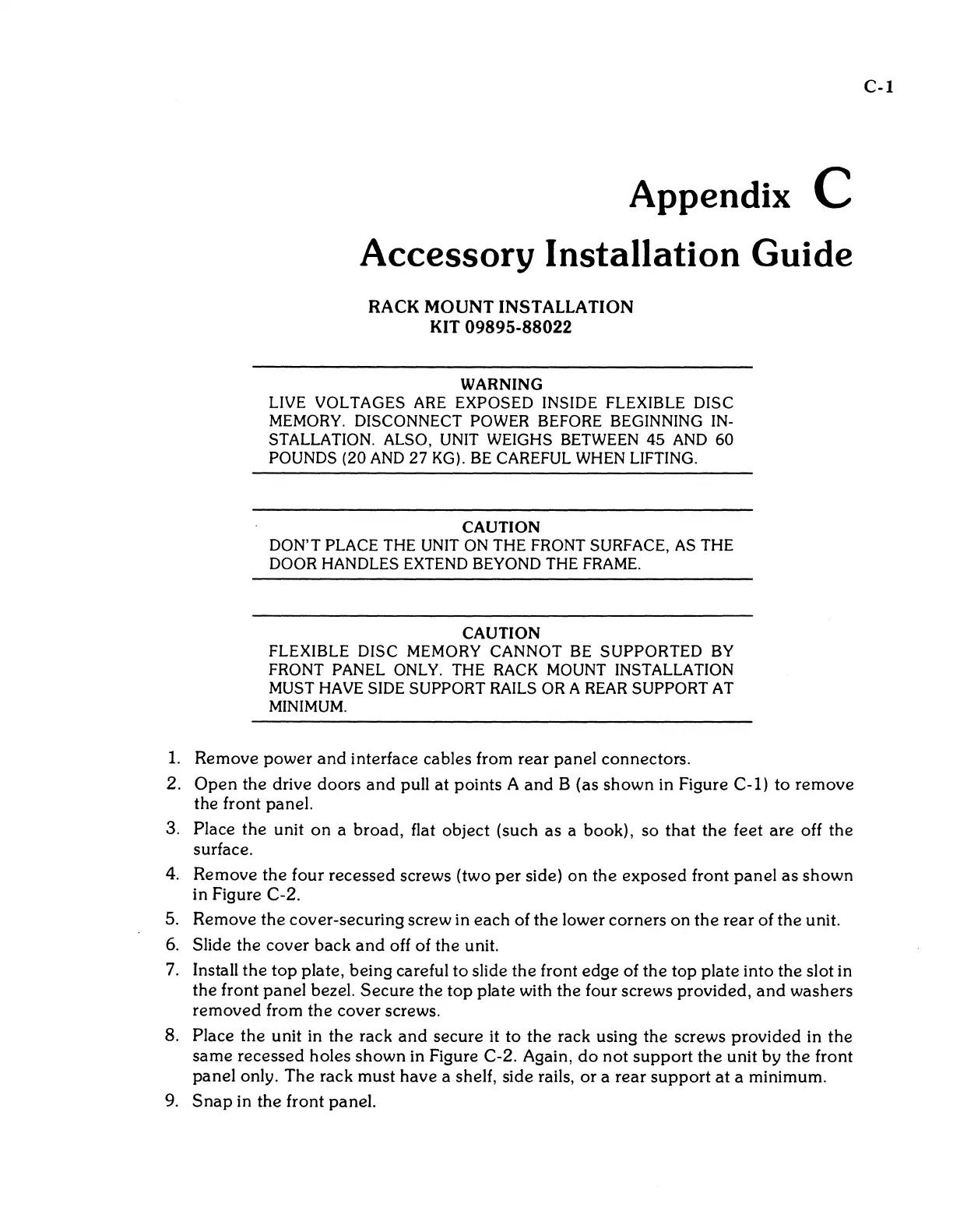

Appendix C
Accessory
Installation Guide
RACK MOUNT INSTALLATION
KIT 09895-88022
WARNING
LIVE
VOLTAGES
ARE
EXPOSED INSIDE FLEXIBLE DISC
MEMORY. DISCONNECT POWER BEFORE BEGINNING IN-
STALLATION.
ALSO, UNIT WEIGHS BETWEEN 45 AND 60
POUNDS (20
AND 27 KG).
BE
CAREFUL WHEN LIFTING.
CAUTION
DON'T
PLACE THE UNIT
ON
THE FRONT SURFACE,
AS
THE
DOOR HANDLES EXTEND BEYOND THE
FRAME.
CAUTION
FLEXIBLE DISC MEMORY CANNOT BE SUPPORTED
BY
FRONT PANEL ONLY. THE RACK MOUNT INSTALLATION
MUST HAVE SIDE SUPPORT RAILS
OR
A
REAR
SUPPORT AT
MINIMUM.
1.
Remove power
and
interface cables from rear panel connectors.
2.
Open
the drive doors
and
pull at points A
and
B (as shown in Figure C-1) to remove
the front panel.
3. Place the unit
on
a broad, flat object (such
as
a book), so that the feet are off the
surface.
4.
Remove the four recessed screws (two
per
side)
on
the exposed front panel as shown
in Figure C-2.
5. Remove the cover-securing screw in each of the lower corners on the rear of the unit.
6.
Slide the cover back
and
off of the unit.
7.
Install the top plate, being careful to slide the front edge of the top plate into the slot in
the front panel bezel.
Secure the top plate with the four screws provided,
and
washers
removed from the cover screws.
8. Place the unit in the rack
and
secure
it
to the rack using the screws provided in the
same recessed holes shown in Figure C-2. Again,
do
not support the unit by the front
panel only. The rack must have a shelf, side rails, or a rear support
at
a minimum.
9.
Snap
in the front panel.
C-l
