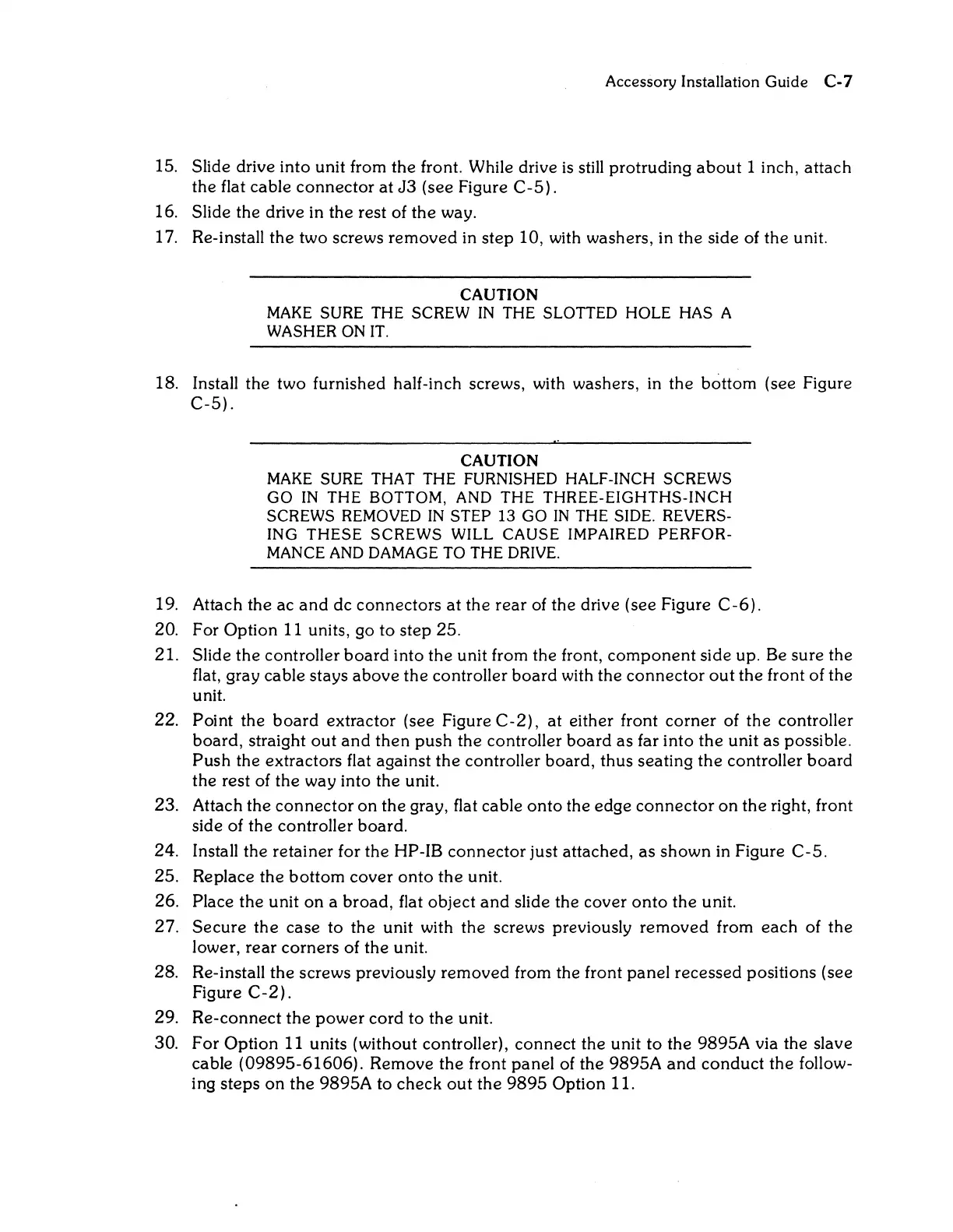

Accessory Installation Guide
C-7
IS. Slide drive into unit from the front. While drive
is
still protruding
about
1 inch,
attach
the flat cable
connector
at
J3
(see Figure
C-S).
16. Slide the drive in the rest of the way.
17. Re-install
the
two screws
removed
in
step
10, with washers, in
the
side of the unit.
CAUTION
MAKE
SURE
THE
SCREW
IN
THE
SLOTTED HOLE
HAS
A
WASHER
ON
IT.
18. Install the two furnished half-inch screws, with washers,
in
the
bottom
(see Figure
C-S).
CAUTION
MAKE
SURE THAT THE FURNISHED HALF-INCH SCREWS
GO
IN
THE BOTTOM,
AND
THE THREE-EIGHTHS-INCH
SCREWS
REMOVED
IN
STEP 13 GO
IN
THE SIDE. REVERS-
ING THESE SCREWS WILL
CAUSE IMPAIRED PERFOR-
MANCE
AND
DAMAGE
TO
THE
DRIVE.
19. Attach the ac
and
dc connectors
at
the
rear
of the drive (see Figure
C-6).
20. For Option 11 units, go
to
step 2S.
21.
Slide
the
controller
board
into
the
unit from the front,
component
side up. Be sure the
flat, gray cable stays
above
the
controller
board
with the
connector
out
the front of the
unit.
22. Point the
board
extractor (see Figure
C-2),
at
either front
corner
of
the
controller
board,
straight
out
and
then
push
the controller
board
as far into
the
unit as possible.
Push
the extractors flat against
the
controller board, thus seating
the
controller
board
the rest of the way into the unit.
23. Attach the
connector
on
the gray, flat cable
onto
the
edge
connector
on
the
right, front
side of the controller board.
24. Install the retainer for the HP-IB
connector
just attached,
as
shown
in Figure C-S.
2S. Replace the
bottom
cover
onto
the
unit.
26. Place
the
unit
on
a
broad,
flat object
and
slide the cover
onto
the unit.
27.
Secure
the
case to
the
unit with the screws previously
removed
from
each
of
the
lower,
rear
corners of the unit.
28. Re-install the screws previously
removed
from the front
panel
recessed
positions (see
Figure
C-2).
29.
Re-connect
the
power
cord
to
the unit.
30.
For
Option
11 units (without controller),
connect
the unit
to
the 989SA via the slave
cable
(0989S-61606).
Remove the front
panel
of the 989SA
and
conduct
the follow-
ing
steps
on
the
989SA to check
out
the
989S
Option 11.
