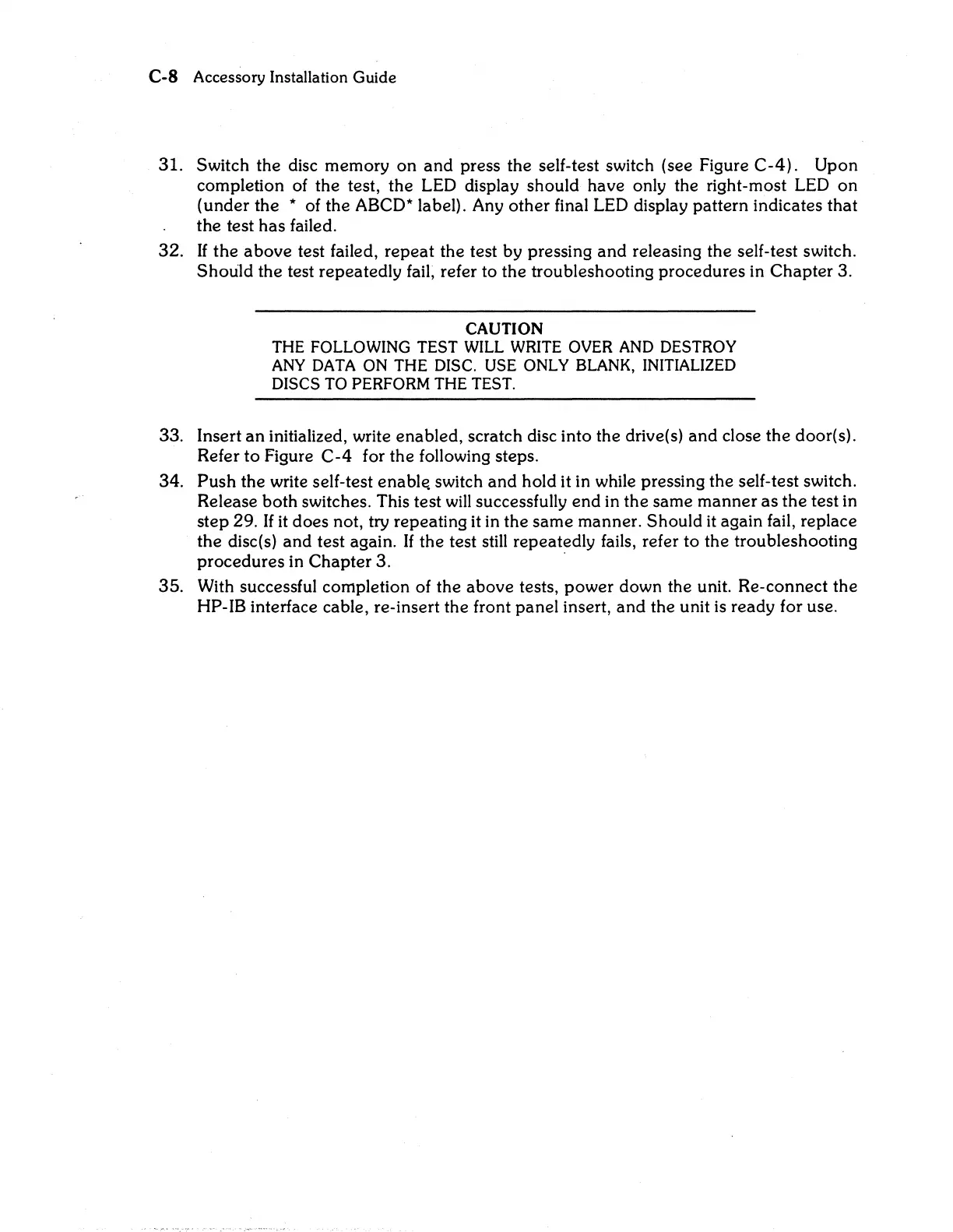

C-8 Accessory Installation Guide
31. Switch the disc memory
on
and
press the self-test switch (see Figure
C-4).
Upon
completion of the test, the LED display should have only the right-most LED
on
(under the * of the ABCD* label). Any
other
final
LED
display pattern indicates that
the test has failed.
32.
If
the
above
test failed,
repeat
the test by pressing
and
releasing the self-test switch.
Should
the test repeatedly fail, refer to the troubleshooting procedures in Chapter 3.
CAUTION
THE
FOLLOWING TEST
WILL
WRITE
OVER
AND
DESTROY
ANY
DATA
ON
THE
DISC.
USE
ONLY
BLANK,
INITIALIZED
DISCS
TO
PERFORM THE TEST.
33. Insert
an
initialized, write enabled, scratch disc into the drive(s)
and
close
the
door(s).
Refer
to
Figure
C-4
for the following steps.
34.
Push
the write self-test enable. switch
and
hold it in while pressing the self-test switch.
Release both switches. This test
will
successfully
end
in
the
same
manner
as
the
test in
step 29.
If
it
does not, try repeating it in the same manner. Should
it
again fail, replace
the disc(s)
and
test again.
If
the test still repeatedly fails, refer to the troubleshooting
procedures in
Chapter
3. .
35.
With successful completion of the above tests,
power
down the unit. Re-connect
the
HP-IB interface cable, re-insert the front panel insert,
and
the unit is ready for use.
