HP b2600 Technical Reference

Appendix F
Remove/Replace DAT Drives
Removing the DAT Drive
185
4. Unscrew the four mounting screws that hold the DAT drive in the DAT drive bay. See Figure F-3

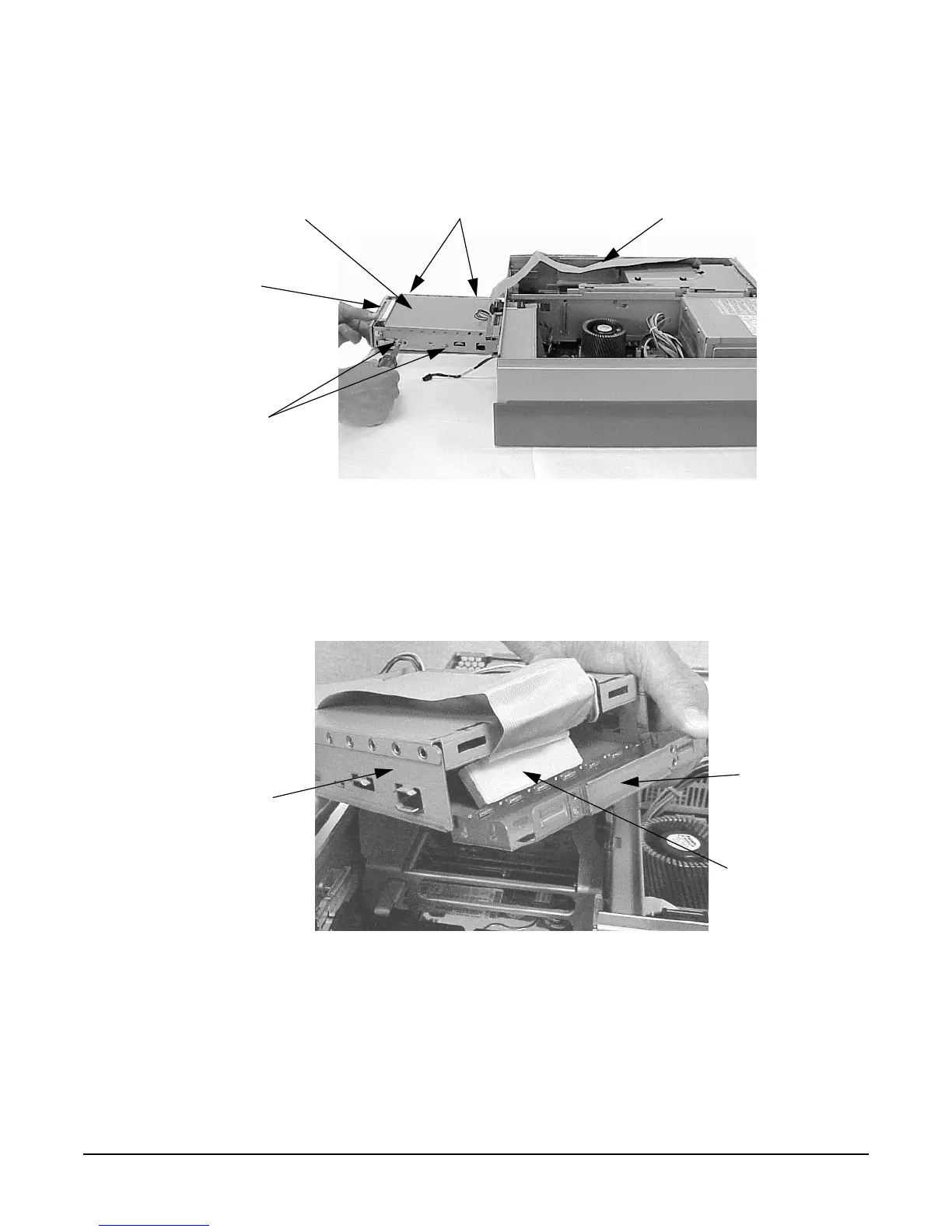

Figure F-3 Removing the DAT Drive Bay and DAT Drive
5. Remove the DAT drive bay’s back cover. Note that this back cover snaps off of the DAT drive bay.
See Figure F-4.
Figure F-4 Removing the DAT Drive Bay’s Back Cover
Mounting Screws
Mounting
Screws
SCSI Cable
DAT Drive Bay
DAT Drive
DAT Drive
Bay’s Back
Cover
DAT Drive
Bay
SCSI Terminator
