Appendix F
Remove/Replace DAT Drives
Replacing the DAT Drive
191
6. Slide the DAT drive bay and DAT drive back into the workstation. You will hear the retainer
clips snap in place when the DAT drive bay and DAT drive are properly installed. See
Figure
F-13.

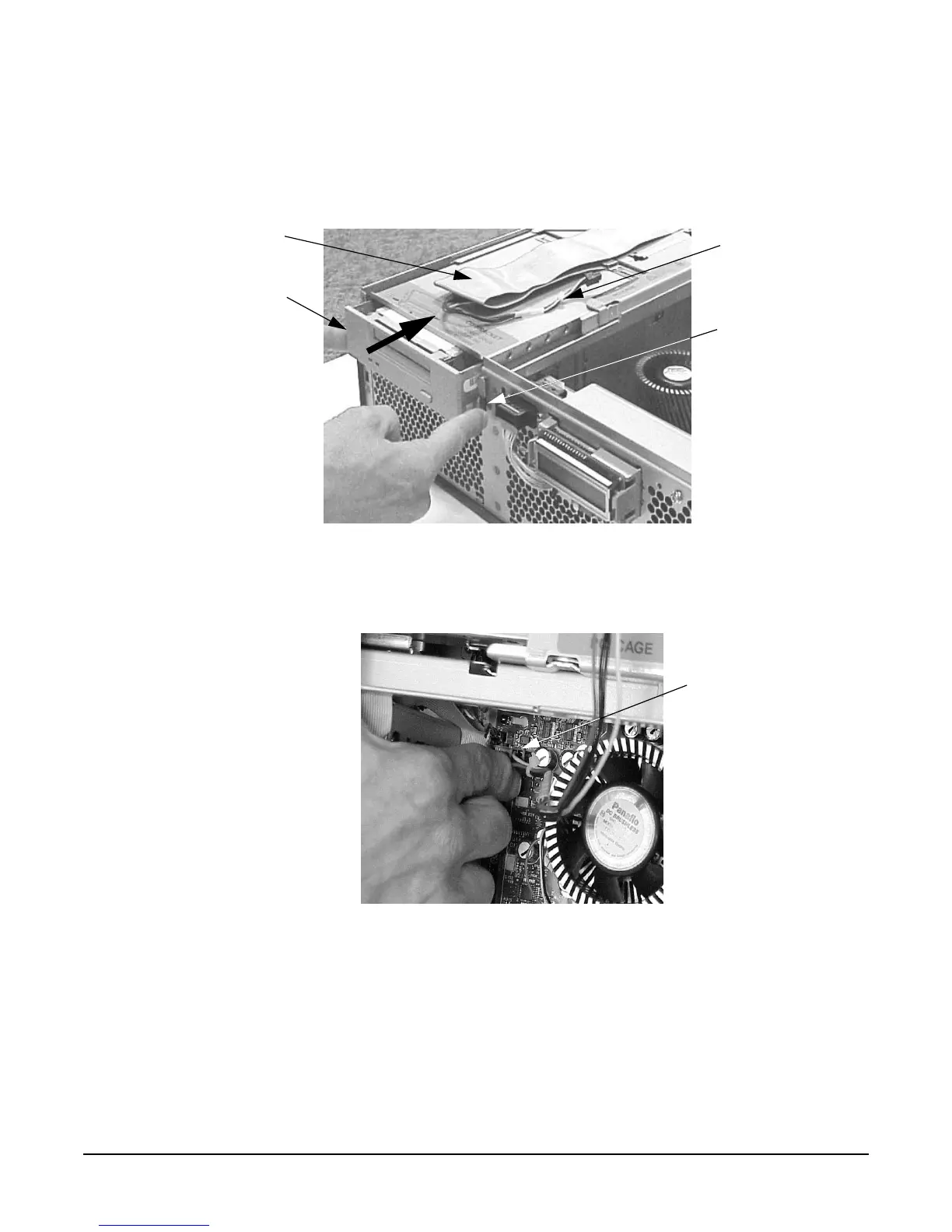

Figure F-13 Replace the DAT Drive and DAT Drive Bay Area
7. Connect the DAT drive power cable to its connector on the system board. See
Figure F-14. This
connection is keyed.
Figure F-14 Connecting the DAT Drive Power Cable
8. Complete the procedure in the section “Replacing the Front Bezel and Top Cover” found in
Chapter 3.
9. Connect and turn on the power to your system.
10.Determine that your DAT drive replacement was successful by executing the sam command as
root. When the System Administration Manager window appears, double click the Disk
and File System icon and in the window that appears double click the Disk Devices icon. In
the next window that appears, you should see your DAT drive listed. If it is not listed, repeat this
procedure. If your DAT drive is still not listed, contact your local HP Support Representative.
