Appendix G
Remove/Replace Flexible Disk Drives
Removing the Flexible Disk Drive
200
2. Lift up on the PCI cage handle and remove the PCI cage from the workstation, but first make
sure the flexible disk drive has been removed. Notice how the SCSI cable has been routed
over the exposed edge of the I/O cards. See
Figure G-8.

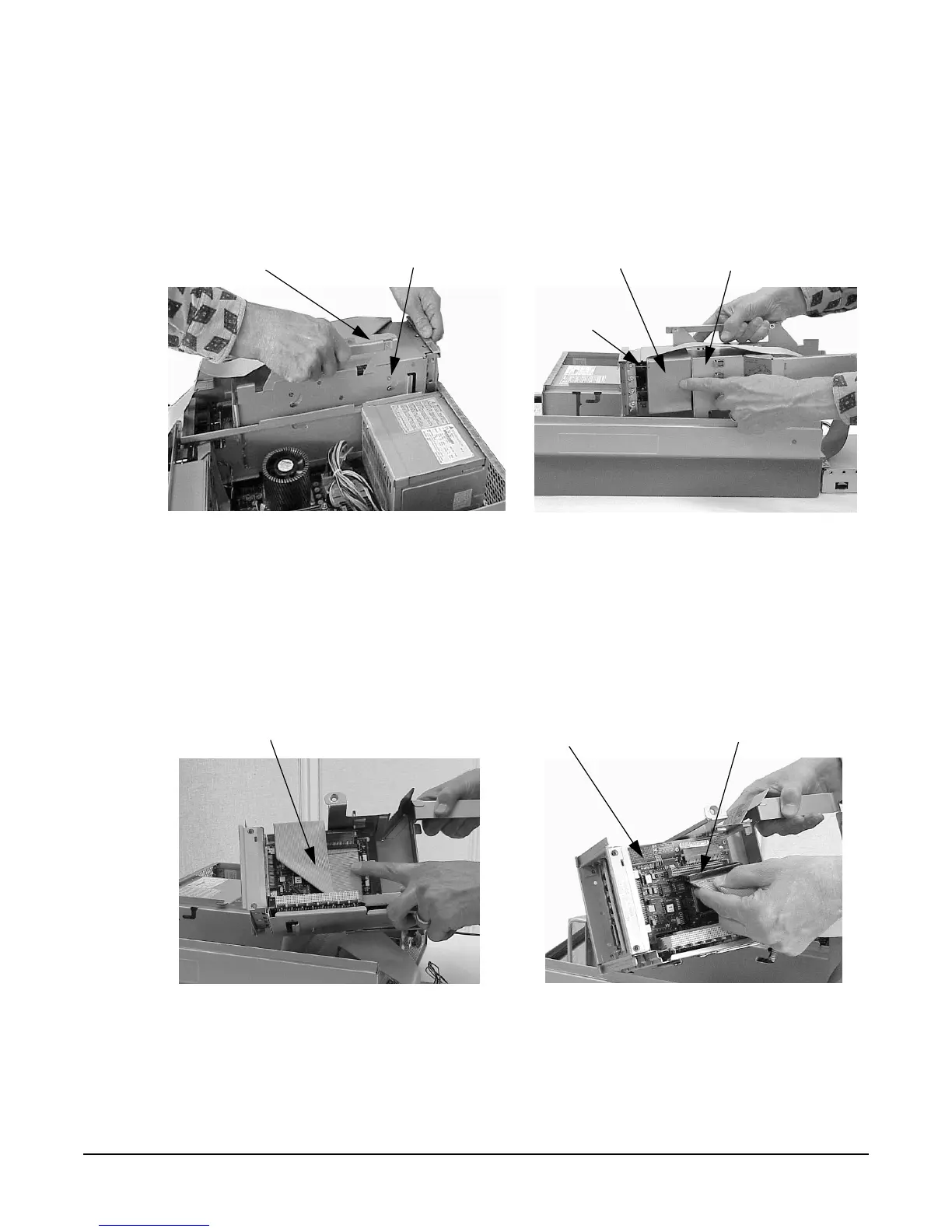

Figure G-8 Removing the PCI Cage
3. Rotate the PCI cage over so you can see the card(s) inside the PCI cage and observe the SCSI
cable and how it is folded. See
Figure G-9. Next, disconnect the SCSI cables connector from the
SCSI card and note the connection used. See
Figure G-9.
Figure G-9 Disconnection the SCSI Cable
PCI Cage Handle
PCI Cage SCSI Cable
PCI Cage Cover
I/O Cards
SCSI Card
SCSI Cable Connector
Folded SCSI Cable
To Next Page
