HP b2600 Technical Reference

Appendix G
Remove/Replace Flexible Disk Drives
Replacing the Flexible Disk Drive
202
4. Run the power and SCSI cables through the back of the flexible disk drive bay to the front. See
Figure G-12.

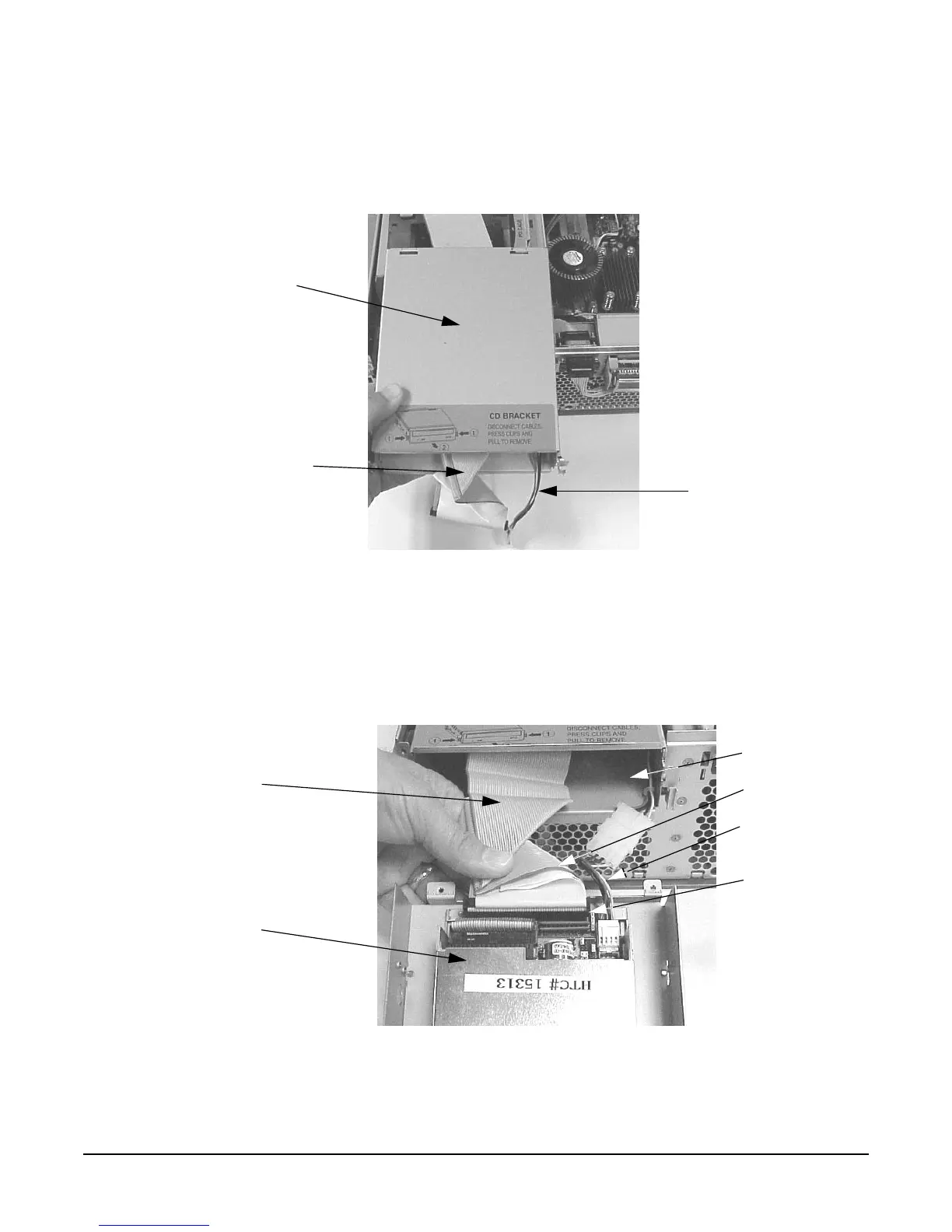

Figure G-12 Running the SCSI and Power Cables through the Disk Drive’s Bay
5. Connect the flexible disk drive’s power and SCSI cables. See
Figure G-13. Note that these cables
are not keyed, so when you replace the SCSI cable, you will need to line up the red line on the
SCSI cable with the right side of the flexible disk drive’s SCSI connector, as viewed in
Figure
G-13.
Figure G-13 Connecting the Flexible Disk Drive’s Cables
Flexible Disk
Drive’s Bay
SCSI Cable
Power Cable
Flexible Disk
Power Cable
SCSI Cable
Flexible Disk
Drive Bay
Drive
Red Line
Pin 1 of the
Connector
