Remove/Replace System Components
Removing/Replacing System Components
6. Determine that your I/O cards were replaced successfully by executing this command as
root:
ioscan -fn
In the next window that appears, you should see your I/O card listed. If it is not listed,
repeat the previous procedures in this section including this one. If your I/O card is still
not listed, contact your local HP Support Representative.
PCI Card Guide Replacement
This section explains how to replace a PCI card guide that has been removed from your
PCI cage cover. To replace a PCI card guide, follow this procedure:
1. Locate the front of the card guide slot and the card guide lip. See Figure 3-37.

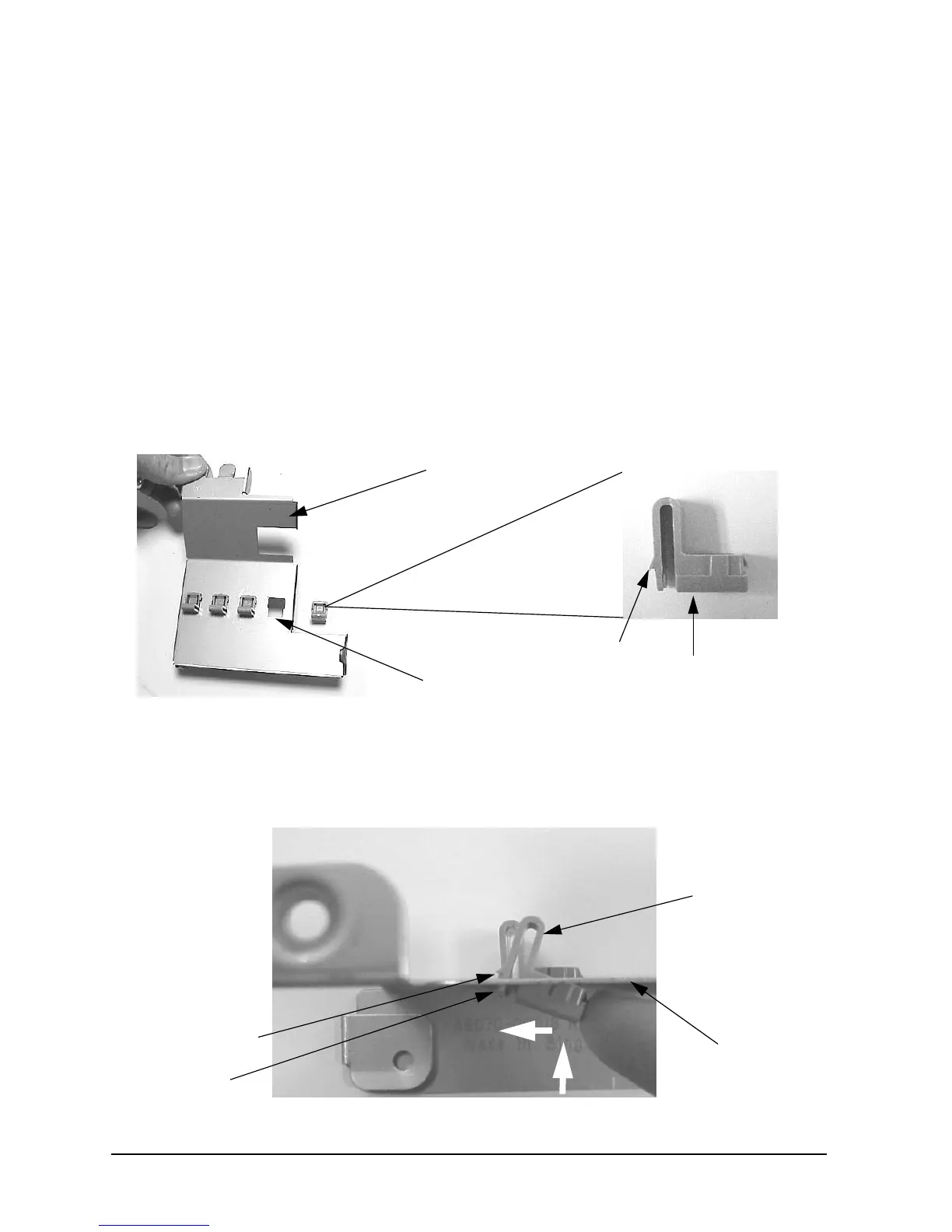

Figure 3-37. Pushing the Card Guide Forward and Down
2. Insert the card guide from the bottom side of the PCI cage cover, place the card guide lip
against the front part of the card guide slot and push inward. Next, push upward on the
card guide. It will snap in place. See Figure 3-38.
Figure 3-38. Replacing the Card Guide into the PCI Cage Cover
PCI Cage Cover
Card Guide
Front of Card Guide Slot
Card Guide Lip
Card Guide Lip
Card Guide
Bottom Side
of the PCI
Cage Cover
Front Part of
1
2
Card Guide
To Next Page
