88 Chapter3
Remove/Replace System Components
Removing/Replacing System Components

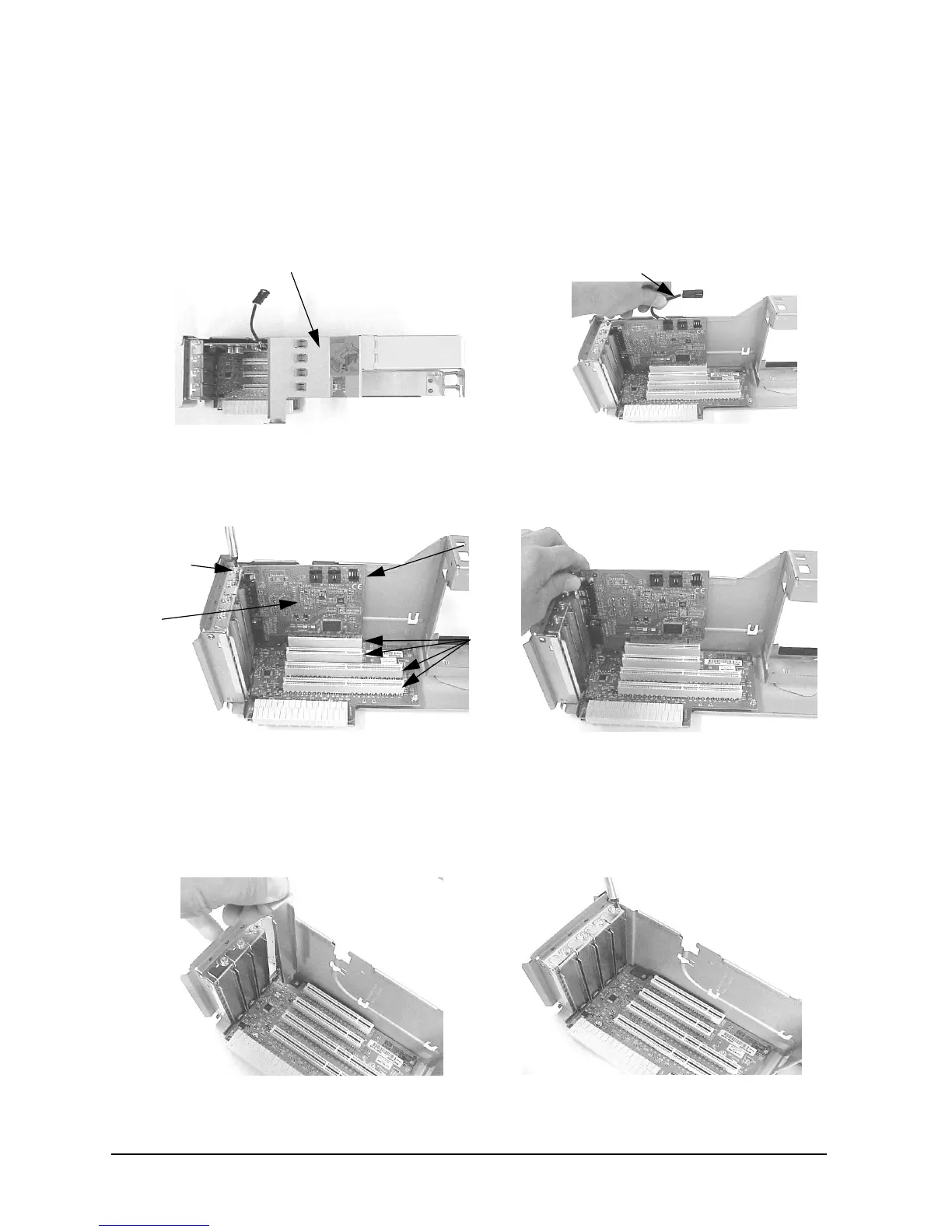

4. Remove the PCI cage cover and disconnect the audio-extender cable from the audio card
if you have an audio cable. See Figure 3-78. Note that the audio-extender cable’s
connector can be remove from the audio card by press in on the connector’s latch release
and pulling outward on the cable.
Figure 3-78. Remove the PCI Cage Cover and the Audio-Extender Cable
5. Unscrew the bulkhead screw and remove the audio card. See Figure 3-79.
Figure 3-79. Remove the PCI Card Bulkhead Screw and Audio Card
6. Replace the bulkhead blank in the opening for slot one of the PCI cage and screw in the
bulkhead screw for the bulkhead blank. See Figure 3-80.
Figure 3-80. Replace the Bulkhead Blank in the PCI Cage
Audio-Cable ExtenderPCI Cage Cover
PCI Card
Bulkhead
Audio
Screw
Card
PCI
Card
Back
Edge
PCI
Slots
Screw in the bulkhead screwReplace bulkhead blank
