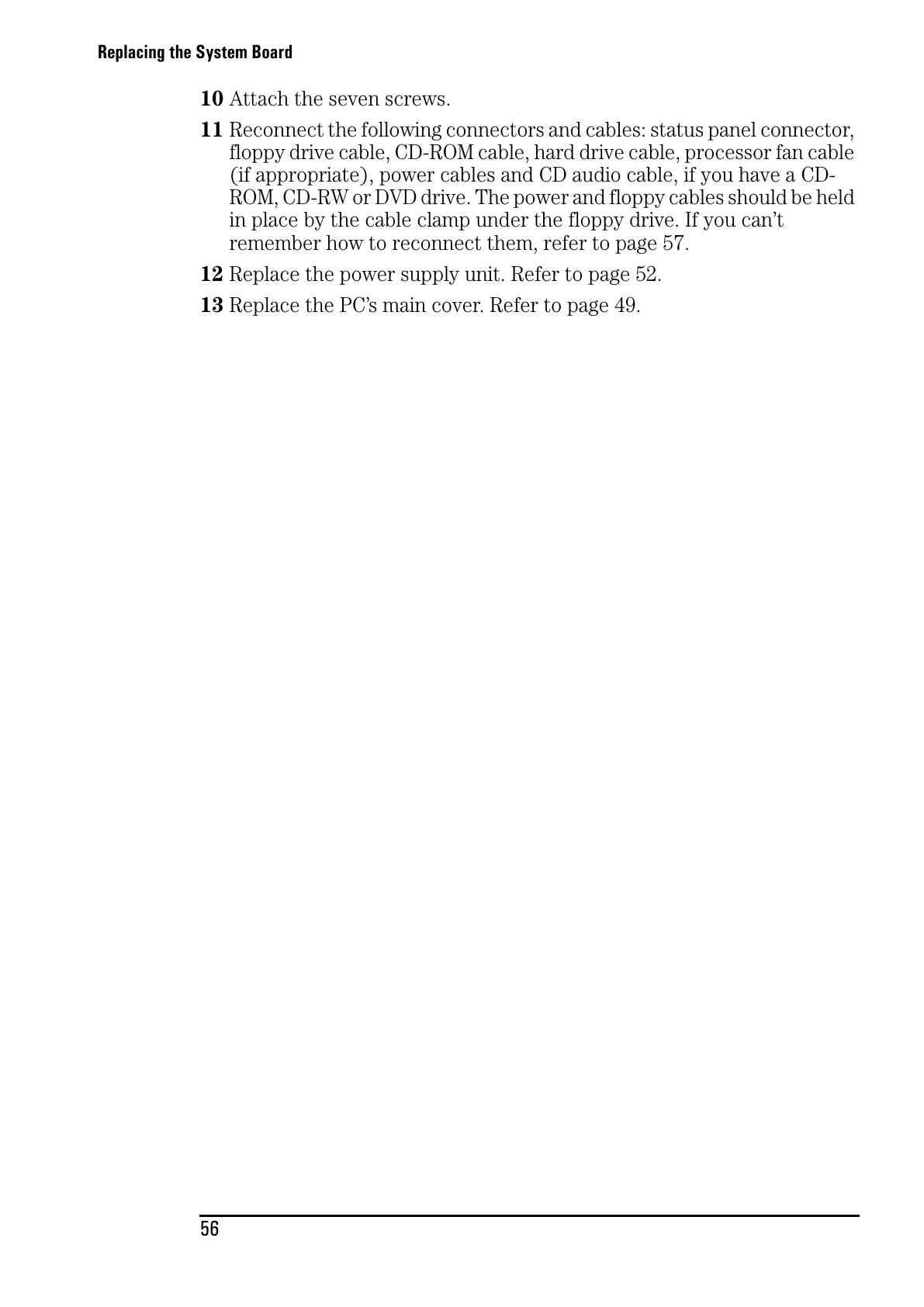

Replacing the System Board
56
10 Attach the seven screws.
11 Reconnect the following connectors and cables: status panel connector,
floppy drive cable, CD-ROM cable, hard drive cable, processor fan cable
(if appropriate), power cables and CD audio cable, if you have a CD-
ROM, CD-RW or DVD drive. The power and floppy cables should be held
in place by the cable clamp under the floppy drive. If you can’t
remember how to reconnect them, refer to page 57.
12 Replace the power supply unit. Refer to page 52.
13 Replace the PC’s main cover. Refer to page 49.
