Left speaker
NOTE: The left speaker spare part kit includes xxxxxx
Description Spare part number
Left speaker L17085-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement.
Before removing the left speaker, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the display panel (see Display panel assembly on page 20), and then remove the following
components:
▲
Battery (see Battery on page 24).
Remove the left speaker:

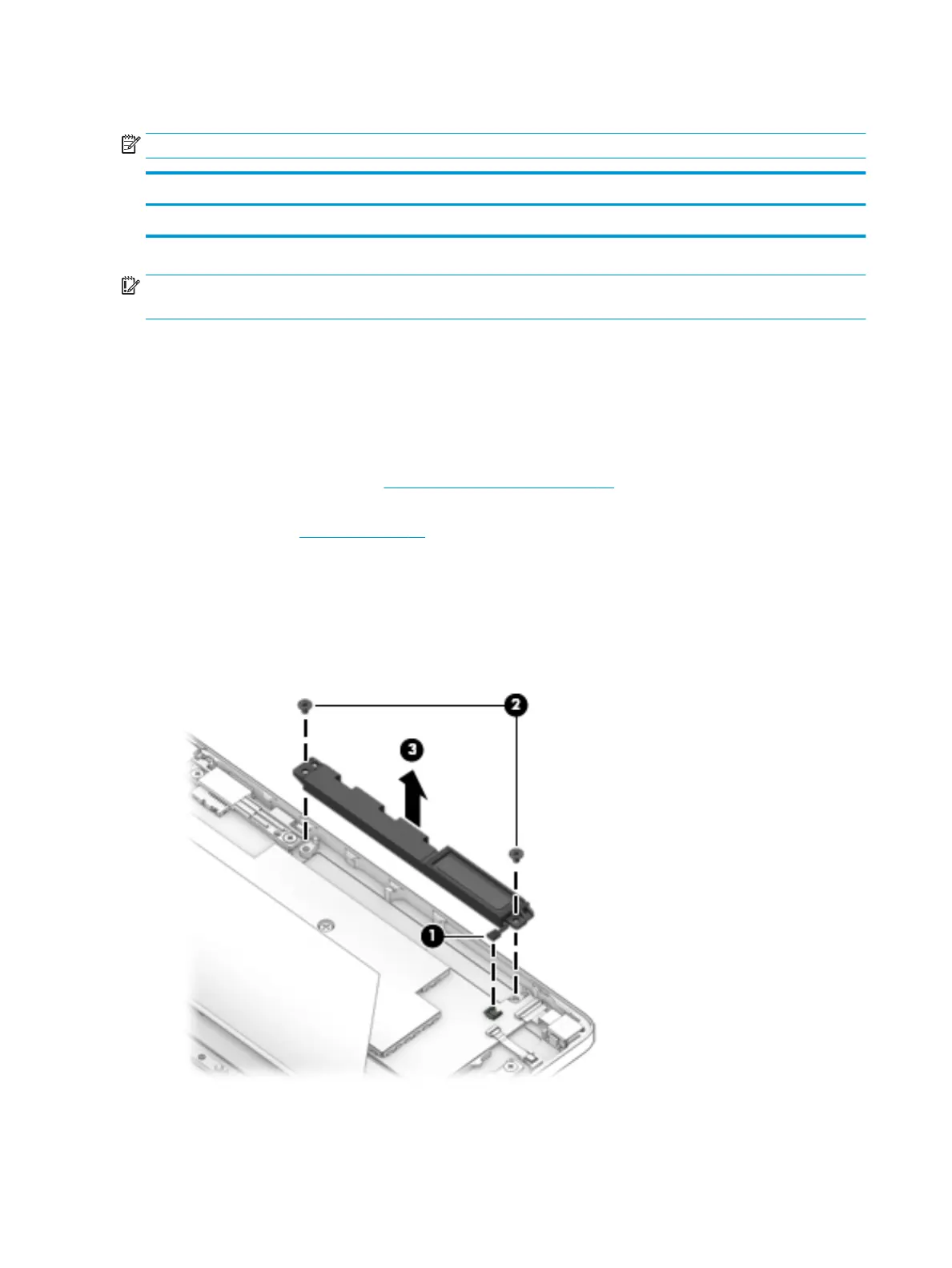

1. Disconnect the speaker cable from the system board (1).
2. Remove the two Phillips M2.0 × 3.0 screws (2) that secure the speaker to the base enclosure.
3. Remove the speaker from the base enclosure (3).
Reverse this procedure to install the left speaker.
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
