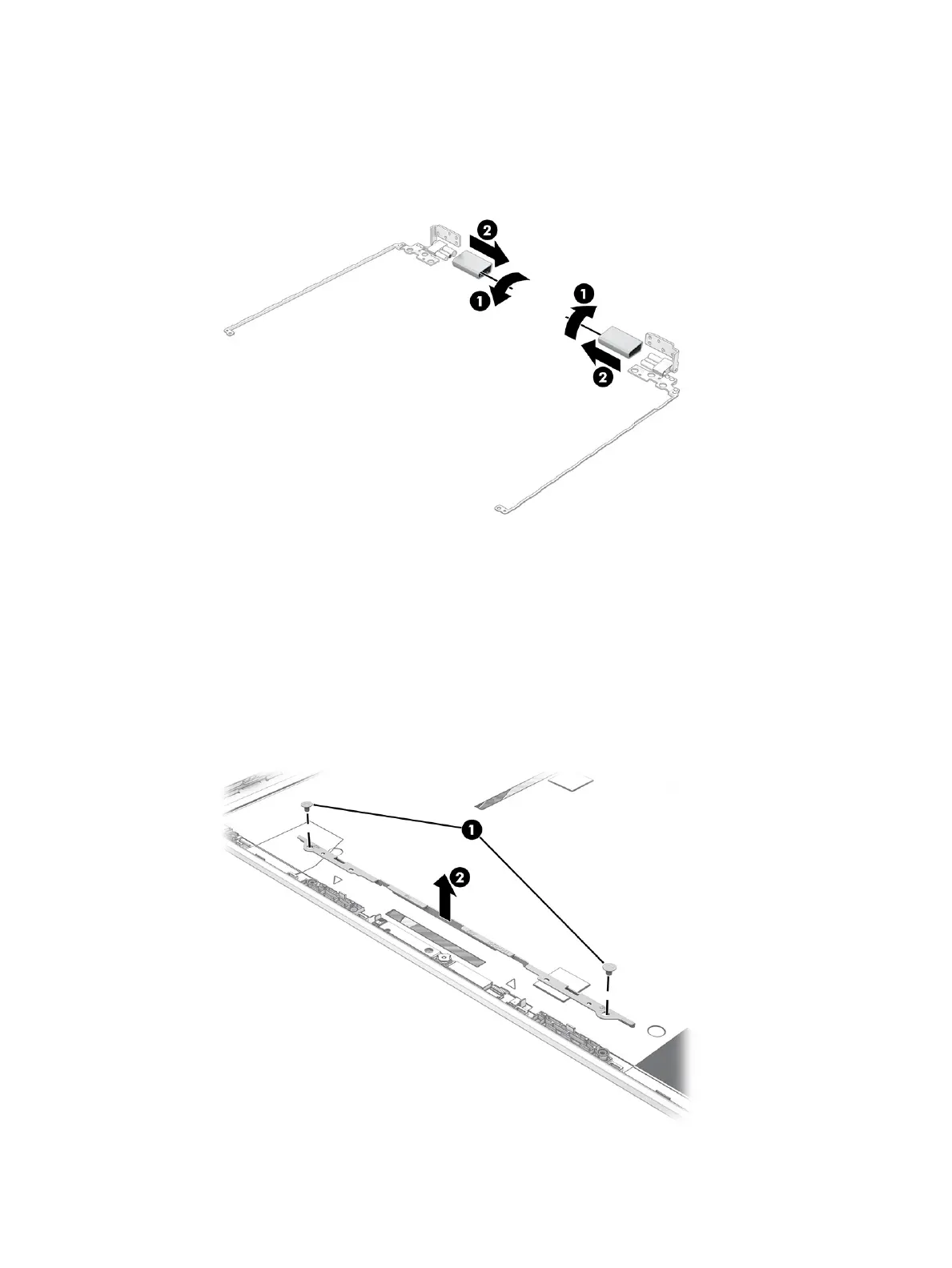

e. Remove the display hinge covers (2).
The display hinge covers are available using spare part number M15312-001.
16. If you need to replace the webcam/microphone module:
a. Remove the display bezel.
b. Remove the display panel.
c. Remove the display hinges.
d. Remove the two Phillips M2.0 × 2.8 screws (1) that secure the webcam/microphone module bracket
to the display back cover.
e. Remove the webcam/microphone module bracket (2).
44 Chapter 5 Removal and replacement procedures for authorized service provider parts ENWW
