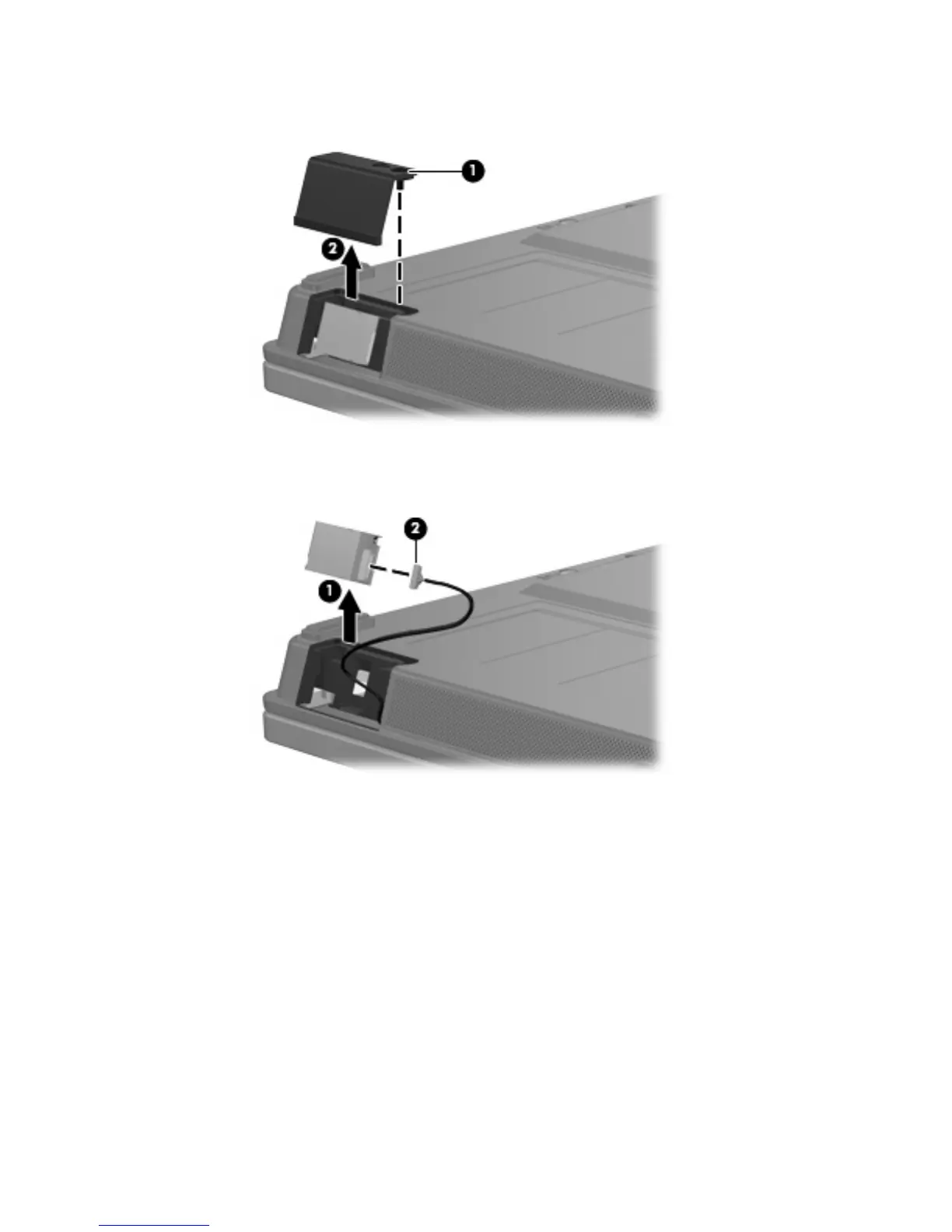

3. Lift the cover (2) straight up to remove it. The Bluetooth module compartment cover is included in the
Plastics Kit, spare part number 446439-001.
4. Remove the Bluetooth module (1) from the computer.
5. Disconnect the Bluetooth module cable (2) from the module.
6.
Remove the Bluetooth module.
Reverse this procedure to reassemble and install the Bluetooth module.
Component replacement procedures 49
