HP Compaq 6910p Maintenance And Service Guide

Fan assembly
Description Spare part number
Fan assembly 446416-001
Before removing the fan assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the keyboard (see
Keyboard on page 57).
6.
Remove the switch cover (see
Switch cover on page 64).

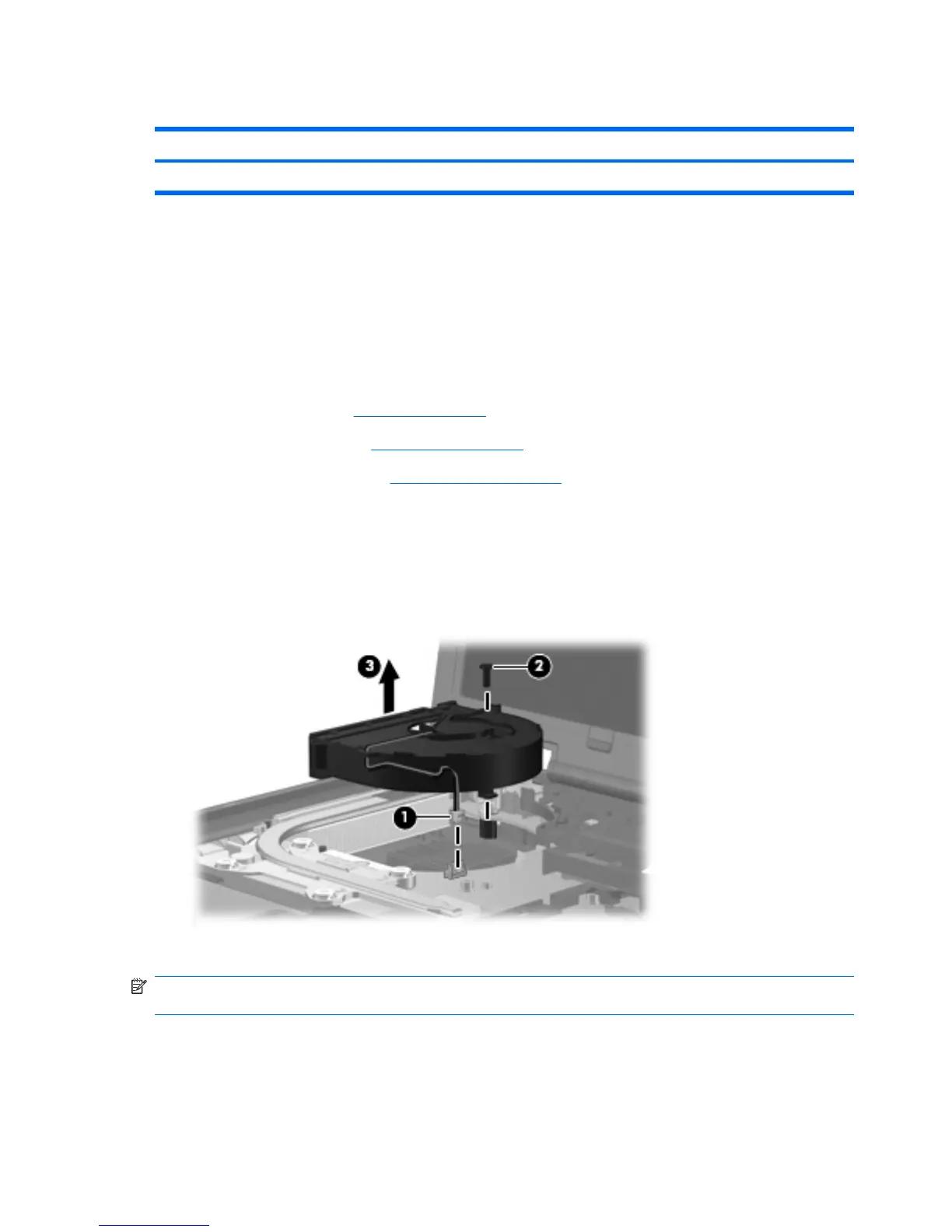

Remove the fan assembly:
1. Disconnect the fan cable (1) from the system board.
2. Remove the Phillips PM2.5×7.0 screw (2) that secures the fan assembly to the computer.
3. Remove the fan assembly (3).
Reverse this procedure to install the fan assembly.
NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left and
right sides of the computer.
The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is
designed to turn on automatically when high temperature conditions exist. These conditions are affected
by high external temperatures, system power consumption, power management/battery conservation
66 Chapter 4 Removal and replacement procedures

HP Compaq 6910p Specifications

General

Bus type	FSB
Stepping	M0
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	T8300
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo T8000 Series
Processor socket	Socket 479
Processor codename	Penryn
Processing Die size	107 mm²
Processor frequency	2.4 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor system type	Up
Processor manufacturer	Intel
Processor front side bus	800 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	12
Number of Processing Die Transistors	410 M
Motherboard chipset	Intel® PM965 Express
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes
Total storage capacity	160 GB
Compatible memory cards	SD
Display diagonal	14.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Memory slots	2x SO-DIMM
Internal memory	2 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Discrete graphics card model	AMD Mobility Radeon X2300
Maximum graphics card memory	0.128 GB
Audio system	HD
Type	PC
Wireless technology	802.11a/b/g/draft-n
Compatible operating systems	FreeDOS Genuine Windows Vista Enterprise Genuine Windows 2000 SuSe Linux Enterprise Desktop 10
Networking type	Fast Ethernet
Networking features	10/100/1000 NIC
Operating system installed	Windows Vista Business
Number of battery cells	6
TV-out type	S-Video
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
Cable lock slot type	Kensington
AC adapter power	90 W
Pointing device	Touchpad + Pointing Stick
Processor code	SLAPR
Processor ARK ID	33099
Processor package size	35 x 35 mm
Country of origin	China

Weight and Dimensions

Depth	239.5 mm
Width	330 mm
Weight	2000 g
Height (front)	29.1 mm
