HP Compaq 6910p Maintenance And Service Guide

WWAN module
CAUTION: The WWAN module and WLAN module are not interchangeable.
Description Spare part number
Verizon EVDO WWAN module 418860-001
Cingular HSPDA WWAN module 436638-001
Vodafone HSPDA WWAN module 435098-001
Before removing the WWAN module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Release the keyboard (see
Keyboard on page 57).

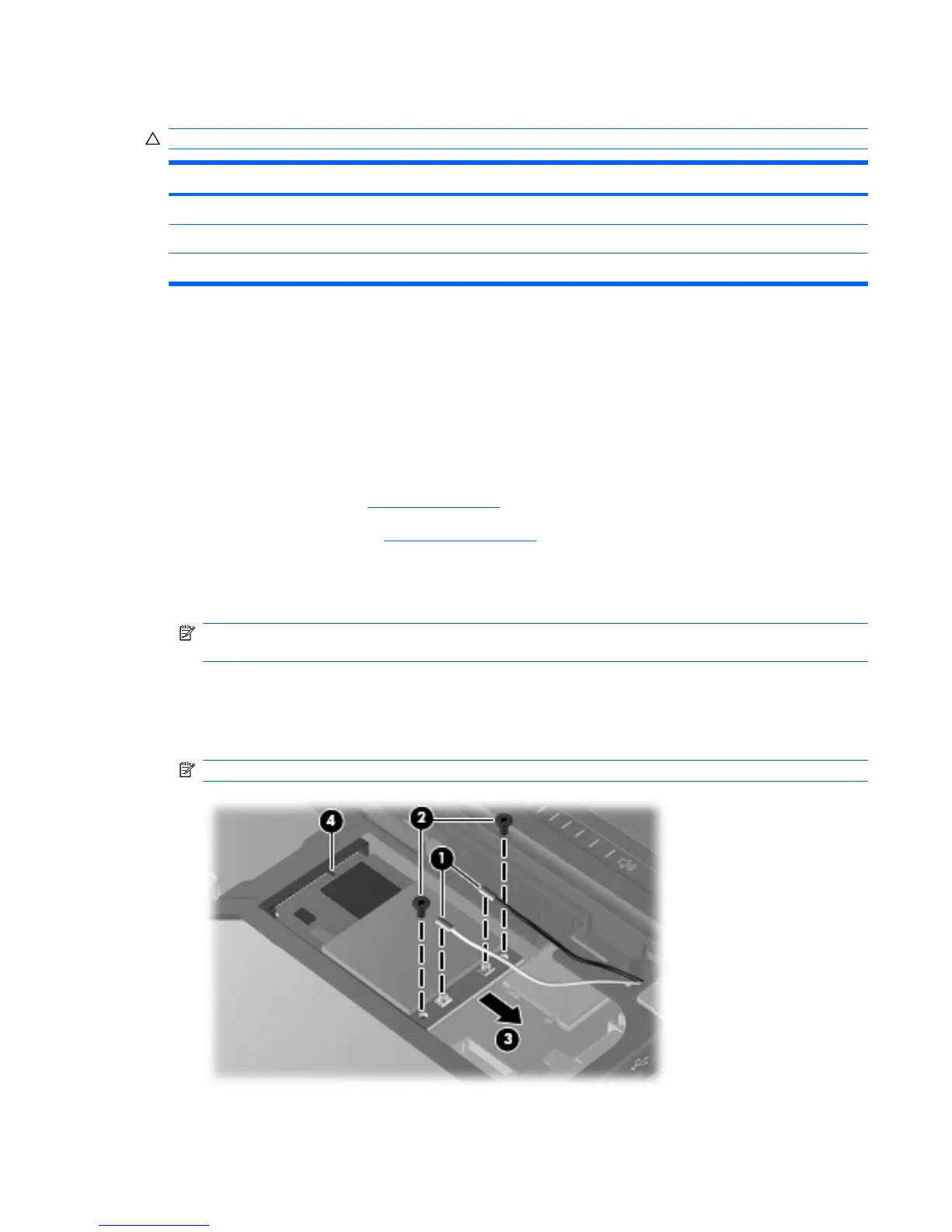

Remove the WWAN module:
1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.
NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal. The
blue WWAN antenna cable is connected to the WWAN module “Aux” terminal.
2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the WWAN module to the computer.
(The edge of the module opposite the slot rises away from the computer.)
3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE: WWAN modules are designed with a notch (4) to prevent incorrect installation.
Component replacement procedures 63

HP Compaq 6910p Specifications

General

Bus type	FSB
Stepping	M0
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
Processor model	T8300
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo T8000 Series
Processor socket	Socket 479
Processor codename	Penryn
Processing Die size	107 mm²
Processor frequency	2.4 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor system type	Up
Processor manufacturer	Intel
Processor front side bus	800 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	12
Number of Processing Die Transistors	410 M
Motherboard chipset	Intel® PM965 Express
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes
Total storage capacity	160 GB
Compatible memory cards	SD
Display diagonal	14.1 \
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Memory slots	2x SO-DIMM
Internal memory	2 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Discrete graphics card model	AMD Mobility Radeon X2300
Maximum graphics card memory	0.128 GB
Audio system	HD
Type	PC
Wireless technology	802.11a/b/g/draft-n
Compatible operating systems	FreeDOS Genuine Windows Vista Enterprise Genuine Windows 2000 SuSe Linux Enterprise Desktop 10
Networking type	Fast Ethernet
Networking features	10/100/1000 NIC
Operating system installed	Windows Vista Business
Number of battery cells	6
TV-out type	S-Video
Charging port type	DC-in jack
Serial ports quantity	0
USB 2.0 ports quantity	3
Cable lock slot type	Kensington
AC adapter power	90 W
Pointing device	Touchpad + Pointing Stick
Processor code	SLAPR
Processor ARK ID	33099
Processor package size	35 x 35 mm
Country of origin	China

Weight and Dimensions

Depth	239.5 mm
Width	330 mm
Weight	2000 g
Height (front)	29.1 mm
