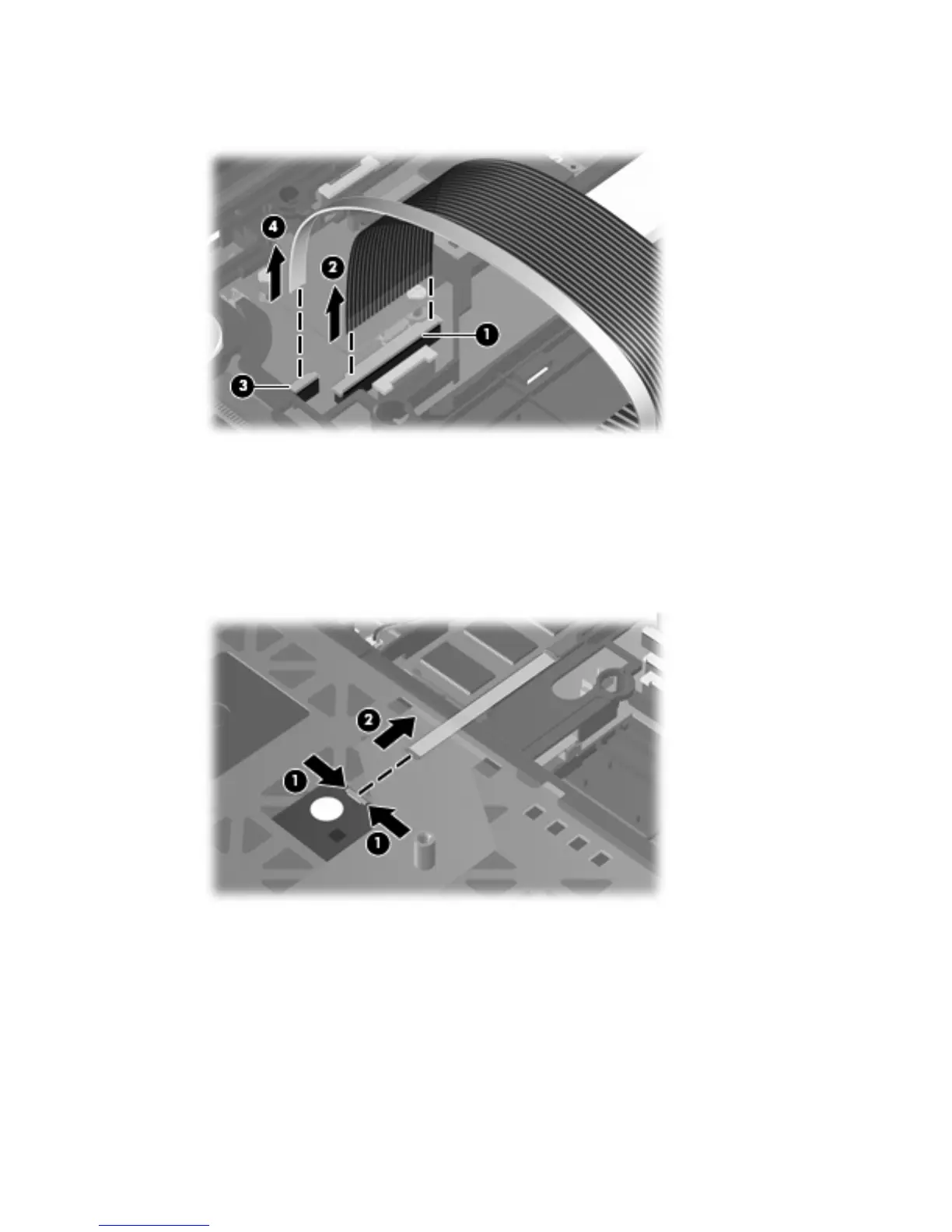

8. Release the ZIFconnector (3) to which the pointing stick cable is attached, and disconnect the
pointing stick cable (4) from the system board.
9.
Remove the keyboard.
10.
If it is necessary to replace the pointing stick cable, turn the keyboard upside down, with the bottom
of the keyboard toward you.
11. Release the ZIF connector (1) to which the pointing stick cable is attached, and disconnect the
cable (2) from the keyboard. The pointing stick cable is included in the Cable Kit, spare part number
446406-001.
Reverse this procedure to install the keyboard.
Component replacement procedures 59
