2.

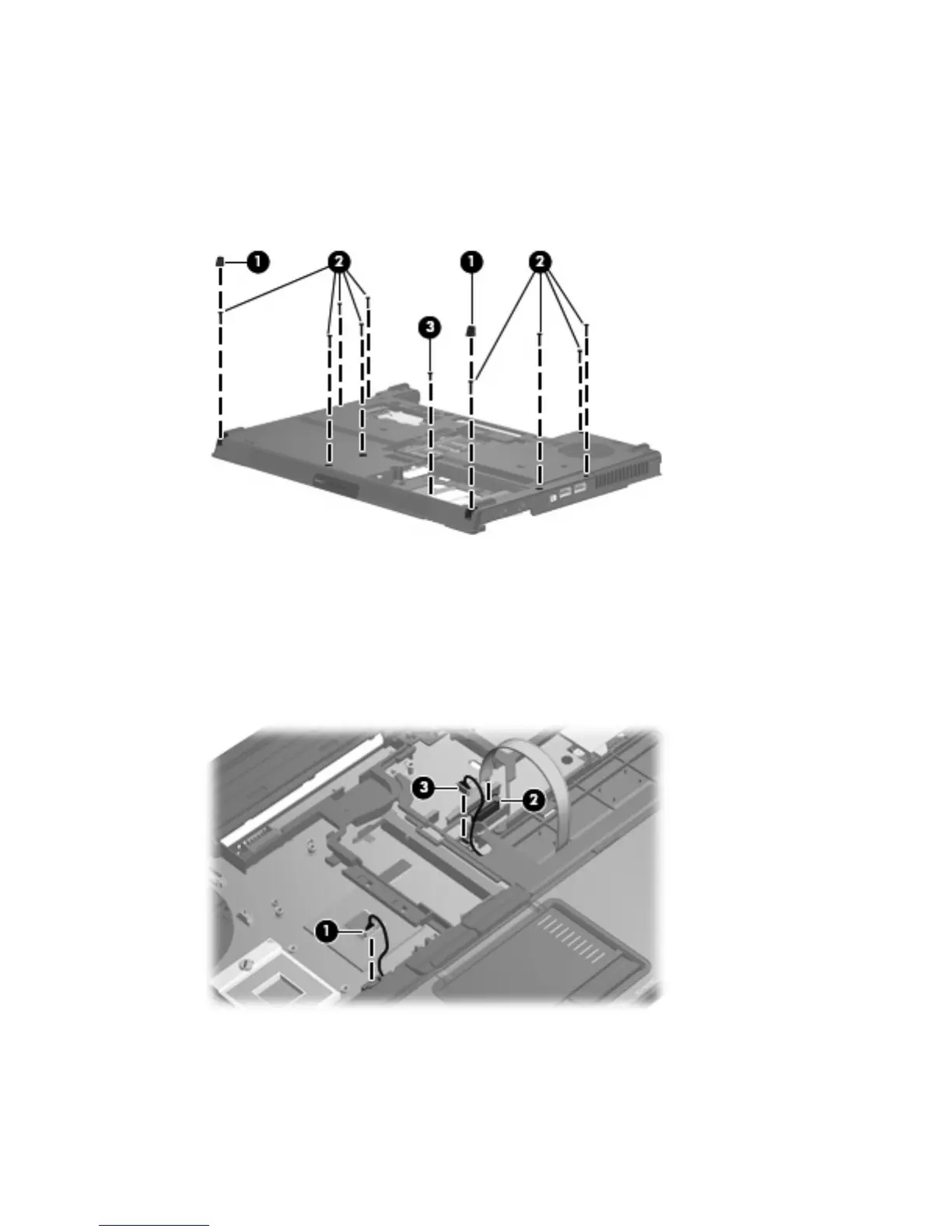

Remove the following:
(1) Two base enclosure rubber screw covers. The base enclosure rubber screw covers are included
in the Rubber Kit, spare part number 446680-001.
(2) Nine Torx T8M2.5×11.0 screws.
(3) One Torx T8M2.5×7.0 screw.
3.
Turn the computer right-side up, with the front toward you.
4.
Disconnect the following cables from the system board:
(1) TouchPad cable
(2) Fingerprint reader board cable
(3) Smart card reader board cable
5. Remove the microphone receiver (1) from the clip built into the top cover.
Component replacement procedures 77
