5–14 Maintenance and Service Guide
Removal and Replacement Procedures
5. Disconnect the Bluetooth cable from the Bluetooth board 1
and the system board 2.
✎
The Bluetooth cable is included with the Bluetooth board and is
also included in the Miscellaneous Cables Kit, spare part number
345056-001.
6. Remove the two PM1.5×3.0 screws 3 that secure the
Bluetooth board to the Bluetooth cover.
7. Remove the board from the cover 4.

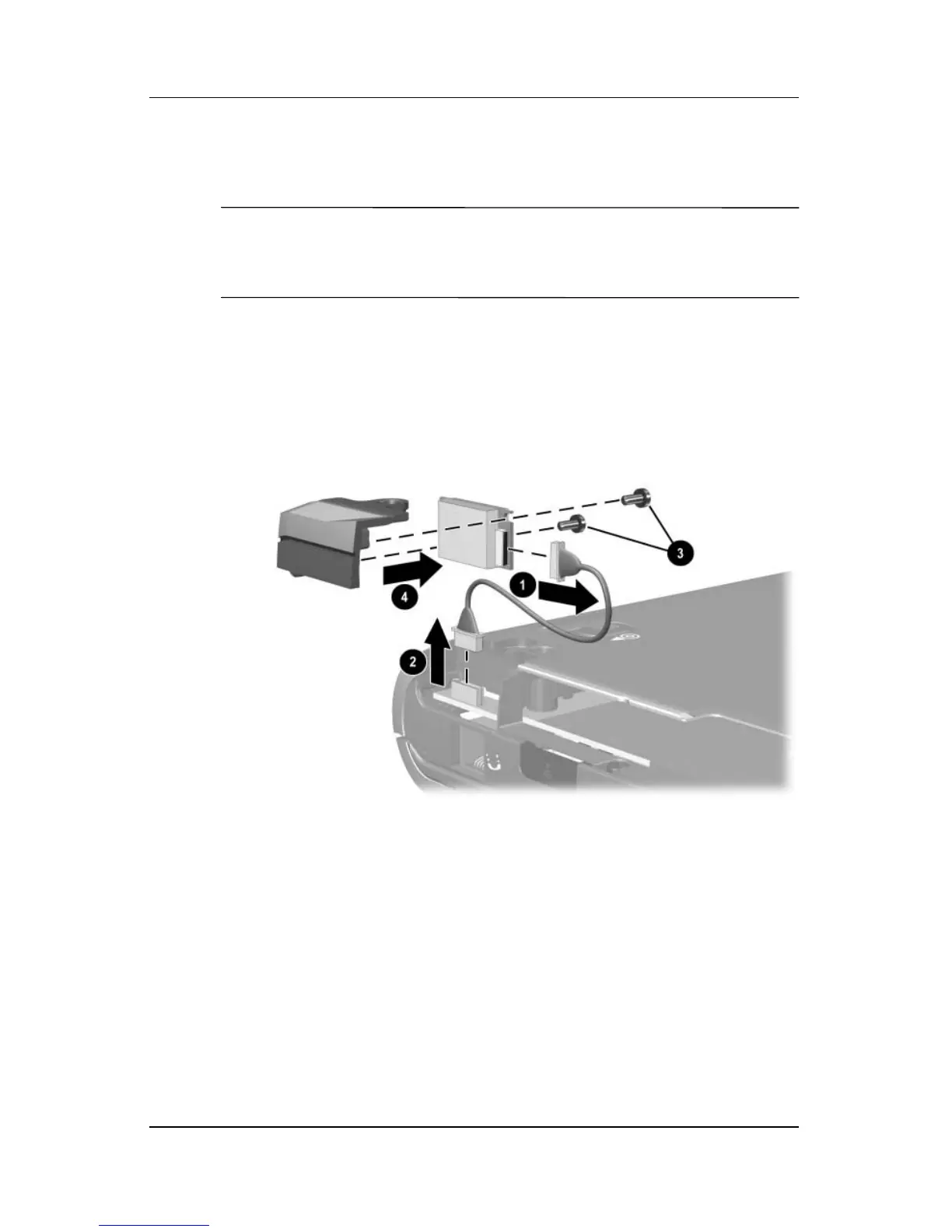

Removing the Bluetooth Board
Reverse the above procedure to install the Bluetooth board.
