Removal and Replacement Procedures
Maintenance and Service Guide 5–17
5.8 Optical Drive
1. Prepare the notebook for disassembly (refer to Section 5.3).
2. Turn the notebook upside down with the right side
facing you.
3. Remove the T8M2.0×6.0 screw 1 that secures the optical
drive to the notebook.
4. Insert a paper clip or similar tool into the optical drive release
hole to open the optical drive tray 2.
5. Use the optical drive tray to remove the optical drive 3.

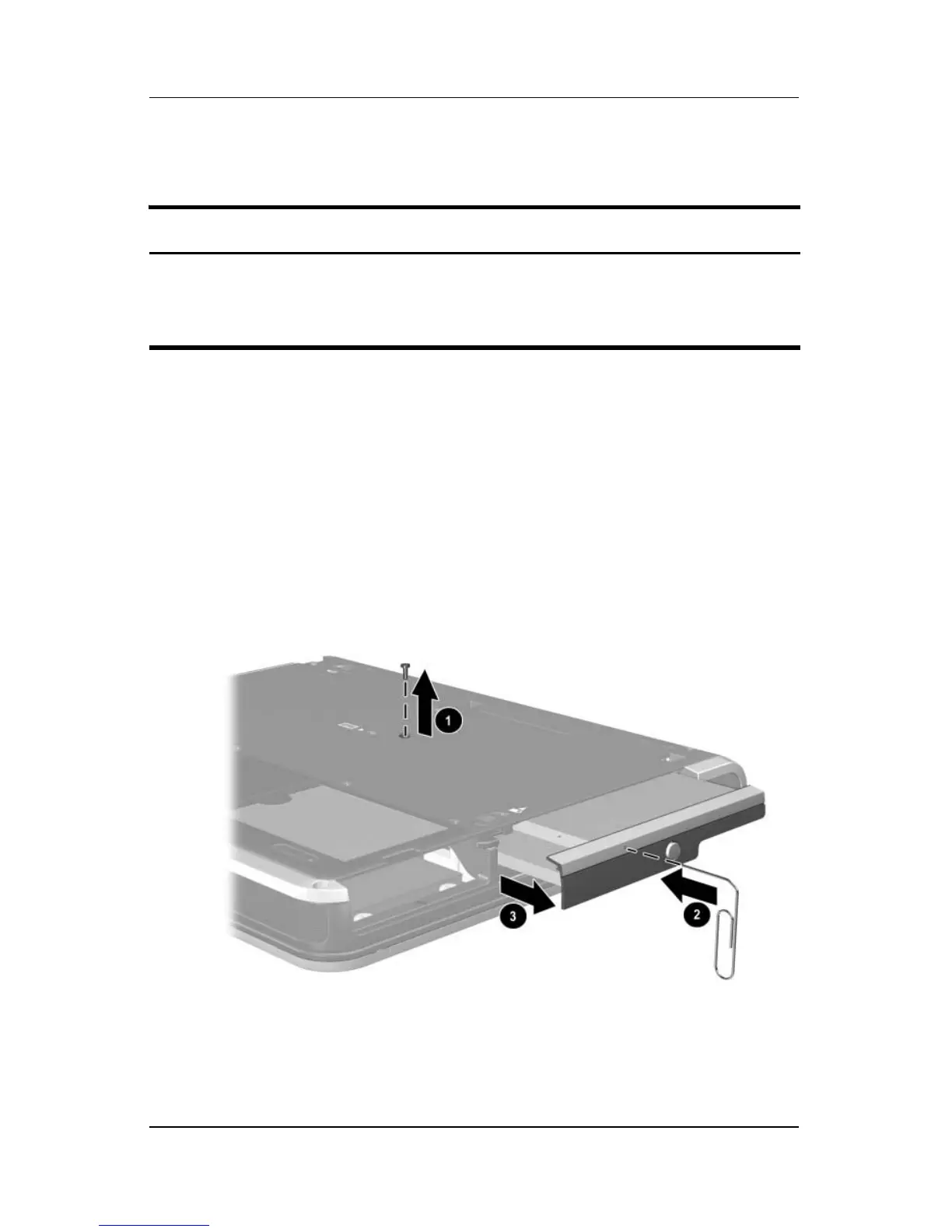

Removing the Optical Drive
Reverse the above procedure to install the optical drive.
Spare Part Number Information
24X Max DVD+RW/R and CD-RW Combo Drive
8X Max DVD-ROM Drive
24X Max DVD/CD-RW Combo Drive
24X Max CD-ROM Drive
349242-001
349241-001
349243-001
349240-001
