5–24 Maintenance and Service Guide
Removal and Replacement Procedures
5. Turn the modem board upside down 1.
6. Disconnect the modem cable 2 from the modem.

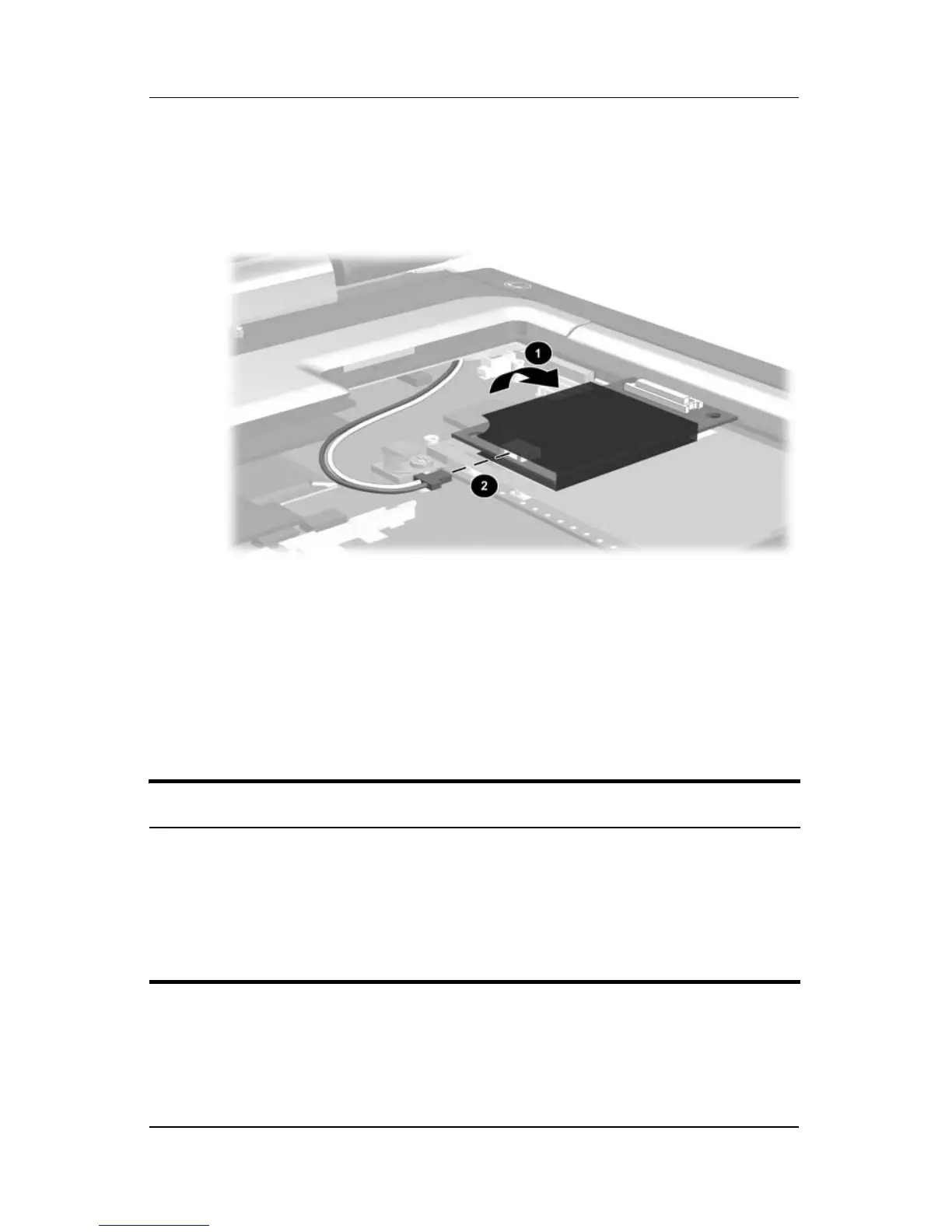

Disconnecting the Modem Board Cable
7. Remove the modem board.
Reverse the above procedure to install the modem board.
5.12 Mini PCI Communications Board
1. Prepare the notebook for disassembly (refer to Section 5.3).
2. Release the keyboard (refer to Section 5.9).
Spare Part Number Information
802.11a/b/g LAN NIC
802.11b/g LAN NIC
802.11b W500 modem board (for use in Japan)
802.11b wireless LAN (MOW)
802.11b wireless LAN (ROW)
802.11b/g wireless modem (MOW)
802.11b/g wireless modem (ROW)
325525-001
325526-001
339742-291
345641-001
345640-001
368247-001
368248-001
