Connector Pin Assignments
Maintenance and Service Guide A–3

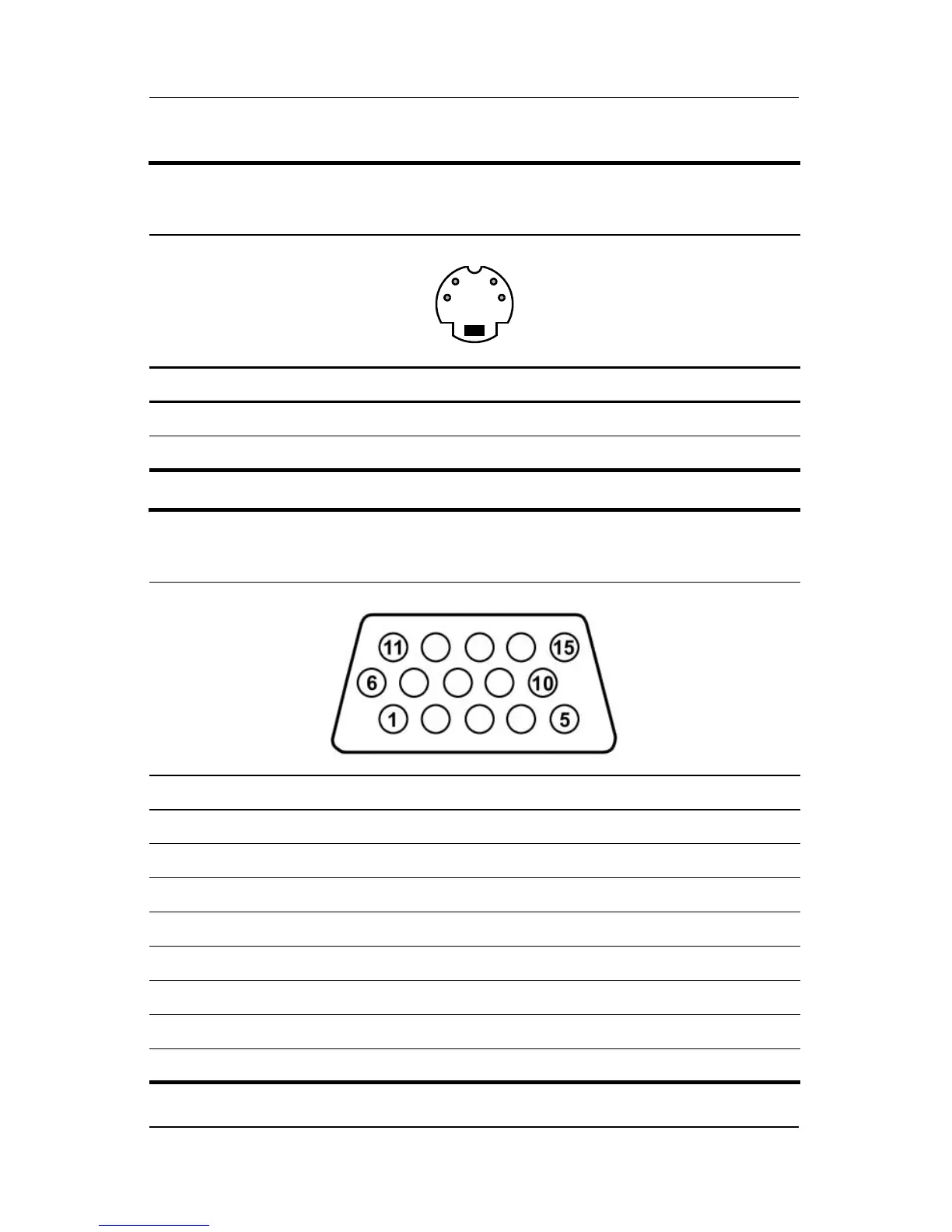

Table A-4
S-Video
Pin Signal Pin Signal
1 Ground (Y) 3 Y-Luminance (Intensity)
2 Ground (C) 4 C-Chrominance (Color)
Table A-5
External Monitor
Pin Signal Pin Signal
1 Red analog 9 +5 VDC
2 Green analog 10 Ground
3 Blue analog 11 Monitor detect
4 Not connected 12 DDC 2B data
5 Ground 13 Horizontal sync
6 Ground analog 14 Vertical sync
7 Ground analog 15 DDC 2B clock
8 Ground analog
12
43

HP Compaq Business Notebook nc8000 Specifications

General

Processor	Intel Pentium M
Display Size	15.0 inches
Operating System	Windows XP Professional
Battery	6-cell Lithium-Ion
Chipset	Intel 855PM
Memory Type	DDR SDRAM
Hard Drive Interface	ATA-100
Storage	40 GB to 80 GB HDD
Display Resolution	1400 x 1050
Graphics	ATI Mobility Radeon 9600
Optical Drive	DVD-ROM
Networking	Intel PRO/Wireless 2200BG
Ports	USB 2.0, VGA, Serial, Parallel
Weight	6.4 lbs (2.9 kg)
