Removal and Replacement Procedures
Maintenance and Service Guide 5–41
5.20 Speaker
✎
The speaker is included with the top cover, spare part number
345061-001.
1. Prepare the notebook for disassembly (refer to Section 5.3)
and remove the following components:
❏ Keyboard (refer to Section 5.9)
❏ LED switch cover (refer to Section 5.15)
❏ Display assembly (refer to Section 5.18)
❏ Top cover (refer to Section 5.19)
2. Turn the top cover upside down with the rear facing you.
3. Remove the five T8M2.0×4.0 screws 1 and one T8M2.0×6.0
screw 2 that secure the speaker to the top cover.
4. Remove the speaker 3 from the top cover.

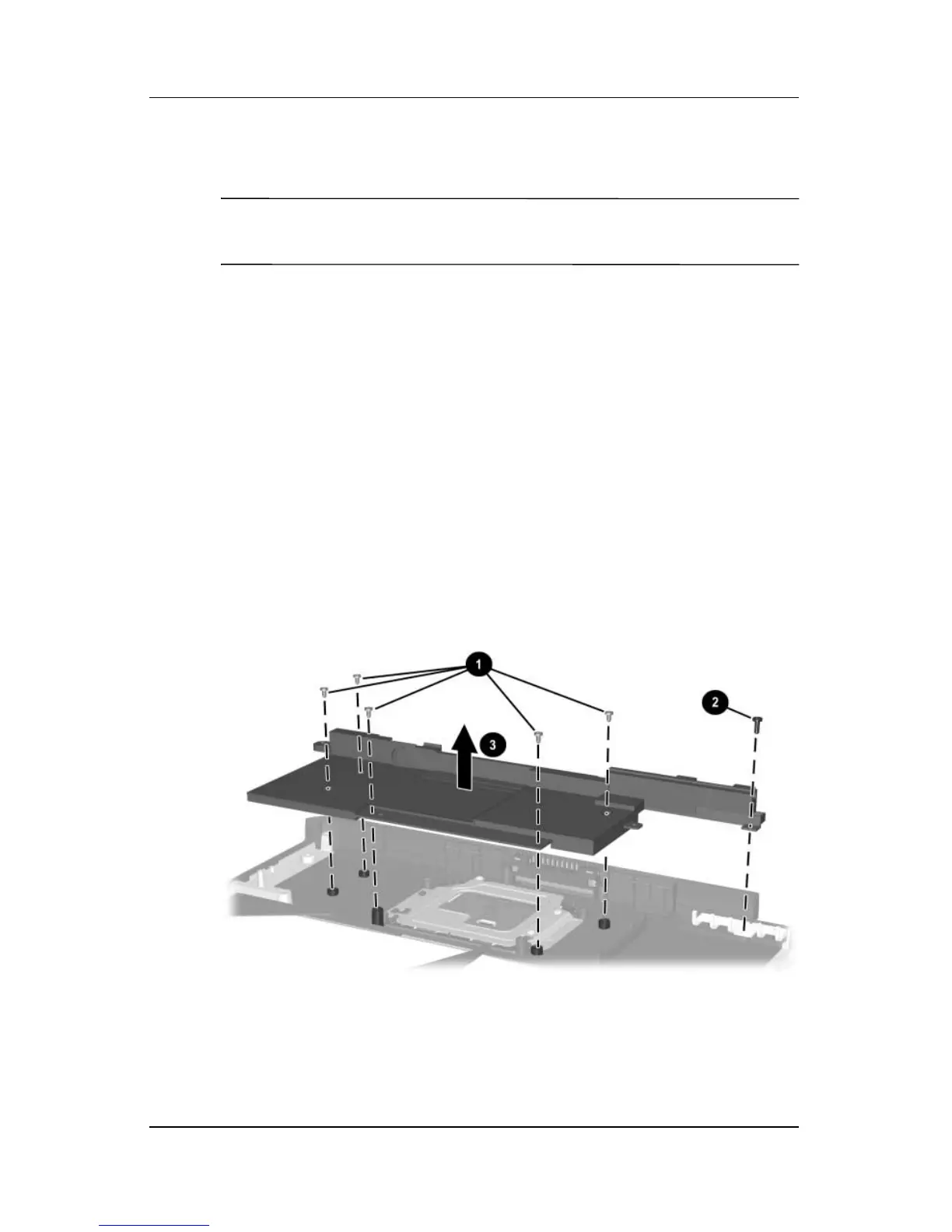

Removing the Speaker
Reverse the above procedure to install the speaker.
