5–26 Maintenance and Service Guide
Removal and Replacement Procedures
5. Disconnect the two antenna cables 1 from the board.
Make note of which cable connects to which terminal.
6. Spread the retaining tabs 2 that secure the Mini PCI
communications board to the socket. The free end of the
board rises.
7. Pull the board away from the socket at a 45-degree angle 3.

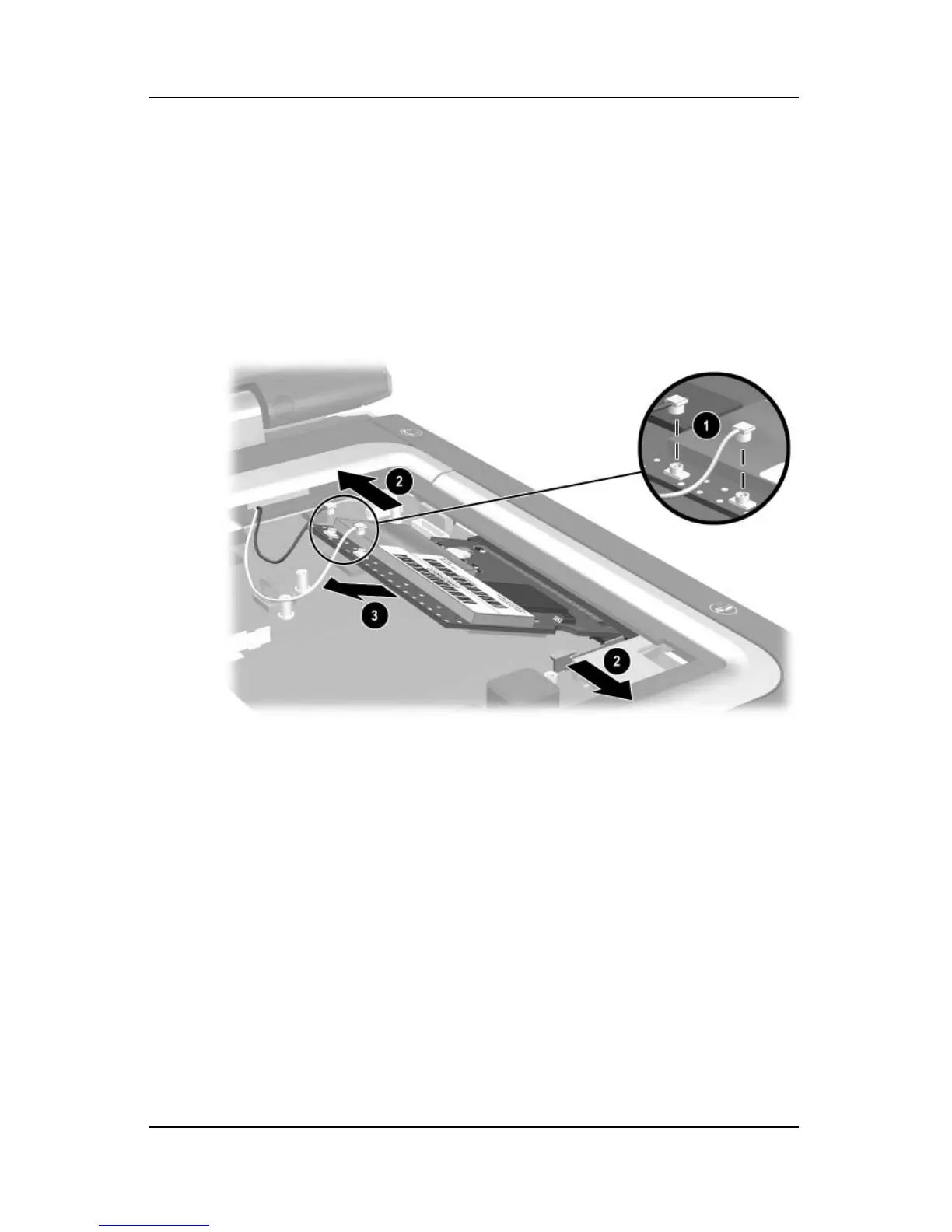

Removing the Mini PCI Communications Board
8. Remove the Mini PCI communications board.
Reverse the above procedure to install the Mini PCI
communications board.
