Service Reference Guide, dc5750 437963-001 7–5
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.5 Front D rive B ezels
1. Prepare the computer for disassembly (Section 7.1).
2. Remove the access panel (Section 7.3).

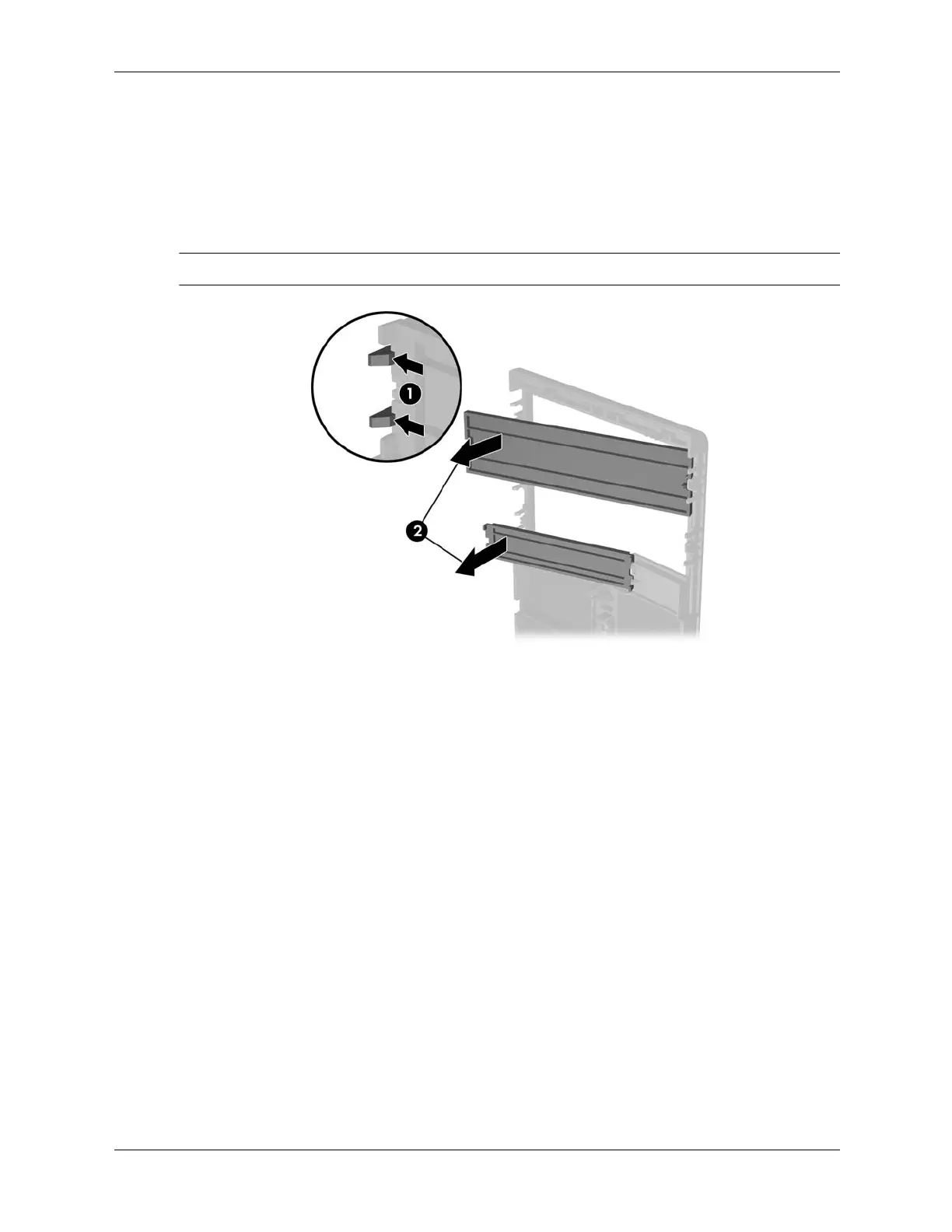

3. Remove the drive bezel by pushing the two retaining tabs that hold the bezel in place towards
the outer left edge of the bezel 1 and pull the bezel blank inwards to remove it 2.
✎
The drive bezel will vary depending on the computer configuration.
Install a bezel or a bezel blank by pushing the bezel into place.
