Service Reference Guide, dc5750 437963-001 6–5
Removal and Replacement Procedures— Microtower (MT) Chassis
6.4 Front Bezel
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel (Section 6.3).

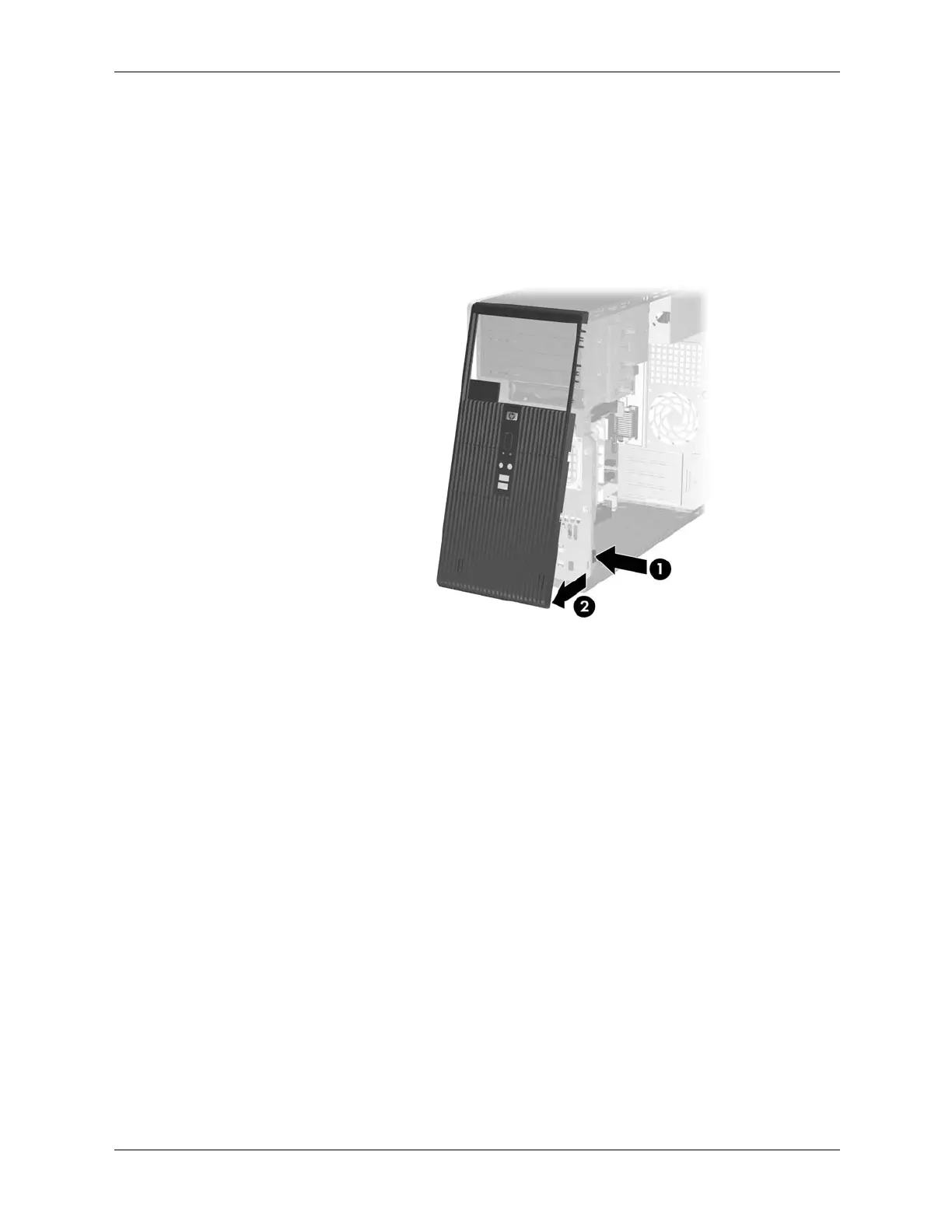

3. To remove the front bezel, press the green latch on the bottom right of the chassis 1 to
release the bottom of the bezel, then swing the bottom of the bezel away from the chassis 2
to release the top of the bezel.
