7–22 437963-001 Service Reference Guide, dc5750
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.11 Fan Shroud
1. Prepare the computer for disassembly (Section 7.1).
2. Remove the access panel (Section 7.3).

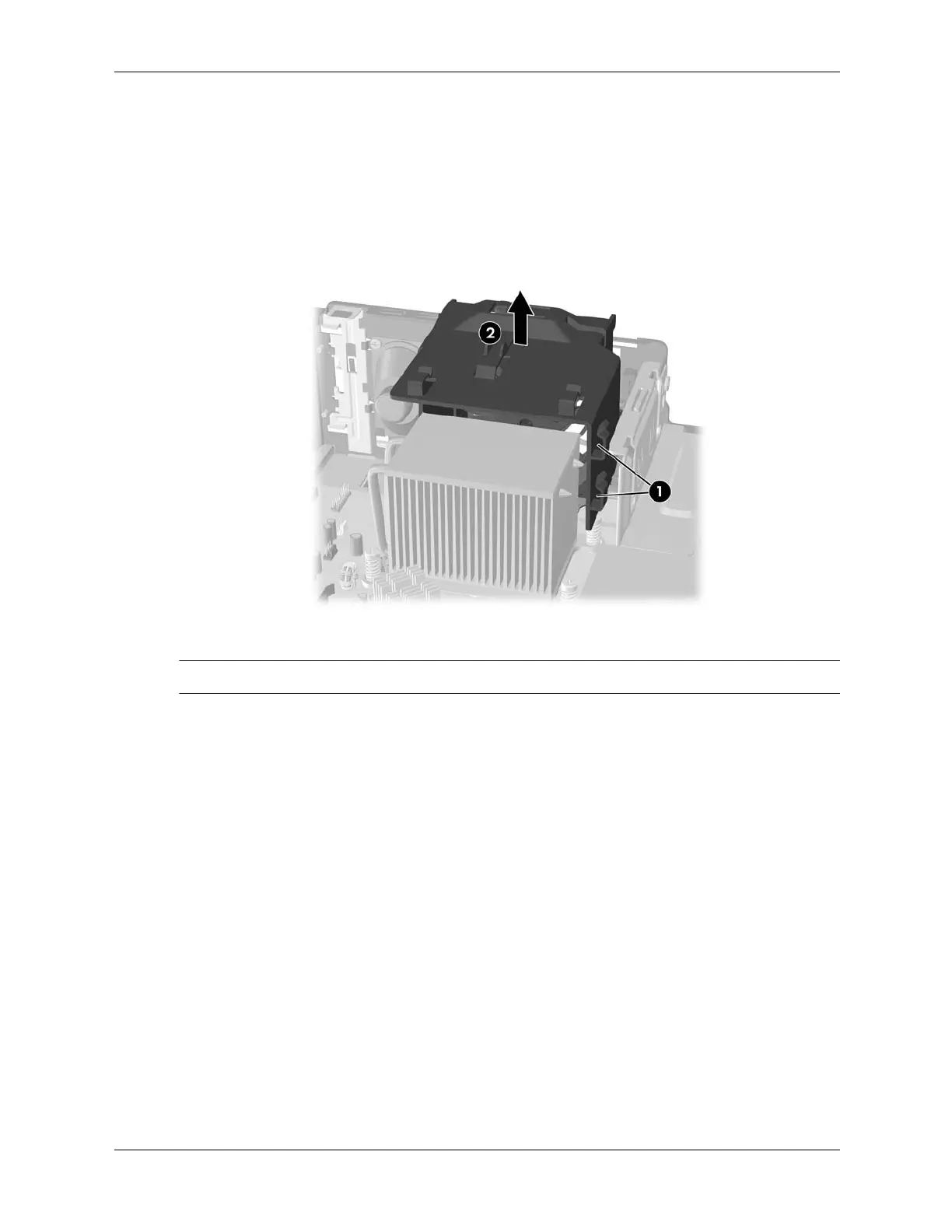

3. Remove all cables that are attached to the fan shroud 1.
4. Lift up on the fan shroud 2 to remove it from the computer.
To replace the shroud, reverse the removal procedures.
✎
When replacing the shroud, make sure that it does not get caught on any wires.
