HP COMPAQ DC5750 User Manual

Service Reference Guide, dc5750 437963-001 6–31
Removal and Replacement Procedures— Microtower (MT) Chassis
6.15 Speaker
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (Section 6.3).
3. Remove the hard drive cables from the plastic shroud at the front of the chassis and from the
hard drives.
4. Remove the shroud from the chassis (Section 6.11).
5. Disconnect the speaker wire from the system board connector.

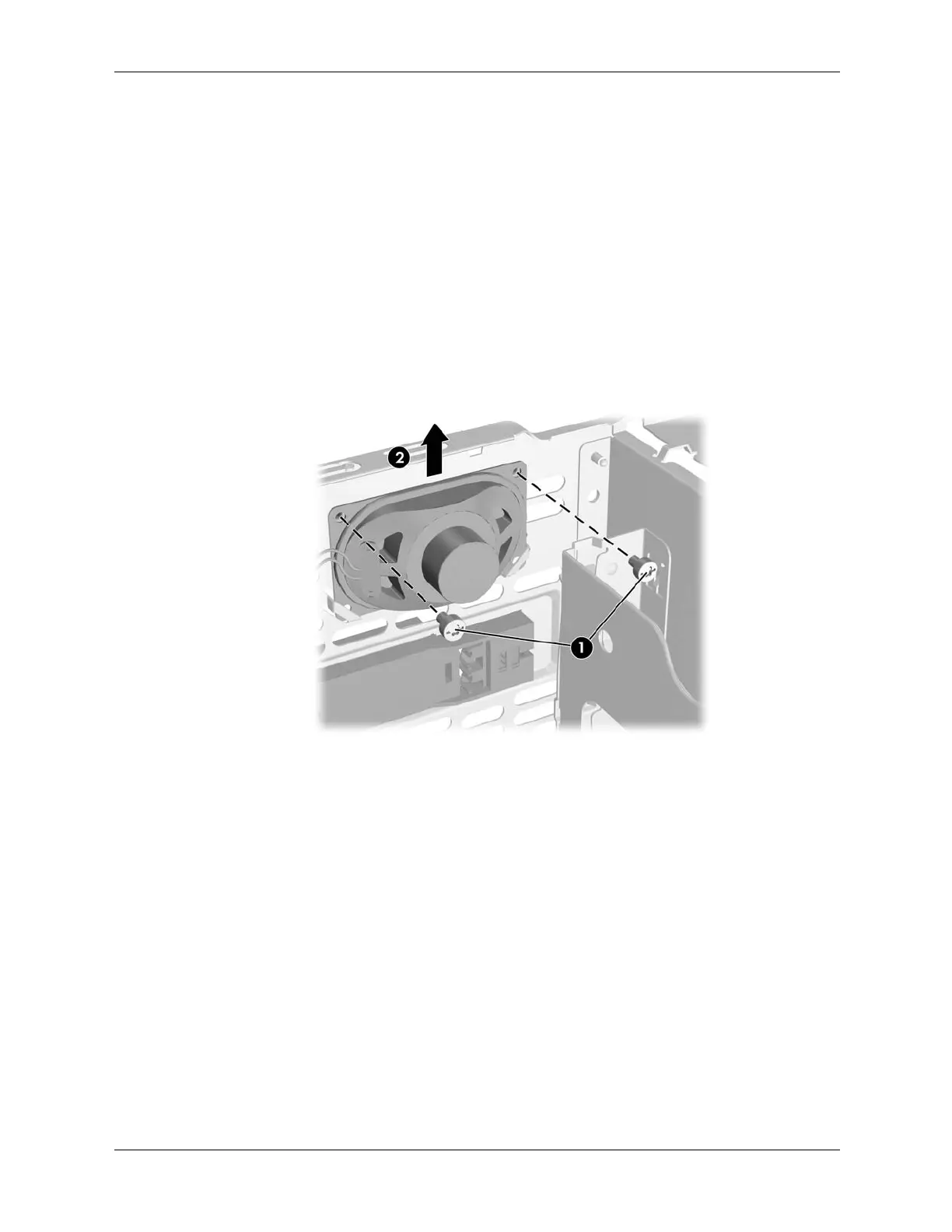

6. Remove the two screws 1 that secure the speaker to the chassis.
7. Remove the speaker by lifting it up 2 and out of the retaining clips.
To install the speaker, reverse the removal procedures making sure that the speaker wire is at the
upper left of the speaker when viewed from inside the chassis..

HP COMPAQ DC5750 Specifications

General

Processor Speed	Up to 2.8 GHz
Chipset	ATI Radeon Xpress 1150
Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Processor	AMD Athlon 64 X2 / AMD Sempron
Storage	SATA Hard Drive
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows XP Professional
Form Factor	Small Form Factor or Microtower
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
