HP COMPAQ DC5750 User Manual

6–6 437963-001 Service Reference Guide, dc5750
Removal and Replacement Procedures— Microtower (MT) Chassis

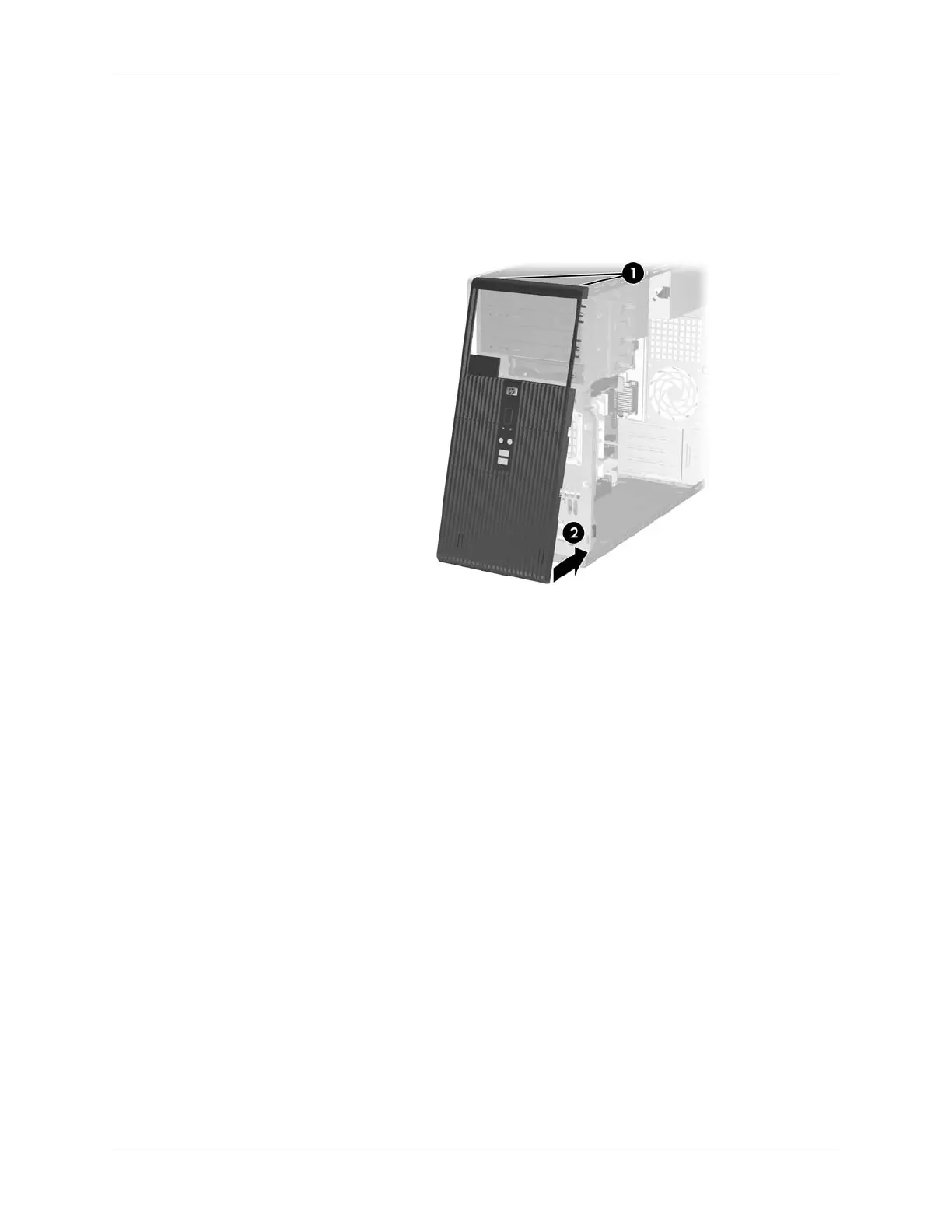

To reinstall the front bezel:
1. Position the chassis in the upright position.
2. Insert the two hooks on the top of the bezel into the rectangular holes on the chassis 1 then
rotate the bottom of the bezel onto the chassis 2 so that the bottom two hooks on the bezel
snap into place.

HP COMPAQ DC5750 Specifications

General

Processor Speed	Up to 2.8 GHz
Chipset	ATI Radeon Xpress 1150
Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Processor	AMD Athlon 64 X2 / AMD Sempron
Storage	SATA Hard Drive
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows XP Professional
Form Factor	Small Form Factor or Microtower
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
