Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

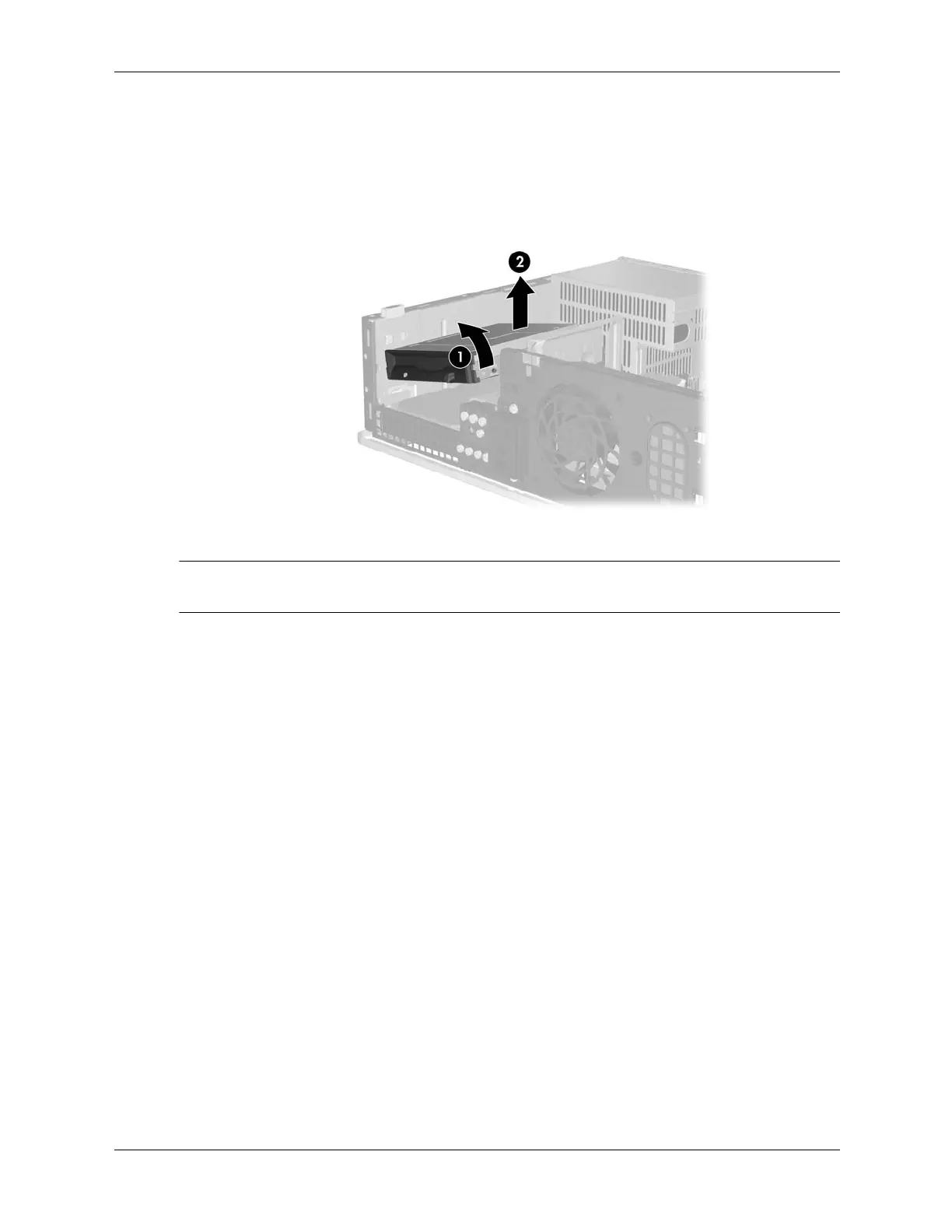

7. Tilt the left side of the drive down slightly 1 so that the top lip of the guide screws are not
caught behind the metal frame, the pull the drive out of the drive bay 2.
To replace the drive, reverse the removal procedure.
✎
When replacing the drive, transfer the four metric screws from the old drive to the new one. The
screws take the place of drive rails.
