Service Reference Guide, dc5750 437963-001 7–15
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

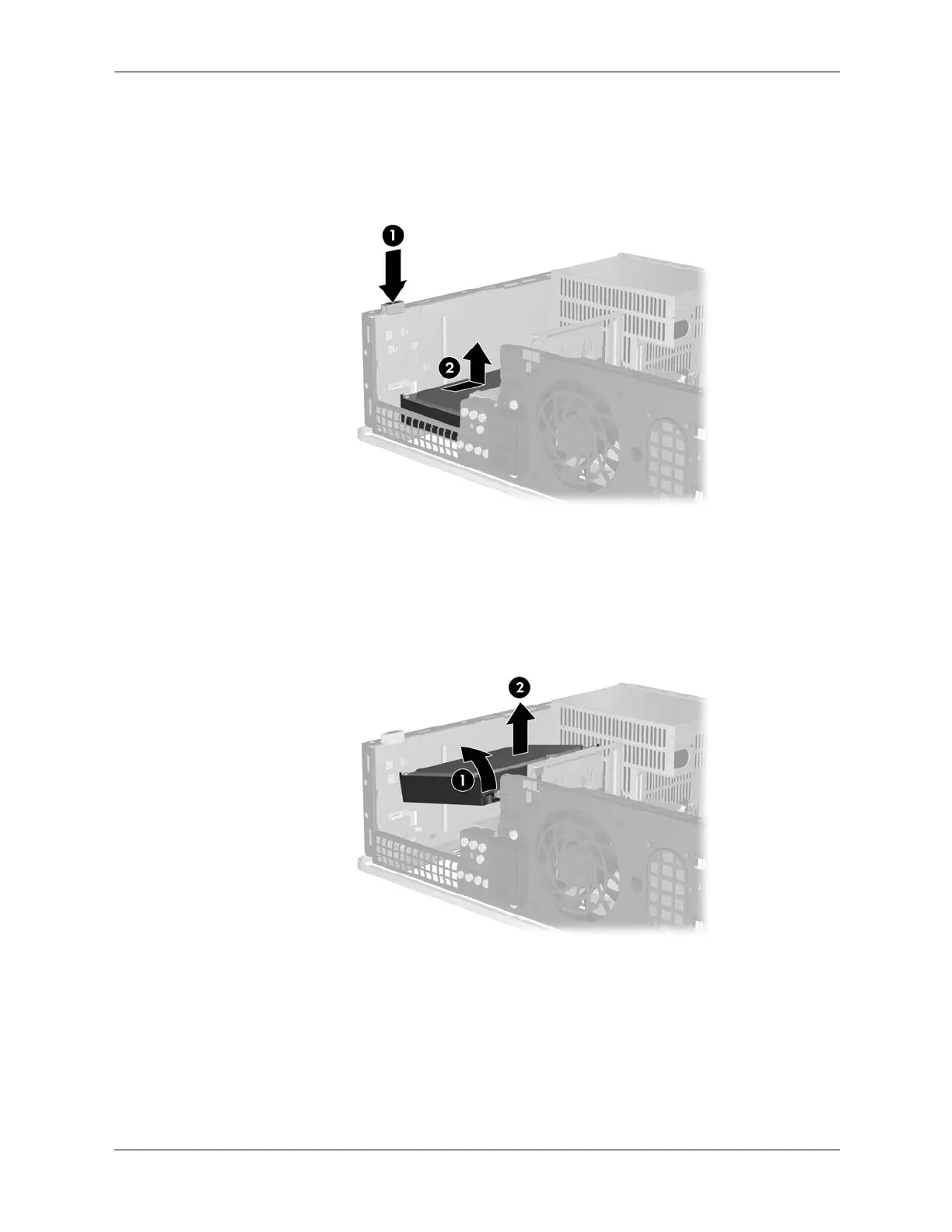

7. Press down on the lever to the left of the hard drive 1, slide the drive back until it stops, and
lift it straight up 2.
8. Tilt the left side of the hard drive down slightly 1 so that the top lips of the guide screws are
not caught behind the metal frame, then pull the drive out of the drive bay 2.
To install a hard drive, reverse the removal procedure.

HP COMPAQ DC5750 Specifications

General

Processor Speed	Up to 2.8 GHz
Chipset	ATI Radeon Xpress 1150
Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Processor	AMD Athlon 64 X2 / AMD Sempron
Storage	SATA Hard Drive
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows XP Professional
Form Factor	Small Form Factor or Microtower
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
