7–20 437963-001 Service Reference Guide, dc5750
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

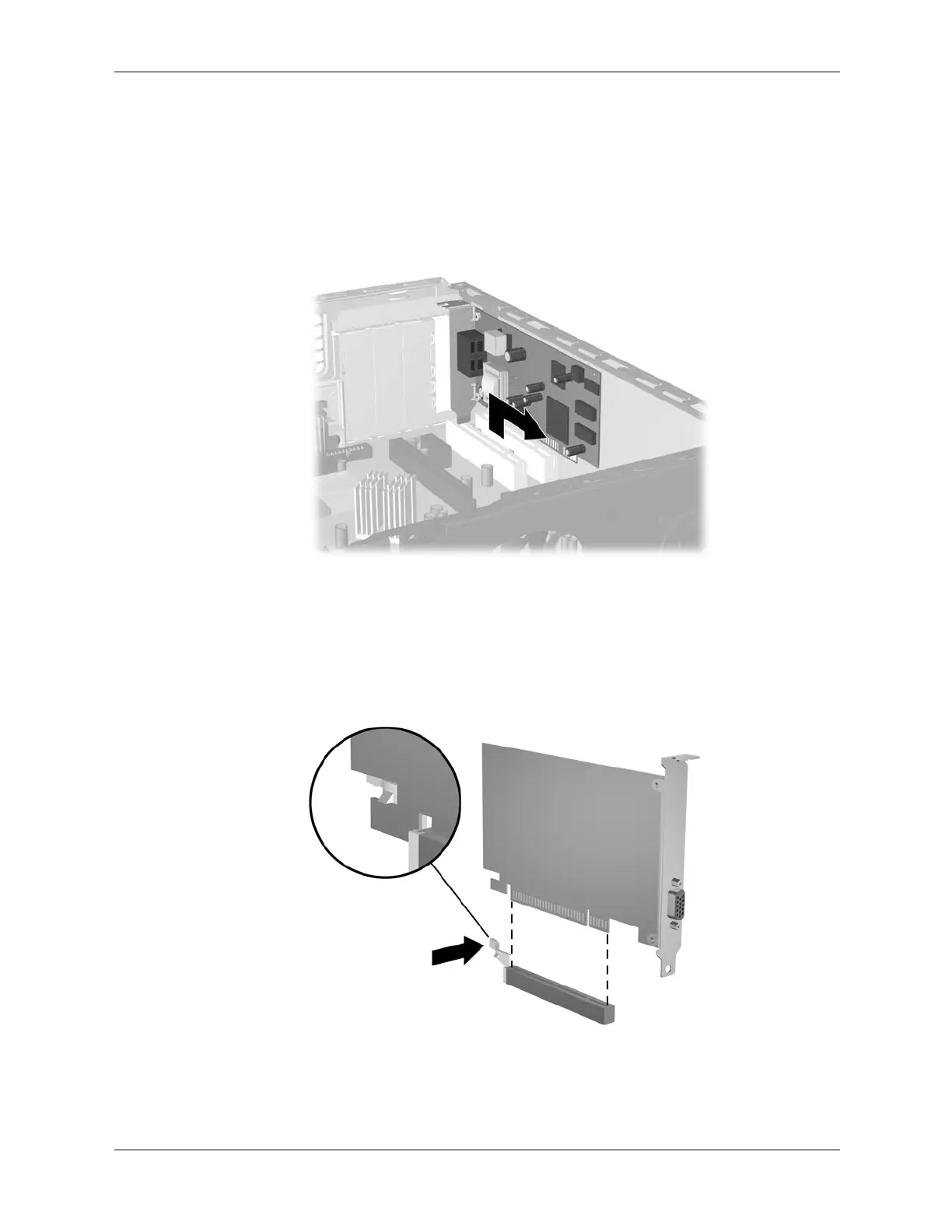

6. If you are removing an existing PCI card, hold the card at each end, andcarefully rock it back
and forth until the connectors pull free from the socket. Pull the card straight up from the
socket then back towards the inside of the chassis to release it from the chassis frame. Be
sure not to scrape the card against the other components.
7. If you are removing a PXCI Express x16 crd, pull the retention arm on the back of the
expansion socket away from the card and carefully rock it back and forth until the connectors
pull free from the socket. Pull the card straight up from the socket then back towards the
inside of the chassis to release it from the chassis frame. Be sure not to scrape the card
against the other components..
To complete the installation, reverse the removal procedures.

HP COMPAQ DC5750 Specifications

General

Processor Speed	Up to 2.8 GHz
Chipset	ATI Radeon Xpress 1150
Memory	Up to 4 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Processor	AMD Athlon 64 X2 / AMD Sempron
Storage	SATA Hard Drive
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Windows XP Professional
Form Factor	Small Form Factor or Microtower
USB Ports	8 USB 2.0 (2 front, 4 rear, 2 internal)
