Service Reference Guide, dc5750 437963-001 6–19
Removal and Replacement Procedures— Microtower (MT) Chassis

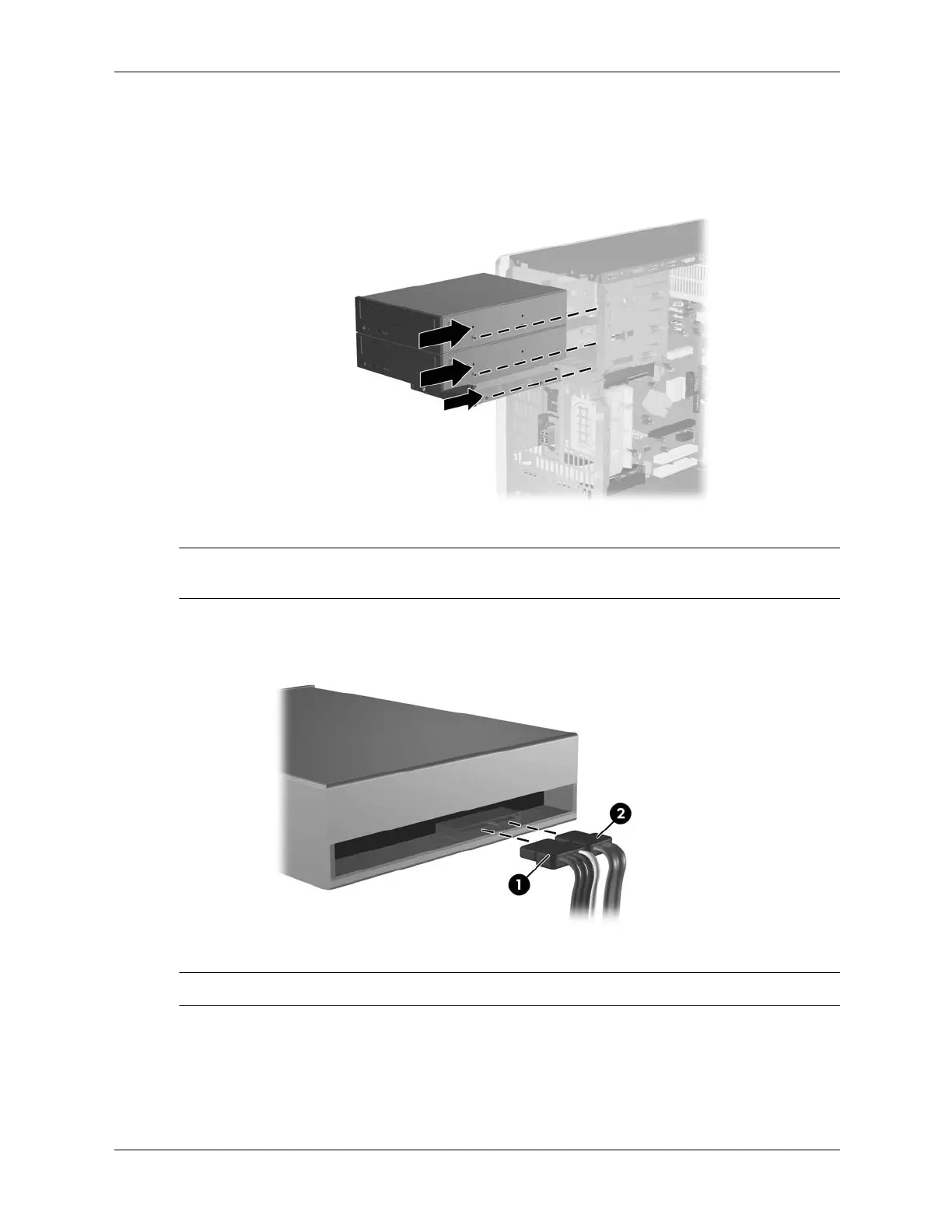

2. Slide the drive into the drive bay, making sure to align the guide sctrews with the guide slots,
until the drive snaps into place.
3. Reconnect the power and data cables to the drive as shown in the following illustrations.
✎
Refer to Chapter 4, “Serial and Parallel ATA Drive Guidelines and Features” for information on
attaching the cabling to get optimum performance.
Connecting Optical Drive Cables
✎
Some products use straight cable connectors while others use right angle connectors.
