HP Compaq dc7100 MT User Manual

Hardware Reference Guide www.hp.com 2–5
Hardware Upgrades

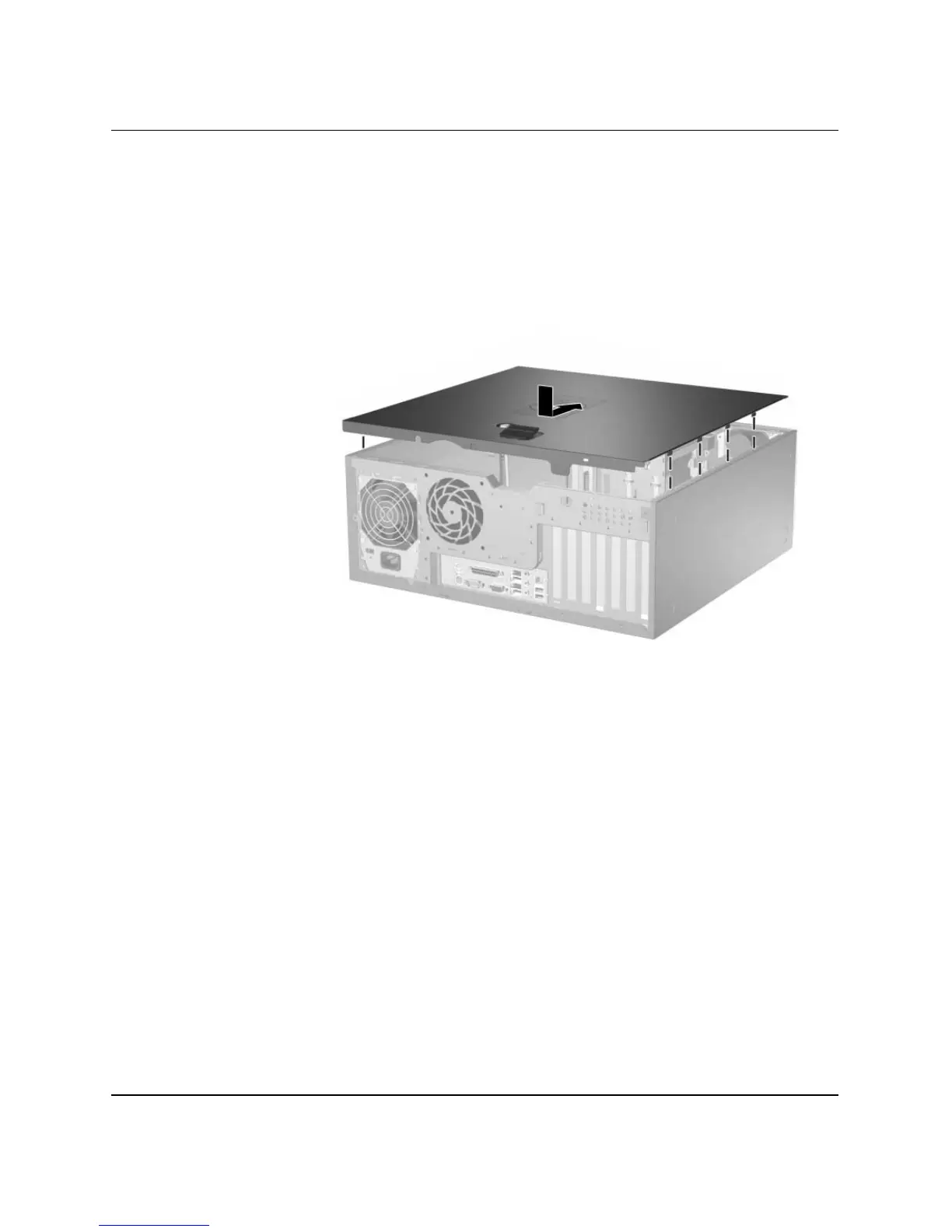

Replacing the Computer Access Panel
1. Lay the computer down on its large base for greater stability.
2. Align the tabs on the access panel with the slots on the chassis
and slide the access panel forward until it locks into place.
Replacing the Computer Access Panel
3. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.

HP Compaq dc7100 MT Specifications

General

Graphics	Integrated Intel Graphics Media Accelerator 900
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Form Factor	Microtower
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR2 SDRAM
Storage	40 GB to 160 GB SATA
Optical Drive	DVD-ROM
Ports	USB 2.0, serial, parallel, audio in/out
Expansion Slots	1 PCI Express x16
Audio	Integrated AC'97 audio
