HP Compaq dc7100 MT User Manual

Hardware Reference Guide www.hp.com 2–37
Hardware Upgrades
Removing a Drive from the MultiBay
1. Remove any removable media, such as a CD, from the drive.
2. Before removing an optical or drive, stop the drive using the
Safely Remove Hardware icon on the Windows task bar.
3. If you are not hot-swapping a CD-ROM drive, exit all software
applications, shut down the operating system software, and turn
off the computer.
4. Remove the MultiBay security screw, if it has been installed.
Refer to the “Uninstalling the MultiBay Security Screw” section
for instructions on removing the MultiBay security screw.

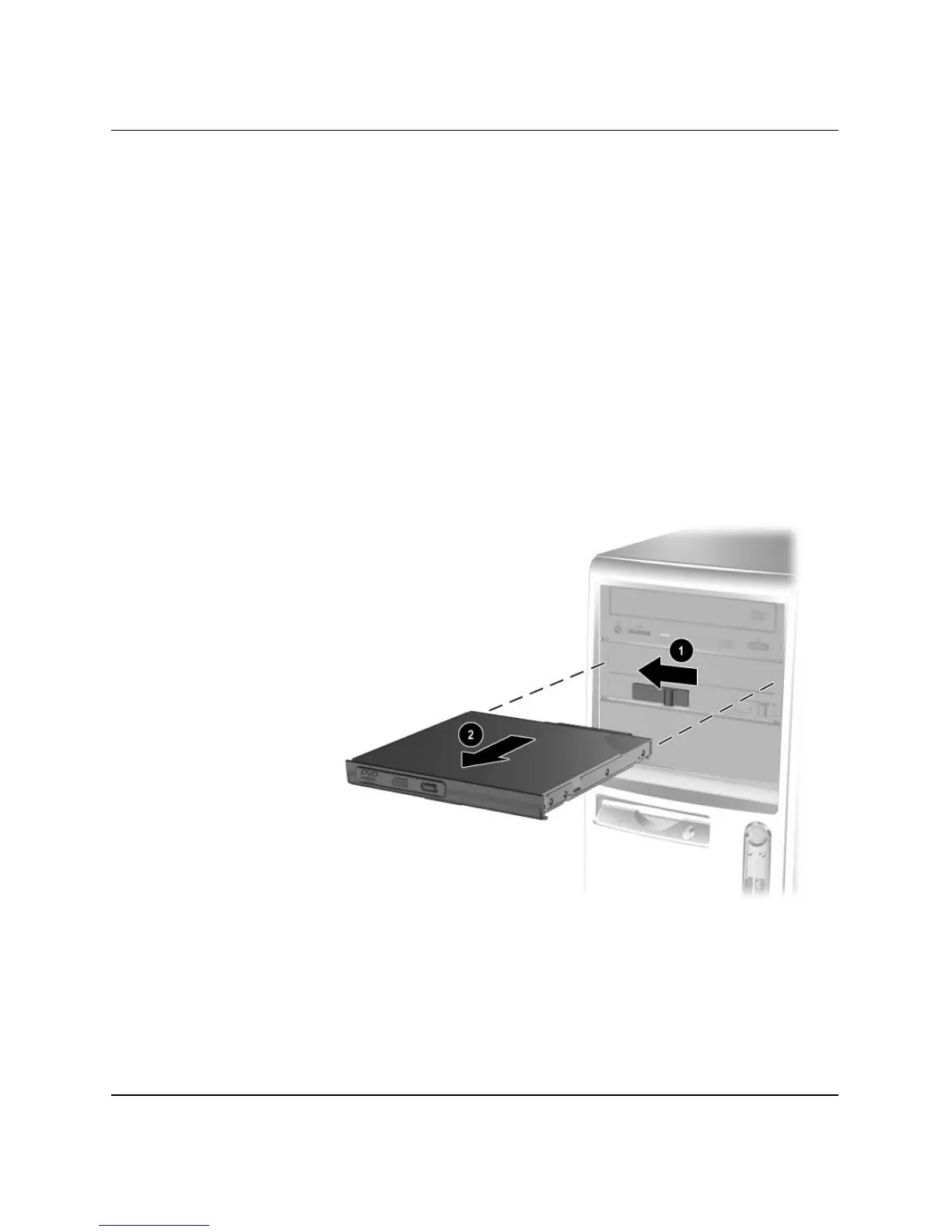

5. Slide the eject lever 1 to the left to eject the drive from the
MultiBay 2.
Removing a Drive from the MultiBay

HP Compaq dc7100 MT Specifications

General

Graphics	Integrated Intel Graphics Media Accelerator 900
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Form Factor	Microtower
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR2 SDRAM
Storage	40 GB to 160 GB SATA
Optical Drive	DVD-ROM
Ports	USB 2.0, serial, parallel, audio in/out
Expansion Slots	1 PCI Express x16
Audio	Integrated AC'97 audio
