Hardware Upgrades
Inserting a Drive into the MultiBay
1. Remove any removable media, such as a CD, from the drive.
2. If you are not hot-swapping a CD-ROM drive, exit all software
applications, shut down the operating system software, and turn
off the computer.
3. With the top of the drive facing up and the drive connector facing
the computer, slide the drive into the MultiBay and push firmly to
ensure that the electrical connector is properly seated.

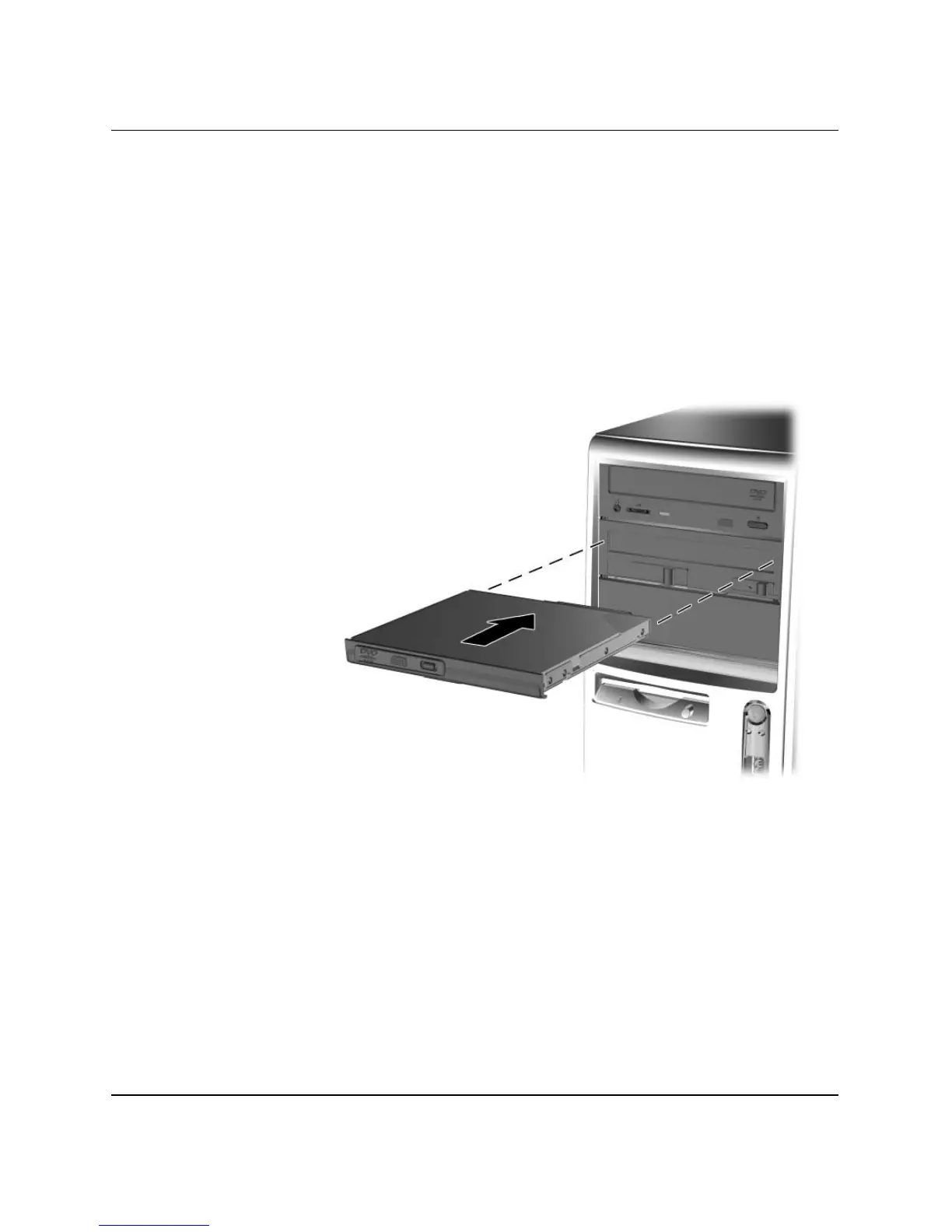

Inserting a Drive into the MultiBay
4. After inserting an optical drive while the computer is turned on,
restart the computer to ensure the optical drive functions correctly
if it uses recording, backup, or video playback software
applications.
5. Install the MultiBay security screw, if desired. Refer to
“Uninstalling the MultiBay Security Screw” for more
information.
If the device does not start, ensure that the necessary device drivers
are installed on the system. If they are not available, they may be
downloaded, at no cost, from the HP Web site at
www.hp.com.

HP Compaq dc7100 MT Specifications

General

Graphics	Integrated Intel Graphics Media Accelerator 900
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Form Factor	Microtower
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR2 SDRAM
Storage	40 GB to 160 GB SATA
Optical Drive	DVD-ROM
Ports	USB 2.0, serial, parallel, audio in/out
Expansion Slots	1 PCI Express x16
Audio	Integrated AC'97 audio
