HP Compaq dc7100 MT User Manual

Hardware Reference Guide www.hp.com 2–25
Hardware Upgrades
✎
If you are installing a third optional drive in the bottom 5.25-inch
drive bay, you must also install an expansion card with an IDE
controller and data cable (not supplied) because the secondary IDE
controller supports only two drives.
✎
If you are installing a third optional drive, you may need to remove
the strap that bundles the extra power connectors.

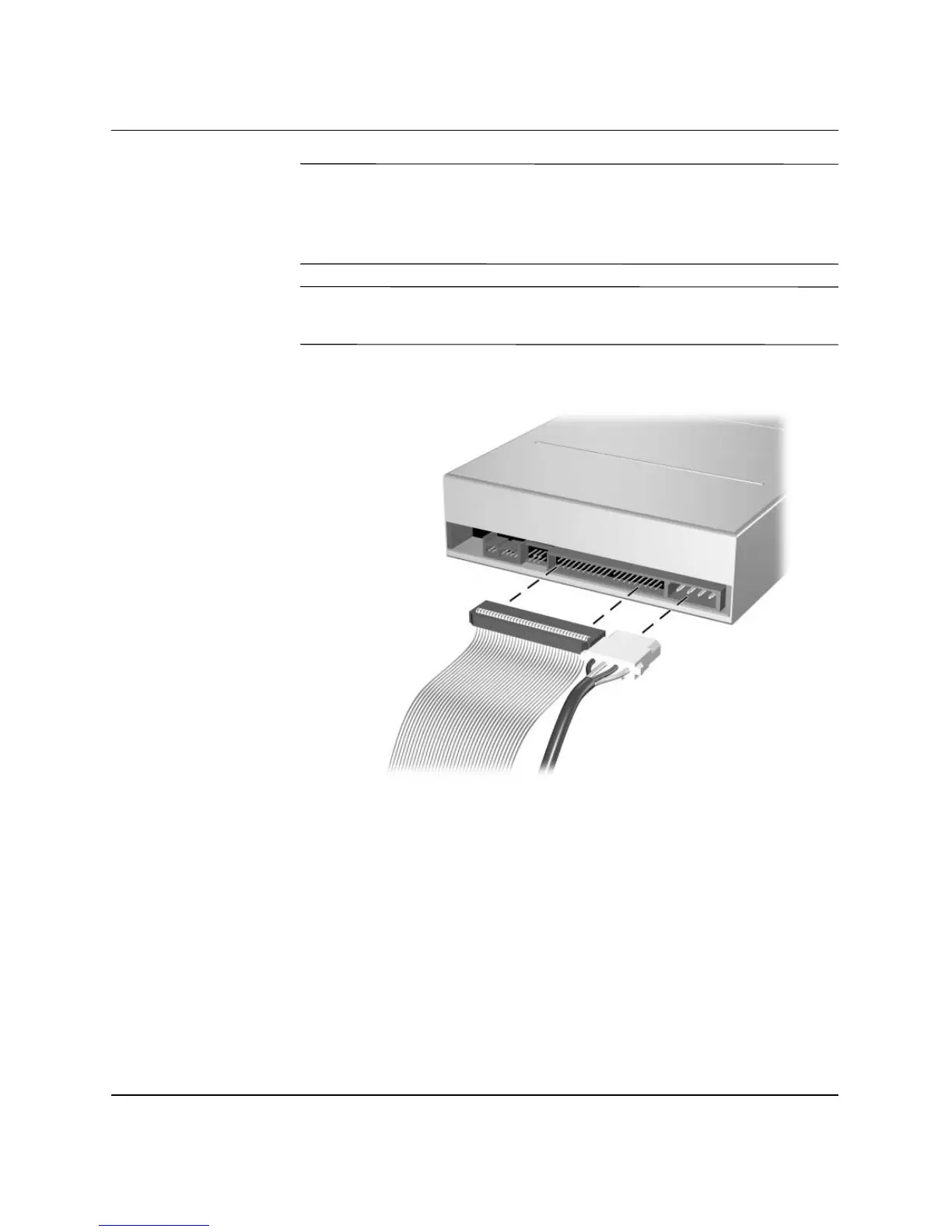

6. Connect the power and signal cables to the rear of the drive.
Connecting the Drive Cables
7. Remove the appropriate bezel blank from the subpanel inside the
front bezel. See the “Removing Bezel Blanks” section for more
information.
8. Replace the computer access panel and front bezel.
9. If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the Smart Cover Sensor.
10. Reconfigure the computer, if necessary. Refer to the Computer
Setup (F10) Utility Guide on the Documentation CD for
instructions about using Computer Setup.

HP Compaq dc7100 MT Specifications

General

Graphics	Integrated Intel Graphics Media Accelerator 900
Network	Integrated Broadcom NetXtreme Gigabit Ethernet
Operating System	Windows XP Professional
Form Factor	Microtower
Processor	Intel Pentium 4
Chipset	Intel 915G Express
Memory	Up to 4 GB DDR2 SDRAM
Storage	40 GB to 160 GB SATA
Optical Drive	DVD-ROM
Ports	USB 2.0, serial, parallel, audio in/out
Expansion Slots	1 PCI Express x16
Audio	Integrated AC'97 audio
